Repair: MT3608 boost converter
Автор: Maxint R&D
Загружено: 2017-07-30
Просмотров: 48356

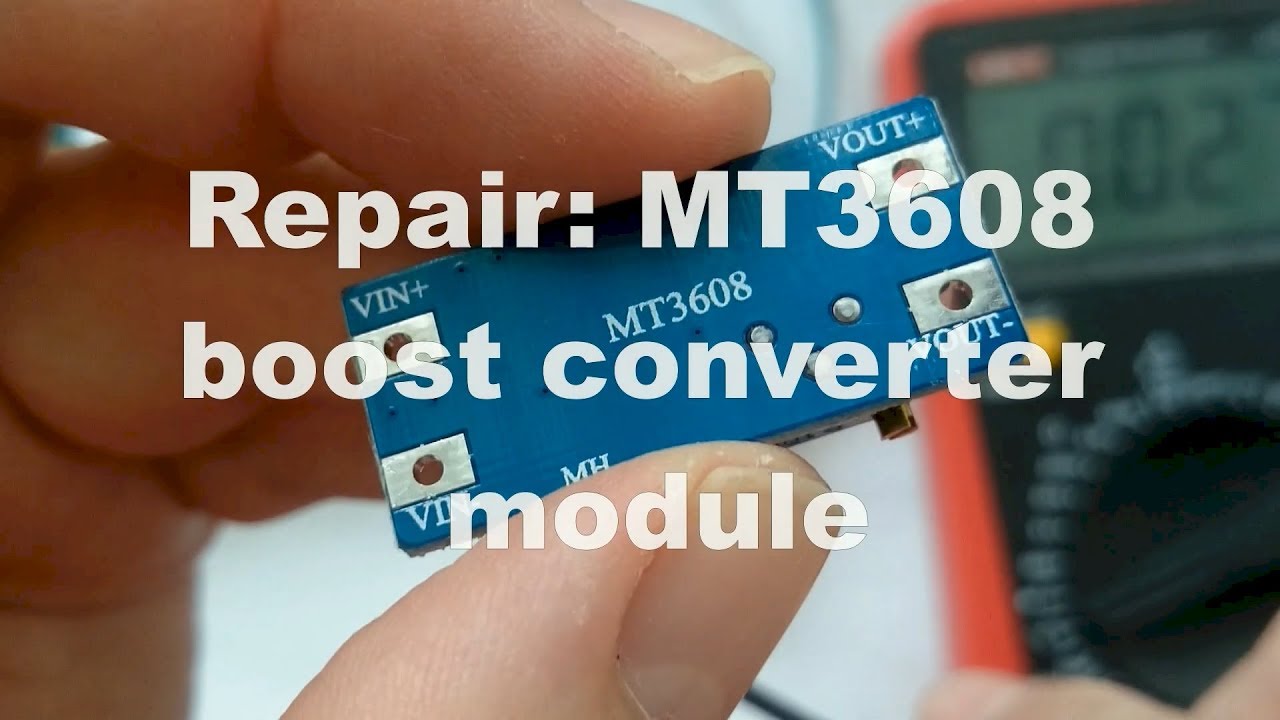

Somewhere while making the 9V USB rechargeable battery of my previous video (see • Made: USB Rechargeable 9V Lithium-ion batt... ) , I managed to kill the boost converter. The module doesn't output the required voltage and the MT3608 chip on the damaged module gets very hot.
In this short video you can see how I repaired the module by replacing the chip (for less than 10 cents, see link below):
Video index:
0:00 - Introduction
0:24 - Testing the faulty module
0:58 - What may be the problem
1:37 - Buying replacement chips
1:56 - Trying a new desoldering method
2:25 - Back to using the iron
2:33 - Soldering the replacement chip
2:42 - Testing the repaired module
2:55 - Thank you and don't forget to subscribe!
Links and references:
Buy chip on AliExpress: http://s.click.aliexpress.com/e/QZfqjAI
Making a mini boost converter using the MT3608 and SMD components: • Made: Mini MT3608 boost converter using SM...
Making a 9V USB rechargeable Li-ion battery: • Made: USB Rechargeable 9V Lithium-ion batt...
GreatScott about the TP5410 LiPo Charger & Boost Converter: • 2$ LiPo Charger & Boost Converter? || TP54...
someone having problems with MT3608 modules: • Caught on FIRE?? MT3608 DC DC step up boos...
MT3608 datasheet: https://www.olimex.com/Products/Bread...
Wikipedia about static electricity: https://en.wikipedia.org/wiki/Electro...
Wikipedia about Mosfet: https://en.wikipedia.org/wiki/MOSFET
