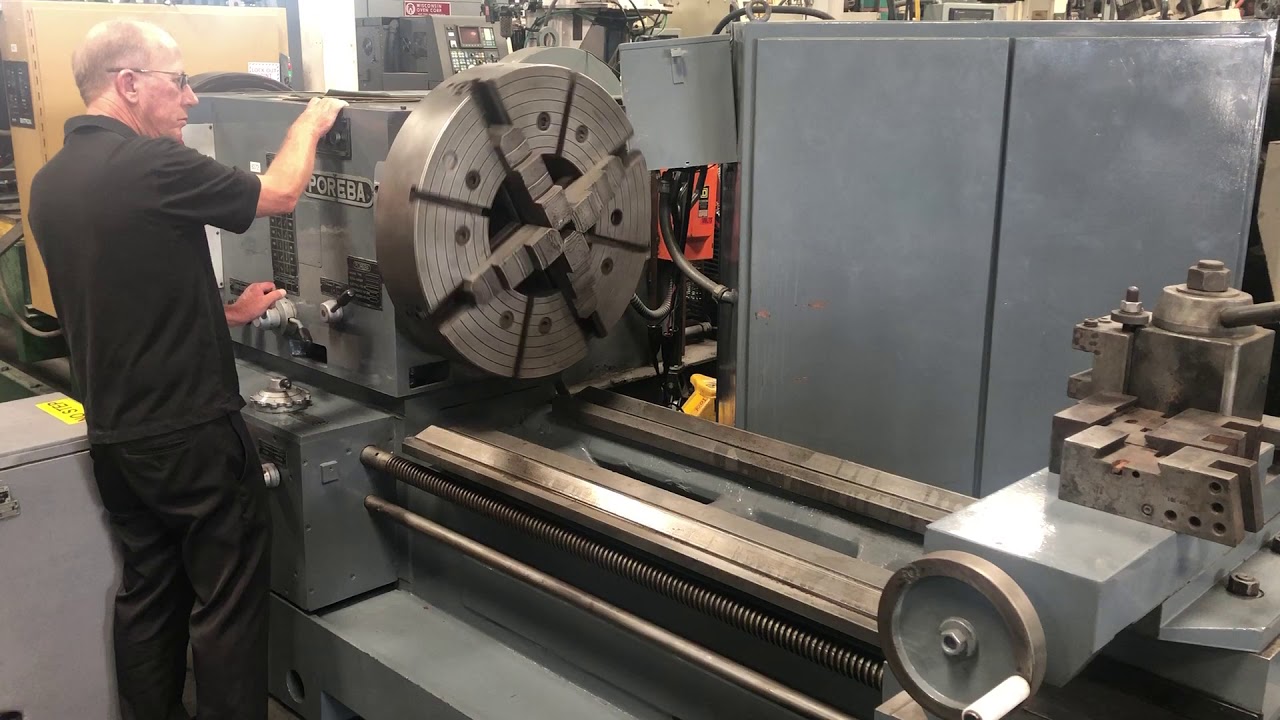

Poreba - Oil Field 12" Hollow Spindle Engine Lathe | 36" x 120"
Stock #6372

Basic Information
Model: TPL-90/3M
Manufacturer: Poreba
Serial #: 0080-1197-021
Location: Huntington Park, CA
Year Built: 1980

Specifications
Swing Over Bed: 36"
Swing Over Carriage: 25 1/2"
Distance Between Centers: 120"
Spindle Speeds (36): 5- 250 RPM
Spindle Nose: A1- 20
Hole Thru Spindle: 12 1/2"
Threads:
Inch (54): 1/2- 16 TPI
Metric (72): 1- 60 MM
Feeds (60): 0.0021"- 0.248"
Cross Slide Travel: 18 1/2"
Tailstock Quill Taper: #6 MT
Tailstock Quill Trave: 11 3/4"
Dimensions (L x W x H): 18' x 75" x 68"
Weight: 18,000 Lbs.

Equipped with
28" 4 Jaw Chuck (Front)
24" 4 Jaw Chuck (Rear)
Taper Attachment
Tool Post
4 Way Rapid Traverse
Horsepower: 30
