Shore pulling, also known as shore approach or shore pull-in, is a critical operation in offshore pipelaying where the pipeline reaches the shore from the offshore installation site. This process is essential for connecting the offshore pipeline to onshore facilities or to transition the pipeline from the seabed to onshore infrastructure. Shore pulling operations require careful planning, precise execution, and adherence to safety and environmental standards to ensure the successful connection of offshore pipelines to onshore infrastructure. Here’s an overview of the shore pulling operation:

1. Planning and Preparation
Route Selection: Engineers carefully plan the route of the pipeline from the offshore installation site to the shore, considering factors such as water depth, seabed conditions, environmental impact, and proximity to existing infrastructure.

Site Preparation: Before the shore pulling operation begins, the onshore area where the pipeline will be pulled ashore is prepared. This may involve clearing the area, setting up equipment, and ensuring access for the pipeline.

2. Pipeline Preparation
Pipeline End Preparation: The end of the pipeline that will be pulled ashore is prepared for the shore pulling operation. This typically involves attaching a pulling head or pulling assembly to the end of the pipeline. The pulling head is designed to withstand the forces exerted during the pulling operation.

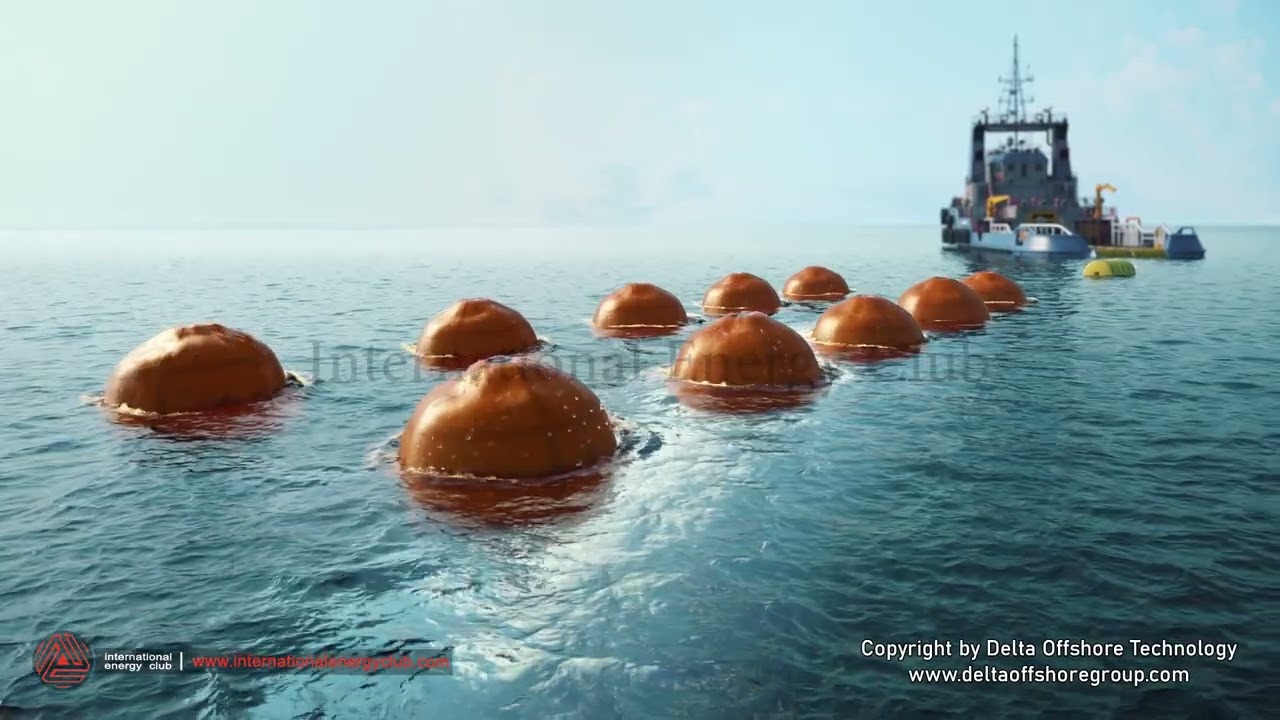

Bend Restrictors: Special bend restrictors or buoyancy modules may be attached to the pipeline to prevent excessive bending and protect the pipeline during the pulling process.

3. Pulling Equipment
Winches: Heavy-duty winches are used onshore to pull the pipeline from the offshore location towards the shore. These winches are often powerful and capable of exerting significant pulling force to move the pipeline through the water and onto the shore.

Pulling Wire/Chain: Strong pulling wires or chains are attached to the pulling head and connected to the winches. These wires or chains transmit the pulling force from the winches to the pipeline.

4. Pulling Process
Monitoring and Control: The pulling operation is carefully monitored to ensure that the pipeline moves smoothly and does not experience excessive stress or bending. Tension monitoring systems may be used to measure the force applied to the pipeline during pulling.

Alignment: As the pipeline approaches the shore, it may need to be guided and aligned with the onshore receiving facilities, such as a pipeline termination manifold or a landfall pit.

5. Termination and Connection
Pipeline Termination: Once the pipeline reaches the shore, it is securely terminated at the onshore facilities. This may involve welding the pipeline to the onshore infrastructure or connecting it using mechanical connectors.

Testing: Pressure testing and inspection are typically conducted to ensure the integrity of the shore pull-in connection and the entire pipeline system.

6. Post-Pulling Activities
Backfilling and Stabilization: If necessary, the area around the shore pull-in point may be backfilled and stabilized to protect the pipeline and ensure long-term stability.

Commissioning: After successful connection and testing, the pipeline is commissioned and prepared for operation, which may involve flushing and purging procedures.

Considerations and Challenges
Environmental Factors: Environmental regulations and considerations play a significant role in planning and executing shore pulling operations, especially in sensitive coastal areas.

Safety: Safety protocols are crucial due to the high forces involved in pulling the pipeline ashore and the presence of heavy equipment and personnel.

Coordination: Effective coordination between offshore and onshore teams, as well as with regulatory authorities and stakeholders, is essential for the success of shore pulling operations.
