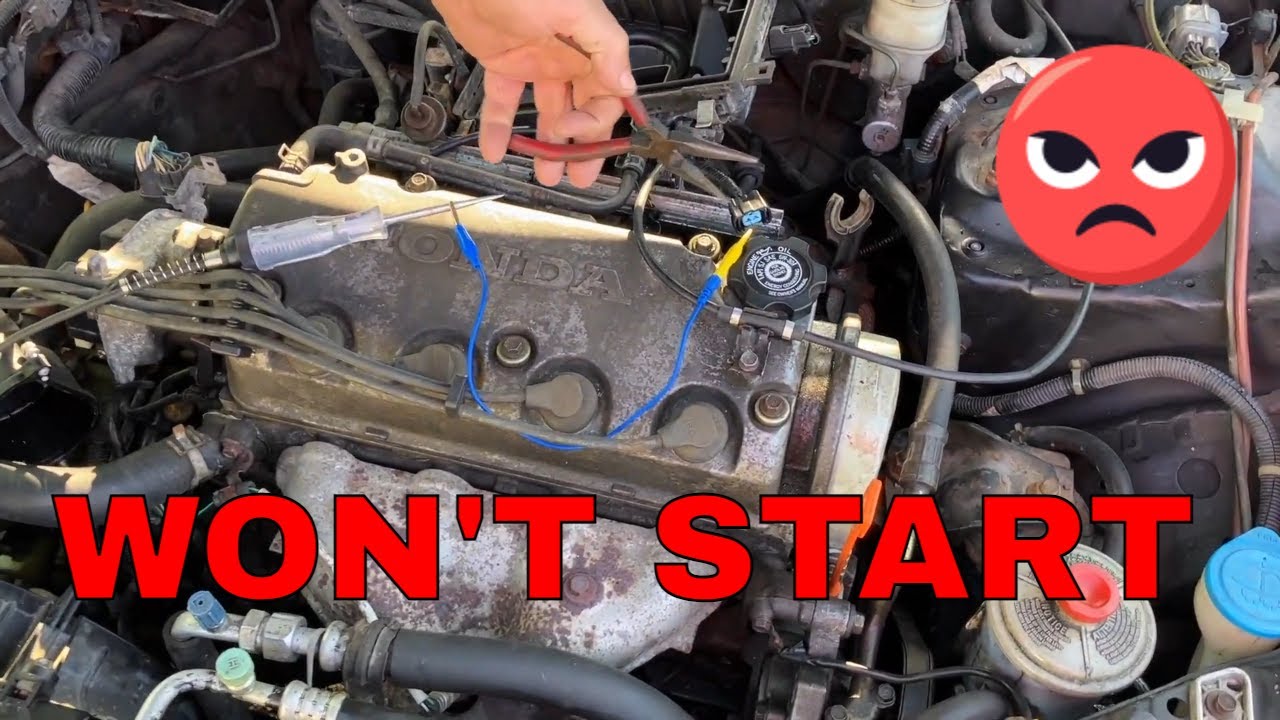

99 Honda Civic No Spark Diagnosis with a Test Light

I will show you how to troubleshoot the entire ignition system, including cam and crank signals, ECU to igniter control and igniter to ignition coil control using a simple test light. A follow up test will be done with a small single channel lab scope, showing yet another way to verify the same condition.

Engine Performance Diagnostics chapter 22

Symptoms
no start

Fix
replace faulty ignition coil

Tests shown
how to test for spark and injector pulse with an incandescent test light
using injector pulse as a guide for good cam and crank signals
how to test for igniter control of the ignition coil
how to isolate the ignition coil to test the igniter itself
how to perform a primary coil current ramp test with a lab scope (uScope) and an inductive low amp probe
