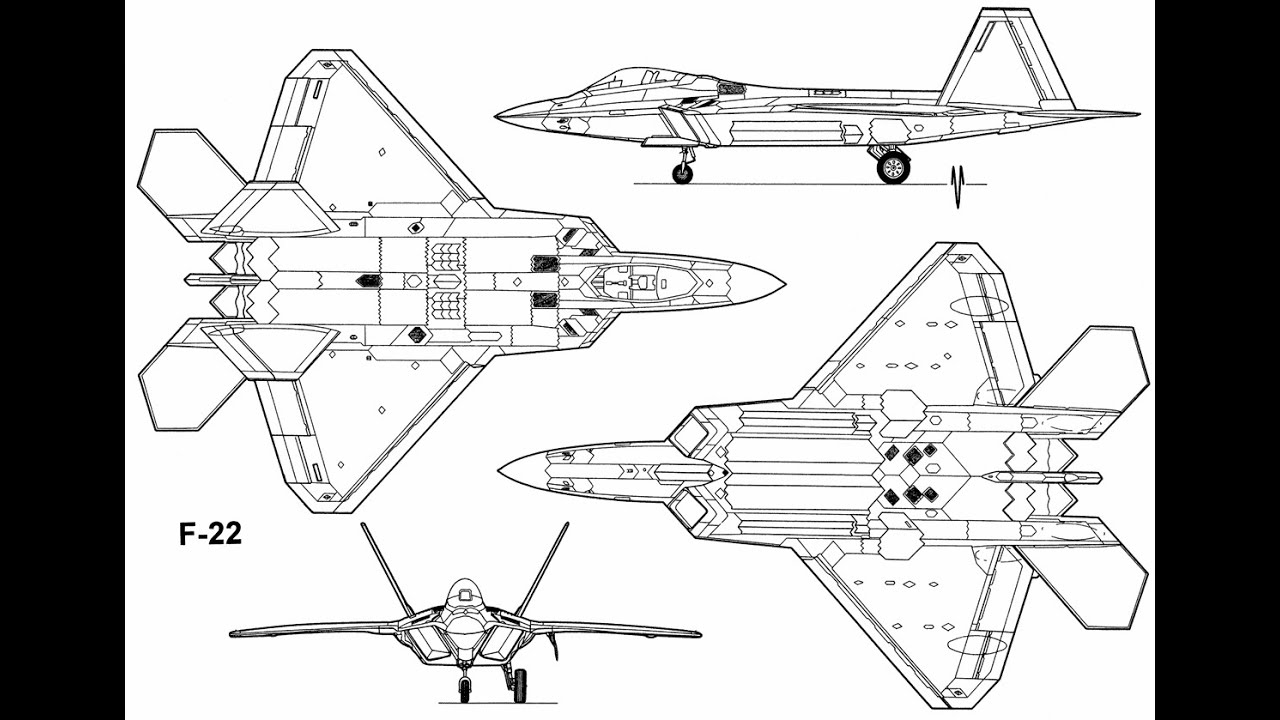

This penplotter video showcases a technical drawing of an F-22 blueprint, meticulously rendered as clean, layered linework. The drawing machine precisely translates reference images into plot-ready plates through an algorithmic process. This mechanical drawing highlights the intricate details of the aircraft.
pen plotting art and pen plotter drawing meet technical drawing in this high-contrast plotter art build - an F-22 blueprint plate rendered as clean, layered linework. This piece is plotted as true vector paths (SVG) so every edge, panel, and contour is machine-precise. You'll see the full multi-view layout emerge through deliberate draw order and consistent stroke control.
This plot is part of an ongoing practice: taking reference-style drawings and rebuilding them into plot-ready plates that feel timeless - like traditional drafting, executed by a modern motion system. The goal is repeatable accuracy, clean geometry, and a calm process over shortcuts. Each iteration improves path hygiene, reduces wasted travel, and strengthens the "technical document" look.
Tools and materials used for this plot:
Pen plotter: iDraw H SE (A3/A2) CoreXY drawing robot (rigid frame, stable motion for long straight runs and sharp corners)
Software: Inkscape 1.43 with iDraw-style plotting workflow (SVG vectors, layers, node editing, and draw-order control)
File format: SVG (true vectors for clean plotting, predictable scaling, and reliable pen paths)
Paper: 24 lb (90 g/m²) black paper (high contrast, hides minor fiber texture, makes white ink read like chalk-line drafting)
Pen: Sakura Gelly Roll 08 white gel pen (opaque gel ink for solid coverage on dark stock)
Draw stats: 15:35 elapsed, 16.58 m drawn path, 20.44 m total travel (includes non-drawing moves and repositioning)
What is pen plotting art?
Pen plotting art is artwork drawn by a machine that moves a real pen along vector paths. Instead of pixels or printing, the final result is physical ink laid down line by line with visible precision and small human-like imperfections from paper and pen behavior.
How do you convert an image into plot-ready lines?
The most reliable approach is to rebuild or clean into true vectors, then simplify nodes and remove overlaps. For technical plates, organizing layers and controlling stroke order prevents messy redraws and keeps edges crisp.
Why does CoreXY matter on a pen plotter?
CoreXY helps keep motion stable and accurate by balancing motor movement across axes. That stability shows up most on long straight lines, repeated passes, and fine alignment between mirrored parts of a technical drawing.
Which pens work best on black paper for plotter drawings?
Opaque white gel pens and certain paint markers tend to read cleanly on black stock, but they differ in line consistency and drying time. Gel pens can look very crisp, but they may need slower speeds and consistent pressure to avoid skipping on textured paper.
How do you reduce pen lifts and speed up plotting?
Combine paths where possible, reduce unnecessary segments, and sort the draw order so nearby features plot consecutively. Clean vectors also prevent tiny stray marks that cause extra travel and interrupt smooth motion.
Can Inkscape control a pen plotter directly?
Yes, many plotters use an Inkscape extension workflow that sends SVG paths to the machine with speed, pen-up/pen-down, and alignment controls. The key is treating the SVG as a manufacturing file: clean paths, sensible layers, and predictable scaling.
Why do plotted "blueprint plates" look better than traced line art?
Blueprint-style plates depend on hierarchy and clarity: strong outlines first, then internal structure, then small details. Traces often add noise (double lines, specks, uneven nodes) that reads messy when converted into real ink.
What are the most common mistakes that ruin a pen plot?
Dirty vectors (stray dots, overlaps, excessive nodes) and pushing speed too hard for the pen/paper combination. On black paper, another common issue is inconsistent ink flow, which is usually solved by slowing down and keeping pressure consistent.
Is this generative art or technical illustration?
This is a technical illustration presented with a plotter-art workflow. The finish can feel generative because it's algorithmically executed, but the intent is traditional drafting: legibility, structure, and disciplined linework.
For this plate, the draw order is treated like a drafting session: establish the major silhouette, lock the symmetry, then build panel structure and smaller features last. The black paper, white ink choice pushes it toward archival blueprint aesthetics while keeping everything purely line-based. The best plots come from restraint: fewer marks, cleaner vectors, and a steady mechanical pace.
