Ditra Heat, electric floor heat testing and install.

SUBSCRIBE Learn how tile the right way

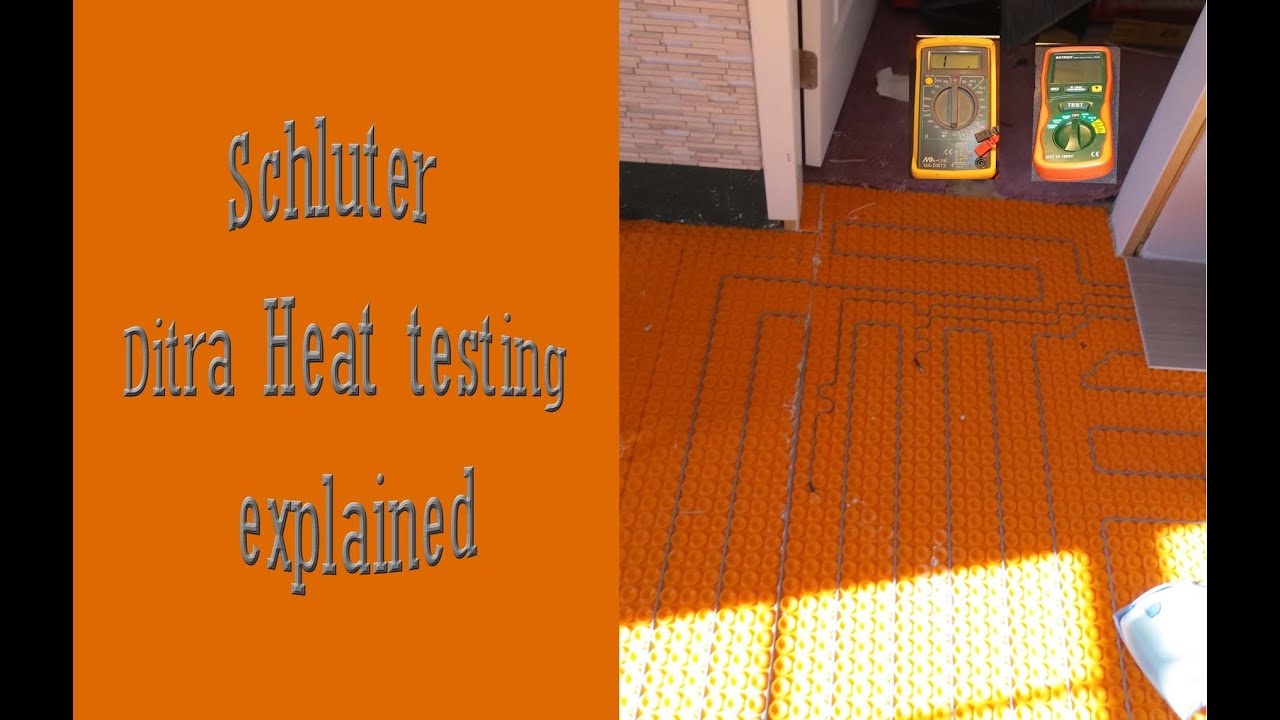

Ditra Heat, electric floor heat testing and install. Electric floor warming system installation. Ditra Heat, Updated instructions on how to install it start to finish. The wire now allows for more than one configuration. Ditra Heat is a floor warming system made by Schluter, it is a three component system consisting of the Ditra Mat, the cable system and the thermostat, it comes in both 120, and 240 volt. The Ditra mat for the Ditra heat is configured in such a way that the heat wire can be easily inserted and routed through the mat to heat the desired areas, the whole floor can be heated, but can also be used to heat different zones. The Ditra mat is installed the same way as the regular Ditra uncoupling membrane, and serves the same function with the added capability of accepting the heat wire. One important difference is that a ¼” square notched trowel is used to spread the thinset instead of the regular Ditra trowel. Once the mat has been installed, the wire can be routed into the mat. The heating cable must be placed no closer than 3” from the wall, and 8” from a heat source, (Hot air vent, baseboard heat, etc.). The cable and sensors must be tested with the appropriate meters before they are installed, after they have been placed in the mat, and after the tile has been installed to retain the warrantee. All the directions are included with the system. All tile installed by Sal DiBlasi, Elite-tile Company, in the Boston North Shore area. This video contains affiliate links, which means I will receive a small commission if you click on the product link. #tile #transformthetrade #howtotile #installingtile #howtoinstalltile #Schlutersystems #diy #construction

Ditra heat mat install video start at 6:39    • Ditra Heat, electric floor heat  how to in...
