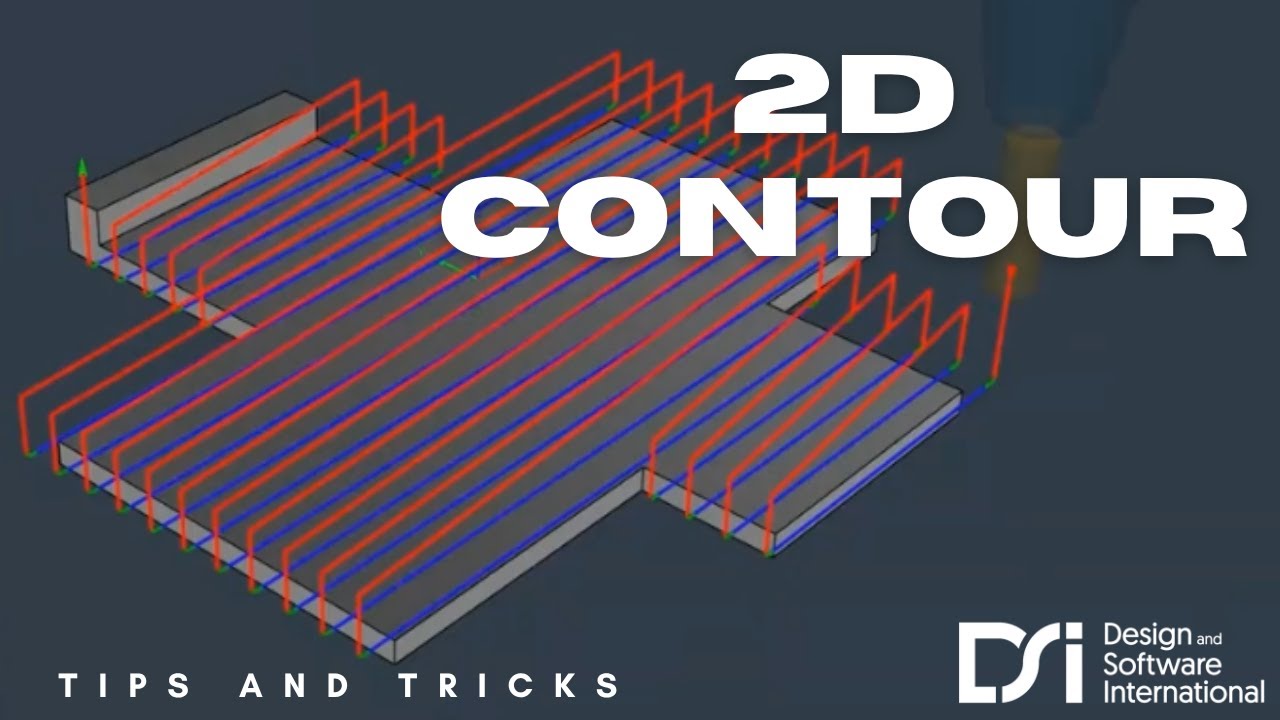

2D Contour Tips and Tricks

Join the DMC Here: http://dsi-dmc.com

Unlock the full potential of Fusion's 2D toolpaths with this in-depth tutorial! In this video, we dive into the latest updates, tips, and tricks for mastering 2D contour operations. Whether you’re a beginner or an experienced machinist, you’ll learn how to optimize your workflow, avoid common pitfalls, and get the most out of your CNC projects.

What You’ll Learn:

Navigating recent changes in Fusion 360’s 2D toolpath interface
How to use and customize the 2D Contour tool
Best practices for facing, pocketing, and trimming toolpaths
Using stock contours and boundaries for precise machining
Troubleshooting common issues and optimizing your passes
Real-world examples and expert insights

If you found this video helpful, don’t forget to like, subscribe, and join the Digital Manufacturing Collective! Download the DMC app on iOS or Android for more resources and community support.

00:00 - Introduction & Overview
00:29 - Recent Changes in Fusion 2D Tool Pass
00:44 - 2D Contour Tool Tip Location
01:09 - Visual Changes & Dark Mode
01:27 - Pocket Tool Path & Selections
01:44 - Facing Toolpath: Issues & Considerations
02:03 - Why Facing May Cause Gouging
02:21 - Step-by-Step: Selecting Contours
02:38 - Simulating Toolpath & Over-machining
02:56 - Pocket Toolpath: Selection Issues
03:16 - Using 2D Contour for a Single Path
04:05 - Adjusting Linking & Lead-in Sweep
04:23 - Passes Settings: Roughing vs. Finishing
04:39 - Multiple Finishing Passes Example
04:57 - Entry/Exit Issues & Toolpath Length
05:14 - Extending Toolpath & Pass Count
05:35 - Stock Contours Setting Explained
05:56 - Trimming Toolpath to Stock Shape
06:14 - Stock Contours: Selecting Specific Areas
06:38 - Pass Count & Trimming Behavior
06:56 - Setting Correct Number of Passes
07:16 - Using Boundaries to Trim Toolpath
08:27 - 3D Toolpath vs. 2D Toolpath
09:31 - Avoiding Unwanted 3D Contour Wraps
10:31 - Trimming 3D Toolpaths
10:42 - 2D Toolpath: Varying Pass Distance
11:01 - Multiple Depths in 2D
11:20 - Using Trim Tool for Boundaries
11:40 - Adjusting Orientation & Trimming
12:01 - Final Thoughts & Outro
