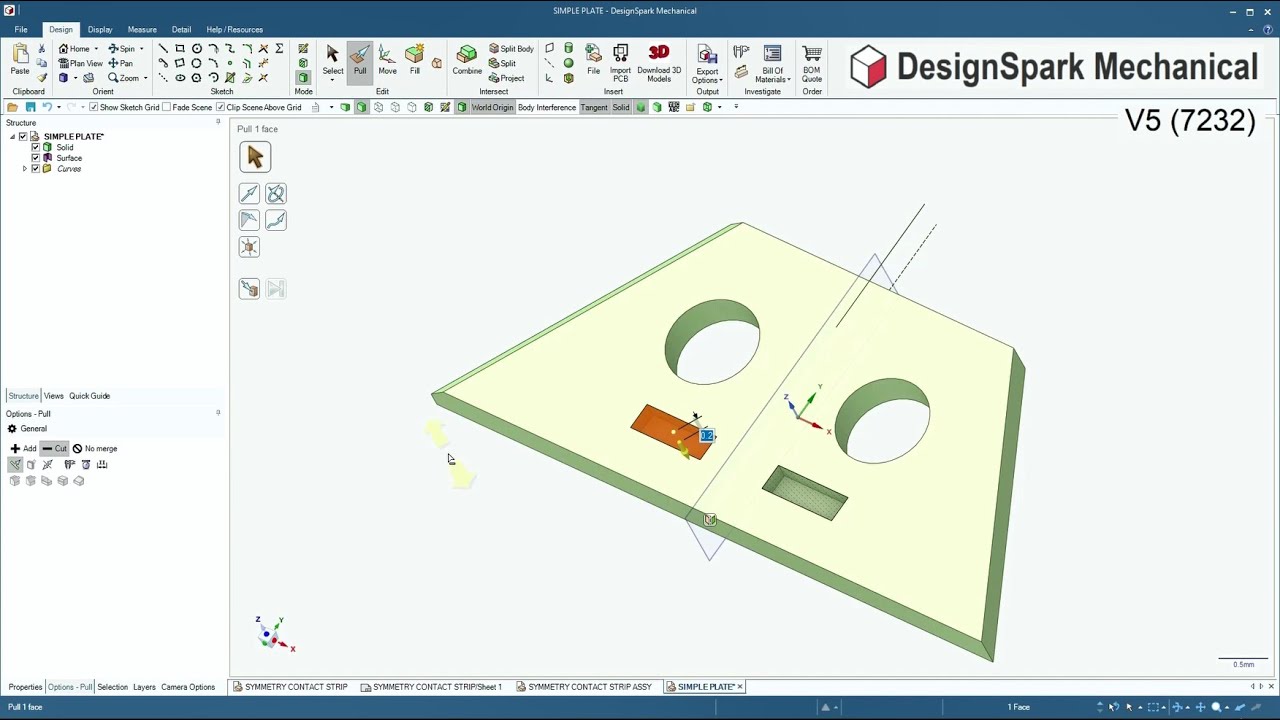

DesignSpark Mechanical - Mirror symmetry with construction line (PART 2)

In this video, Smithy further explores mirror symmetric relationships generated using a construction line. For paid Drawing add-on and Bundle users, you can find some useful tips on breaking down complex assemblies into individual views and editing dimensions of the solid from a 2D view. Note that DesignSpark Mechanical Version 5.0 (Build 7232) is used throughout this demo.

An in-depth article on this topic is available here: https://designspark.zendesk.com/hc/en...

Smithy makes use of the Quick Access toolbar which provides shortcuts to buttons hidden in other tabs. The shortcuts he uses are to switch between rendering styles, environment lighting (standard and enhanced shading) and camera angles. These buttons are all located in the 'Display' tab and you can right-click them for the quick access toolbar option.

Chapters:
0:00 Mirror Linking Associations Part - Drawing - Assembly
1:34 'Face Selections' Recall Procedure
4:32 Custom Object Views With New Object Display Option
6:39 Custom Object Views / Label Transferring To Drawing Sheet
12:06 Advanced - Indirect Drawing Sheet Label To Model Change
13:03 Model Mirror Symmetry - 'Face Selections' Change Examples
14:47 Assembly Mirror Symmetry - General Change Examples

--
