Volvo Truck Boost Leak Test | How To | D12, D13 | OTR Performance

This boost pressure tester will save you fuel and downtime! How to check your boost pressure!
Try OTR Diagnostics: https://otrperformance.com/collection...

Save yourself money and check your turbos pressure for leaks! Loss of power, poor miles per gallon and deteriorating performance are signs of loosing boost pressure. This tester is designed specifically for your Volvo Truck and is made to restore the full potential of your truck's power. A turbocharger that has a boost leak for an extended period of time will fail prematurely. This important preventative maintenance check can save you a break down while hauling a load.

The turbo boost leak tester tests the complete intake system with your engine off. You can apply maximum boost pressure (25-30psi) and listen for any air leaks. When applying the pressure to this tester through compressed air, it will force air in every part that the turbocharger would normally pressurize.

Common Issues found:

Faulty charge air coolers (leaking through various cracks)
Intake Manifold cracks
Intake manifold gasket leaks

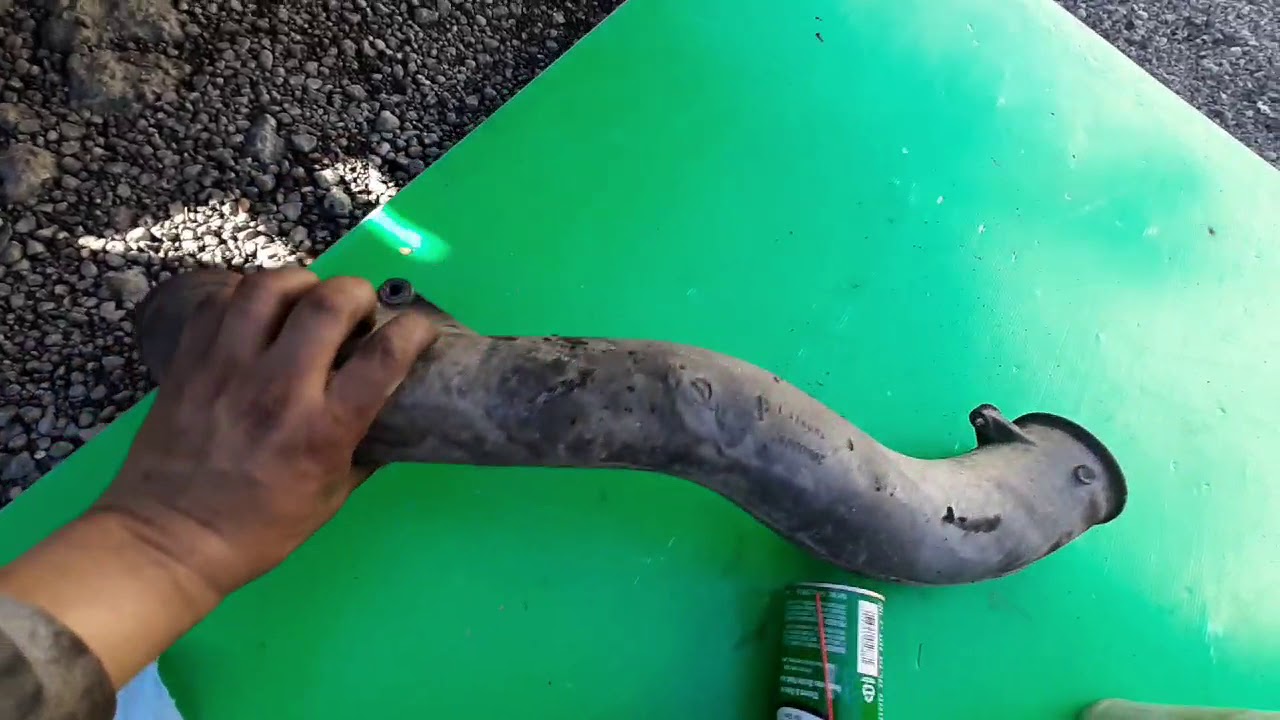

Turbo charger outlet pipe leak
Charge air cooler piping
Inspect intake grid heater for cracks
Common Symptoms found:

Excessive Black smoke: (Less boost, More fuel = Unburnt Fuel)
Loss of power
Loud Whistling noise
Loud Air Leak when pulling grades
Poor Fuel Mileage

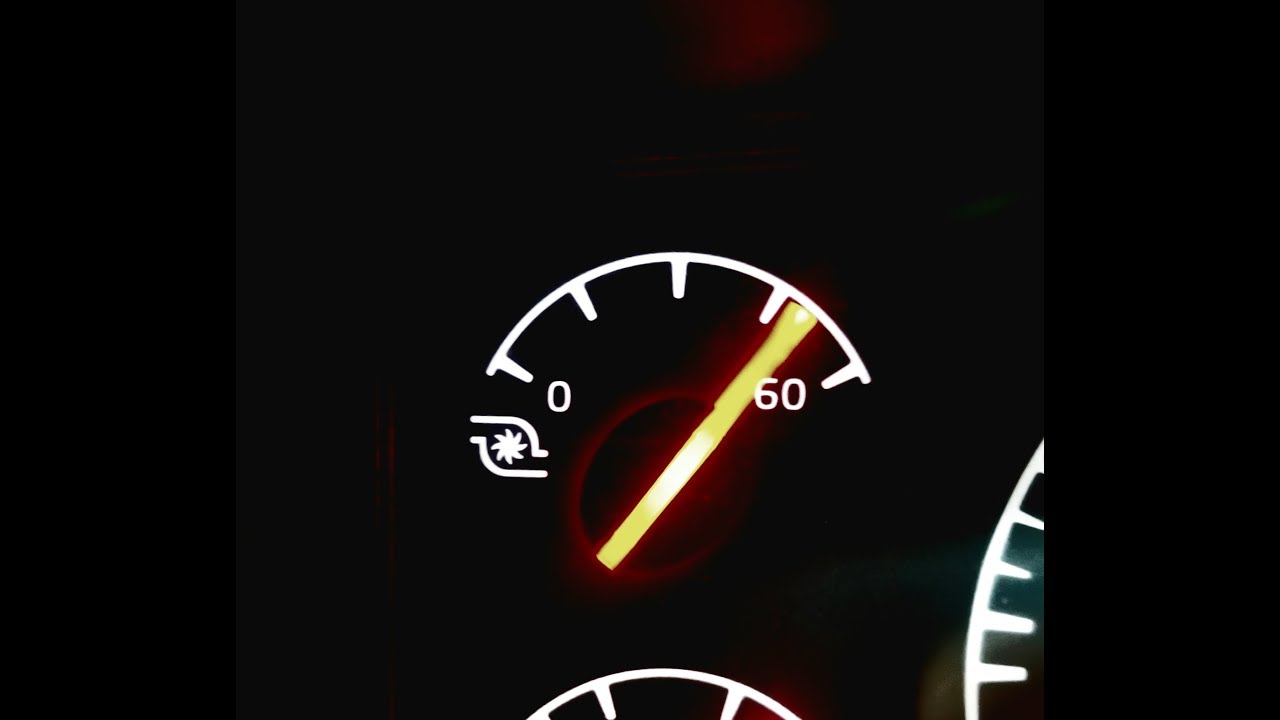

Boost pressure drop on gauge

Fits: 2003-2015 VN | VNL | VHD | VT

Engine: D12, VED12, D13, VED13, D16, VED16, ISX CM870, ISX CM871 Engines Only

Tools used:
-3/8 Ratchet
-3/8 Extension
-8mm Socket
-10mm Socket
-14mm Socket
-Flat-head screw driver
-Boost Pressure Tester

Turbo Boost Pressure Tester available!
----------------------
Let us know in the comments below if we missed something or doing something differently. If you want us to do an how-to video email us: sales@otrperformance.com
