Replacing an Indoor Mini Split Fan Motor on Fujitsu, Mitsubishi, and Daikin Wall Mounted Units!

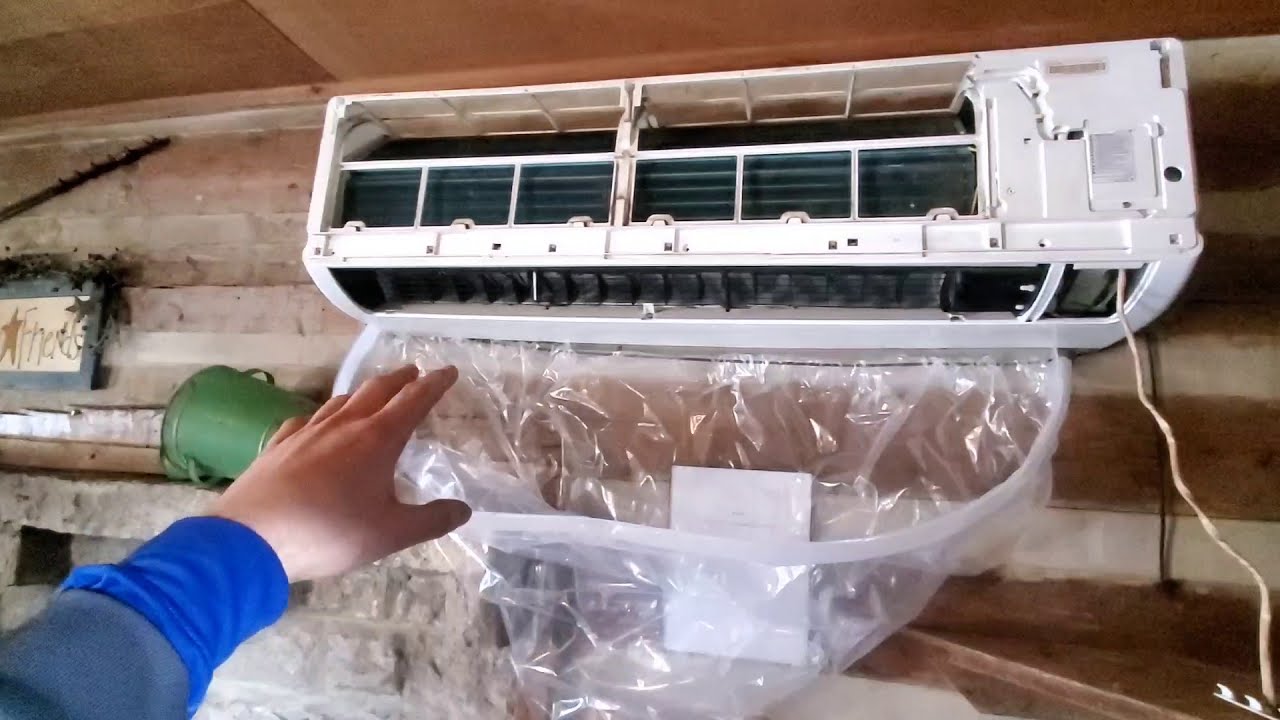

In this HVAC Training Video, Brandon shows how to remove the indoor fan motor from three different mini split indoor wall mounted units. In this example, we show the disassembly of a Fujitsu (Model: ASUG12LMAS), Mitsubishi (Model: MSZ-GL12NA), and Daikin (Model: FTX12AXVJU) indoor unit so that technicians can clearly get to the electrical compartment, blower wheel, and fan motor of these various units. Keep in mind every manufacture and every model is different and these examples are intended to teach general principles and not specifics. Supervision is needed by a licensed HVACR Tech while performing tasks as Experience and Apprenticeship garners Wisdom and Safety.

Tools Used In The Video
hilmor Screwdriver- https://amzn.to/3NbXW6r
▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬
Timecodes

0:00 - Getting Started
1:19 - Disassembly of a Fujitsu Mini Split Indoor Unit (Model: ASUG12LMAS)
12:31 - Replacing the Fan Motor on a Fujitsu Mini Split Indoor Unit
12:53 - Removing the Blower Wheel for Cleaning on a Fujitsu Mini Split Indoor Unit
15:22 - Reassembling a Fujitsu Mini Split Indoor Unit
20:34 - Disassembly of a Mitsubishi Mini Split Indoor Unit (Model: MSZ-GL12NA)
28:20 - Removing the Blower Wheel for Cleaning on a Mitsubishi Mini Split Indoor Unit
30:22 - Replacing the Fan Motor on a Mitsubishi Mini Split Indoor Unit
31:17 - Reassembling a Mitsubishi Mini Split Indoor Unit
36:31 - Disassembly of a Daikin Mini Split Indoor Unit (Model: FTX12AXVJU)
41:24 - Replacing the Fan Motor on a Daikin Mini Split Indoor Unit
41:50 - Removing the Blower Wheel for Cleaning on a Daikin Mini Split Indoor Unit
43:39 - Reassembling a Daikin Mini Split Indoor Unit
48:09 - Learn More
▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬
