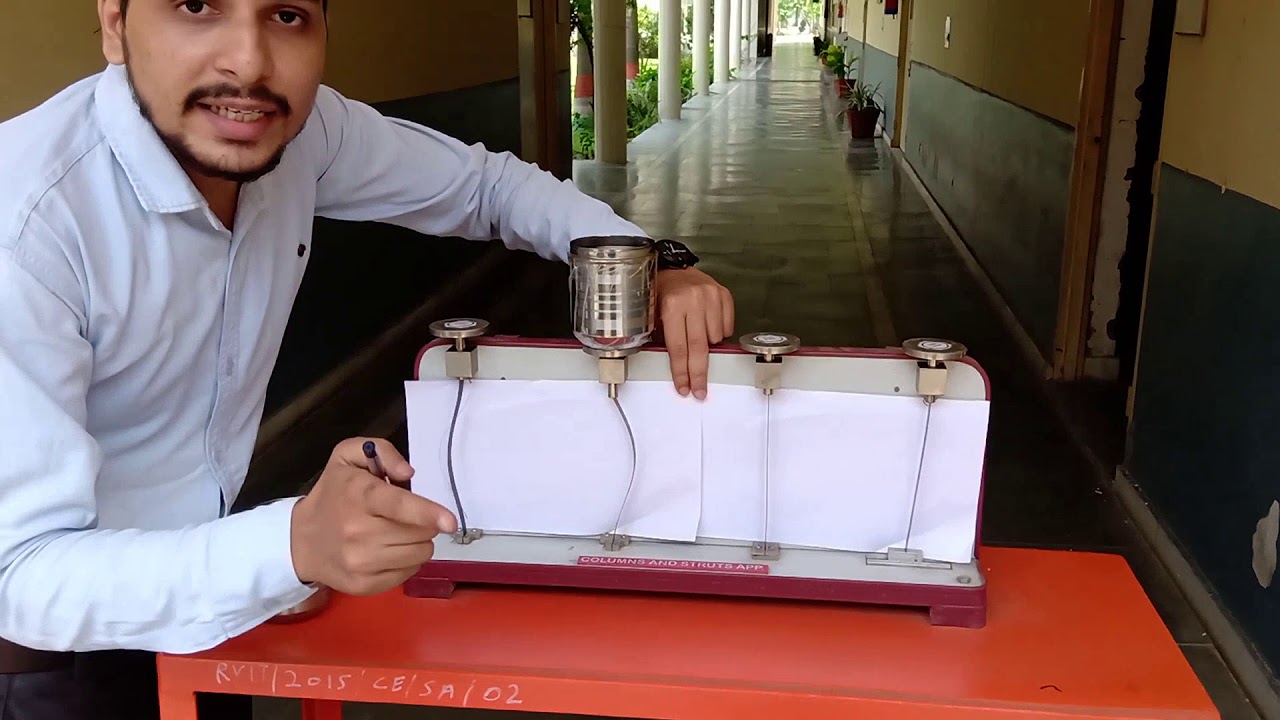

Column End Conditions
Both Ends Hinged.
Both Ends Fixed.
One End Fixed and Other Hinged.
One End Fixed and Other Free.

What is the effective length of column?
The effective column length can be defined as the length of an equivalent pin-ended column having the same load-carrying capacity as the member under consideration. The smaller the effective length of a particular column,the smaller its danger of lateral buckling and the greater its load carrying capacity.

When both ends of a column are fixed the effective length is?
Both end fixed: The effective length when both the ends are fixed is equal to . The effective length factor is equal to 0.5. When one end is fixed and another end is pinned for a column, the effective length is equal to .

What is crushing of column?
Direct compressive stress

Let us consider that A is the area of uniform cross section of the column and L is the length of the column. ... Direct compressive load corresponding to this point will be termed as crushing load and stress developed in the column will be termed as crushing stress.


On what condition long column is more suitable?
13) On what condition long column is more suitable? slenderness effect which produces additional moments resulting from transverse deformation

What is pin ended column?
Buckling (Pin Ended Columns):

Force P that is applied through the centroid of the cross section and aligned with the longitudinal axis of the column. ... Force P is guided such that P is always aligned with the pin joints 3. Both ends of the beam are free to rotate about one or more axes.
