2017 Ascend 128T kayak modifications, Trolling Motor and Helix 9 setup

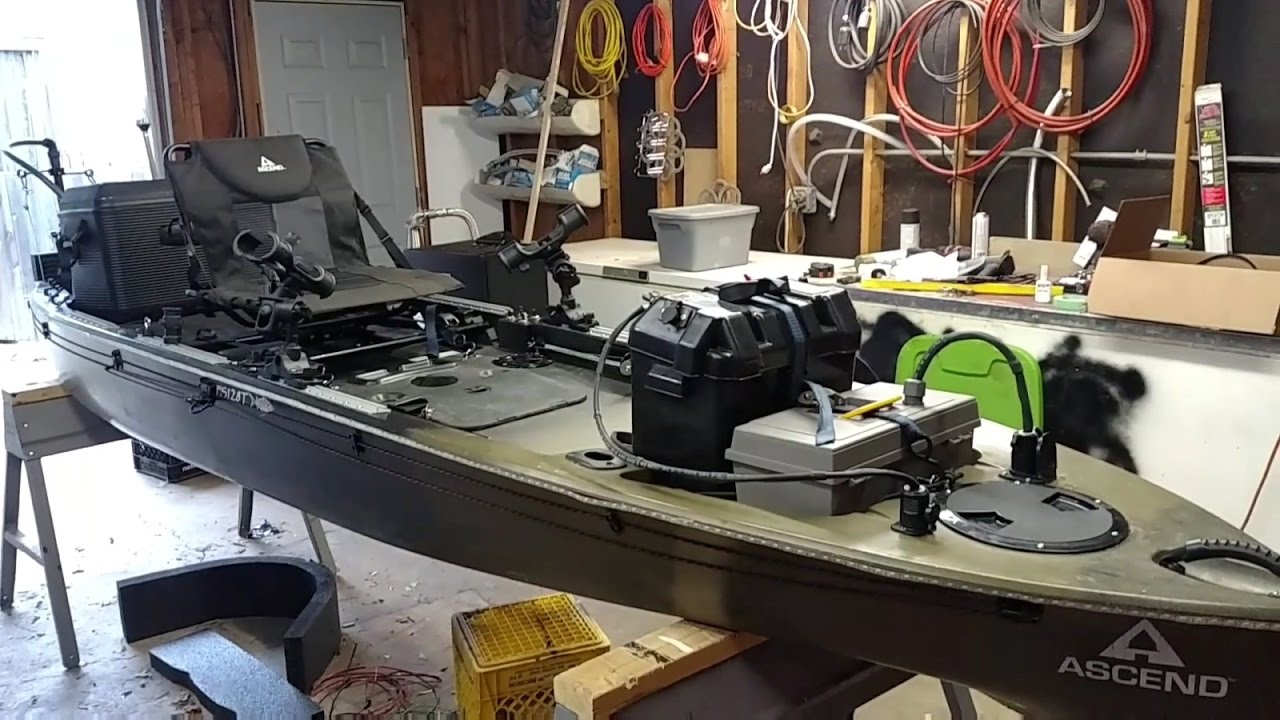

Just a quick walk through on my 2017 Ascend 128T YakPower modifications. I installed a Minn Kota 55lb Enduramax trolling motor. I ran all the wiring through the hull for a clean looking setup. I also installed a Humminbird Helix 9 SI (Side Imaging) G2N unit to replace my Lowrance Elite5 Chirp. Please let me know if you have any questions or would like to see something in more detail.

Here are the important items..

1/4" Starboard. I bought a 24"x 24" sheet that I cut and glued on my own. Easy to work with.
http://www.boatoutfitters.com/king-st...

MinnKota 55lb Endura Max - You can get this at any outdoor sporting goods store.
http://www.minnkotamotors.com/Trollin...

Rudder Tubing
http://www.austinkayak.com/products/3...

Clamshell Vents
https://www.walmart.com/ip/Attwood-Ma...

Weed Eater Line - Any line will work. Make sure it's .080 in diameter, round and smooth. Got mine at WalMart

Turnbuckles for steering - I would go into Home Depot and look at these to ensure they are the right size
http://www.homedepot.com/p/National-H...

3/8" All Thread Bolt - You'll need this to connect the turnbuckles. Had to cut it down to size too.
http://www.homedepot.com/p/Simpson-St...

Aluminum loop clips
https://www.amazon.com/gp/product/B01...

Handle to raise and lower TM. Replaced the line with 550 paracord.
https://www.amazon.com/gp/product/B00...

MinnKota Receptacle Plug
https://www.amazon.com/gp/product/B00...

Attwood TM Plugs for the front of the kayak. I had to use 8 gauge based on the MinnKota manual. Had to order from Academy.
http://www.attwoodmarine.com/store/pr...

V-Lock Base
https://store.v-lock.com/collections/...

V-Lock 90 Degree insert
https://store.v-lock.com/collections/...

Marine Goop - I used a lot of this for adhesive and sealant to prevent leaks.
https://www.amazon.com/Amazing-GOOP-1...

Battery - I have an Outlast 55amh I picked up from Battery Outfitters. I can't find it on their website but it ran me about $125.

Wire - Based on TM specs, I had to get 8 gauge wire to extend power. I used this wire for power and the trolling motor as well. I got 3 feet of black and red at Home Depot for consistency.

Stainless Steel nuts and bolts with large washers. I don't remember the exact sizes and numbers but I think I had 10 bolts in the TM mount which included the ones for the VLock.

I plan on changing out the pedals as they do not glide real easy after using it a few times. Just something to note.

I think this is most of it. Hope it helps!
