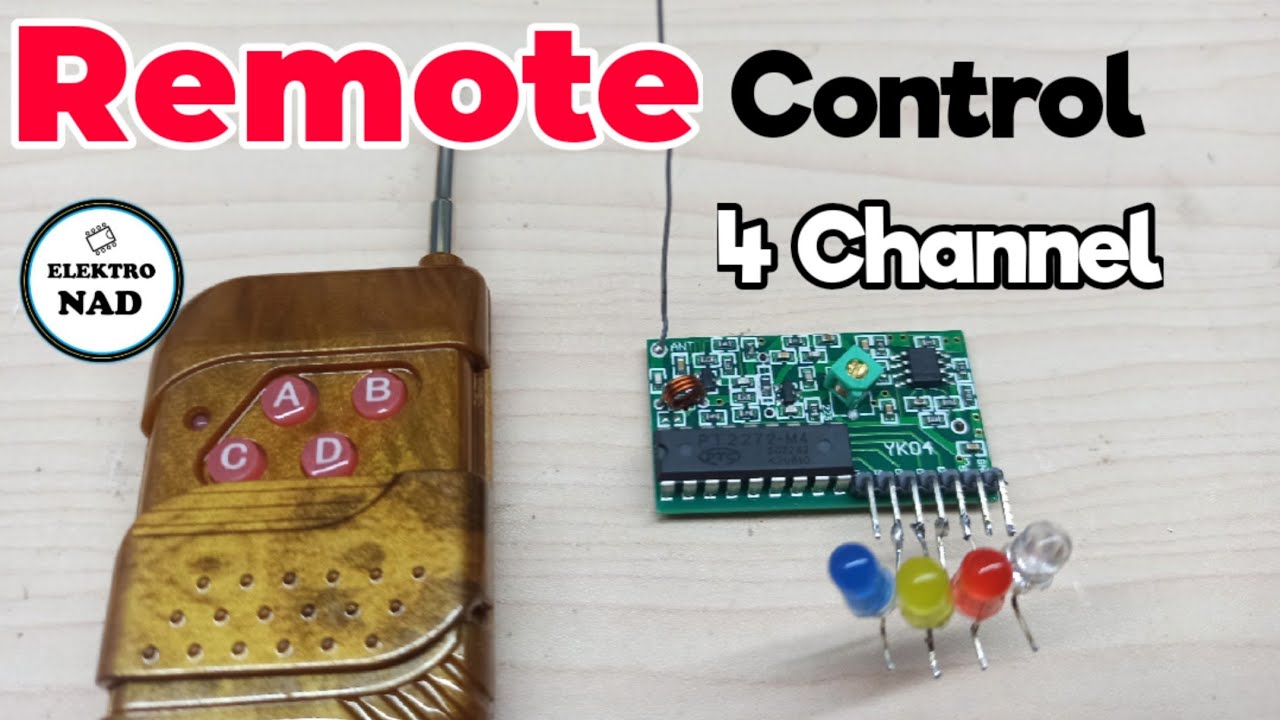

How to use: 12v RF 4-Channel 433Mhz wireless Remote Control Switch Module

Purchase Link: https://www.aliexpress.com/store/prod...

How to use: 433Mhz Universal Wireless Remote Control Switch DC 12V 4CH relay Receiver Module For 4CH 1527 learning code 433 Mhz Transmitter

OPERATION

1. Momentary Mode: pressing one time the learning key button on the receiver board ( Led indicator on receiver board will signaling simultaneously ),then press any of the remote button , signaling three times by remote's LED indicator informs about setting momentary mode successfully .
2. Toggle Mode: pressing two times the learning key button on the receiver board( Led indicator on receiver board will signaling simultaneously ),then press any of the remote button , signaling three times by remote's LED indicator informs about setting toggle mode successfully .
3. Latching Mode:pressing three times the learning key button on the receiver board ( Led indicator on receiver board will signaling simultaneously ),then press first remote button ,follow on second remote button , signaling three times by remote's LED indicator informs about setting latching mode successfully ( first button stands for on , second button stands for off ).
4. 2CH momentary + 2CH Toggle :pressing four times the learning key button on the receiver board(Led indicator on receiver board will signaling simultaneously ),then press any of the remote button , signaling three times by remote's LED indicator informs about setting 5-second delay successfully .
5. 2CH Momentary + 2CH Latching :pressing five times the learning key button on the receiver board ( Led indicator on receiver board will signaling simultaneously ),then press any of the remote button , signaling three times by remote's LED indicator informs about setting 10-second delay successfully .
6. 2CH Toggle + 2CH Latching :pressing six times the learning key button on the receiver board( Led indicator on receiver board will signaling simultaneously ),then press any of the remote button , signaling three times by remote's LED indicator informs about setting 15-second delay successfully .
7. 2CH Latching + 2CH Latching :pressing seven times the learning key button on the receiver board( Led indicator on receiver board will signaling simultaneously ),then press any of the remote button , signaling three times by remote's LED indicator informs about setting 15-second delay successfully .
8. Deleting existing remote controls data: pressing eight times the learning key button on the receiver board , the LED indicator on receiver board will flash for eight times , the existing remote controls are deleted successfully .
