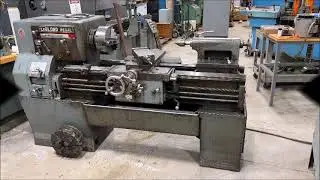

LeBlond Regal Gear Head Engine Lathe, 15 x 30 - SOLD
Автор: New England Industrial Machinery
Загружено: 2014-08-13
Просмотров: 17695
Описание:
Leblond 15” x 30” Gear Head Engine Lathe/ Ref.#61-301
Model No. 15C Regal
Serial No. 7C1952 New 1966
Swing Over Bed Ways: 15"
Swing Over Cross Slide: 9-1/2"
Maximum Distance Between Centers: 30
Diameter of Hole Thru Spindle: 1-17/32"
Spindle Speeds (12): 30 - 1200 RPM
Threading Range: 4 - 224 TPI
Feed Rates: .0018 - .104 IPR
Spindle Nose Mount: L0
Overall Dimensions: 77" x 38" x 52" High
Machine Weight, Approx.: 2,500 Lbs.
Equipped With:
SWI Trav-A-Dial Measuring Device for Longitudinal Feed
Leblond 10" 3-Jaw Chuck with Hard Top Jaws
Micrometer Carriage Stop
Threading Dial
Manual
3-HP Motor 208/3/60
