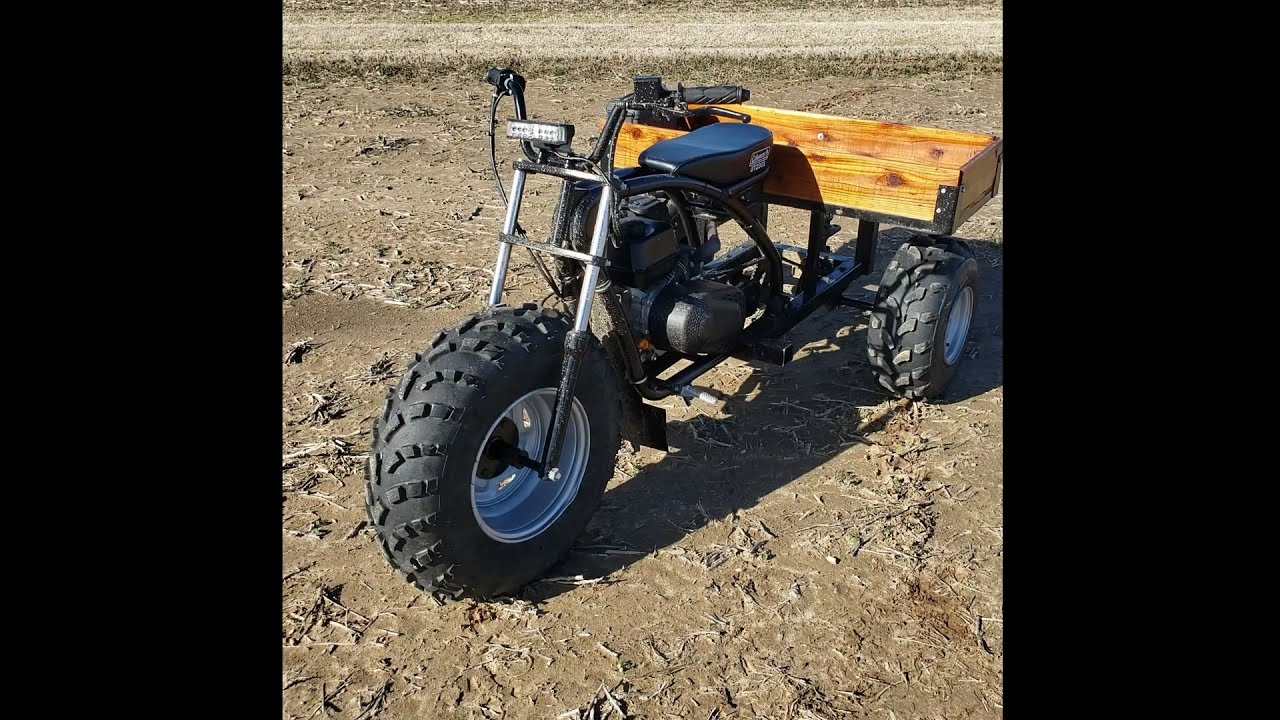

Coleman BT200x Mini Trike build. No Welding, No drilling in frame, all bolt on

Will add the parts links here soon, most were purchased on Amazon besides the hardware..

Coleman mini bike trike conversion. Bt200x

seen a few other conversion videos on here but none that just allow you to bolt on without drilling in the frame and no welding.. 👍

this is a game-changer now, I can register this as an ATV. which means in my city with a permit you can drive atv's on the street !

keep in mind the wheel bolt pattern did not line up correctly with the Hubs I purchased, I did use original Sprocket but had to drill the holes slightly larger on the sprocket hub for the bolts to fit as they were small holes on the new hub but did line up.. you have to drill those at the perfect size or there will be play and you don't want that!

I also added the correct length bolts with lock nuts on the bearings. as you can see in the video that they weren't long enough, and a washer 🙂

JCMOTO Pack of Two 18X9.5-8 Tubeless Tire With 8 inch Wheels Rims for ATV Go Kart Pit Dirt Bike https://www.amazon.com/dp/B07H3Q8WHQ/...

Jeremywell UCP205-16 Pillow Block Bearing 1 inch Bore, 2 Bolt Flange Mounted, Solid Cast Iron Base, Self-Alignment (2 PCS) https://www.amazon.com/dp/B01IWGLPF2/...

Steel Go-Kart Axle 36" Total Length 1" Axle w/ 2" Stepped Ends (1-3/8" Thread Length)-Have two 1/4" keyway, 180 degrees offset, 3/4-16 threads https://a.co/d/1G56W32

GREHUA Rear Steel Sprocket Drum Brake Hub Adapter 1" Bore 1/4" Keyway with Hardware Kit for Predator 212cc 196cc 6.5hp Dune Buggies Drift Trike Heavy https://www.amazon.com/dp/B09Y8NJS38/...


PGN #40 Roller Chain - 10 Feet + 2 Free Connecting Links - Carbon Steel Chains for Bycicles, Mini Bikes, Motorcycles, Go-Karts, Home and Industrial Ma https://www.amazon.com/dp/B07NPSZCK6/...
GREHUA Sprocket Axle Brake Hub Adapter 4" x 4" with 2-3/4" Hub 1/4" Keyway and 1" Bore to 3/4" Step Down for Predator 212cc 196cc 6.5Hp Dune Buggies D https://www.amazon.com/dp/B0B8TX7CPX/...


2562 Azusa Go kart Sprocket Hub, 1" bore, 1/4" keyway https://www.amazon.com/dp/B01IDMNN4Q/...
