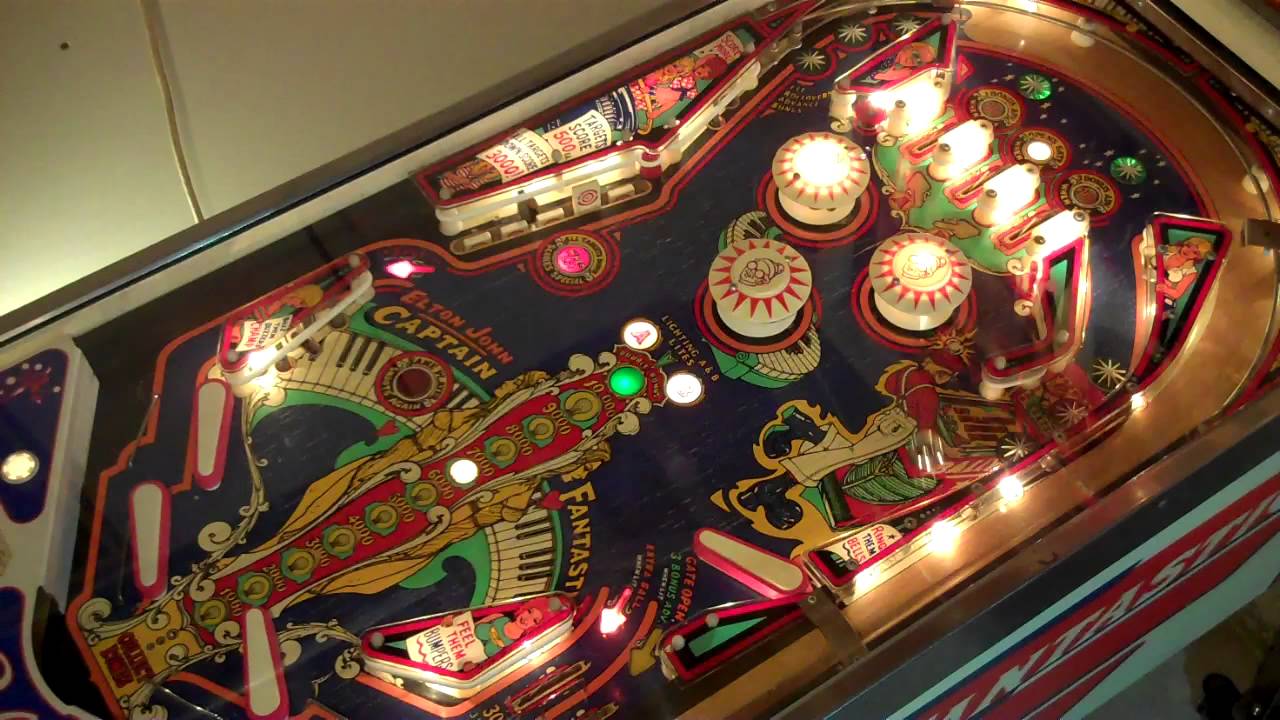

Bally Capt. Fantastic Playing like new Again!

Over 40 hours of restoration work was performed on this Bally Classic from 1976!
The owner of this game desired to retain the cabinet and playfield patina as much as possible so we just deep cleaned the playfield and wiped down the cabinet as there were much bigger things to do to on this game refurbishment as it was loaded with dust internally and some mouse droppings covering the internal compnnents and switches relays.
Took out playfield and bottom mech board and backbox to air blast clean outside
Serviced bottom board steppe runits and head stepper units.
Took apart top of playfield, finished pop bumper rebuild, serviced playfield stepper, started 4 flipper rebuild. pop bumper parts incl new pop bumper caps.
4 flipper rebuilds with new coils, new double eas switch. cleaned all insterts, new bulbs and tested bulbs and sockets (feature lights), new cabinet fuse holders and new playfield fuse holder 4 new flipper bats and plunger links and coil stops.
Trouble shooted drop target maladys and weird game behaviour.
Magic erasured playfield and buffed with novus 2
Rebuilt drop target bank with new drops and shoulder rivets, rebuilt chime unit with 3 new tuned chimes and chime grommets.
New plunger for middle chime, repaired feature light sockets.
Top side new white posts and premium white silicone rubber. Cleaned plastics and installed rubber kit. Cleand all score reels and apron and shooter gauge and installed. Adjusted 16 score reel switch sets to factory spec.
Adjusted 4 EOS switches on score reels to get the over the top lights to now work.
Cleaned match unit as well as buff metal playfield glass rear holder and coin door metal parts and front cabinet metal parts and install and PM shooter rod and coin door and its lights and bezel etc., Install coin door metal shooter rod and glass metal bezel. 2 new white LEDS for coin door LEDS for score reels and led flashers for elton john machine backglass.
Troubleshoot playfield feature light issue and double ball serve kick issues fixed via game over relay switch clean and outhole switch adjsutment as well as cleaned each of the 300 points individual score motor switches 3 switches total give the 300 points. Filed each of them and adjusted for closer tolerance for stronger bonus stepper advance coil action.
Clear coat top arch wear line and shooter lane for better play response. New orange shooter spring and barrel spring.
New top side tempered glass and Back glass lock.
Worked on lubing teeth and adjusting spring back pressure for plastic tooth wheel on bonus stepper. Very worn loose wheel but works. Would have replaced but some of these older parts are no longer available.
