Homemade 10cc 4 stroke engine Built from Popular Mechanics Magazine, Will it run on spark & gas?

Автор: gwheyduke

Загружено: 2012-09-10

Просмотров: 106336

Описание:

Short video of starting a home shop machined 10 cc four stroke model engine built using 1946 Popular Mechanics Magazine plans. Engine case and cylinder head are sand cast aluminum. The cylinder is a machined aluminum round bar with a cast iron sleeve. Piston is aluminum and has two cast iron rings.
The points are standard GM V-8 car parts. The spark advance is adjustable with the small brass handle on the back of the engine. Bore is 1 inch. Built using a 1941 9-inch South Bend lathe and a new Sherline 3" lathe.

Don't forget to SUBSCRIBE

Here is a link for the Sherline Lathe just like mine- https://amzn.to/31D7HCN

Uses a 3-volt model electric model airplane type coil and two D size flashlight batteries for ignition.
This engine is sold by Coles Power Models (now in Texas) as a casting kit known as the "Water Witch".
A remarkably similar engine was published as a project in Popular Mechanics Magazine in The October and November 1946 issues page 201. "Model Gas Engine" I copied the article from Library copies of the magazine and used a magnifying glass to read the small print on the drawings in the article.
Back issues of Popular Mechanics are now posted online at http://books.google.com/books?id=IuED...

The gears were purchased from Boston Gear. The the crank shaft is supported by two ball bearings. An old Champion "V" was borrowed from an old model airplane engine.

It will run about 3 minutes on a teaspoon of "camp fuel" aka Colman fuel. Also runs fine on regular gasoline.

Homemade 10cc 4 stroke engine Built from Popular Mechanics Magazine, Will it run on spark & gas?

Поделиться в:

Доступные форматы для скачивания:

Скачать видео mp4

  • Информация по загрузке:

Скачать аудио mp3

Похожие видео

Tear down - 1936 Popular Mechanics Magazine homemade single cylinder four stroke model engine.

Tear down - 1936 Popular Mechanics Magazine homemade single cylinder four stroke model engine.

15CC  4 stroke RC engine: gas,not nitro!

15CC 4 stroke RC engine: gas,not nitro!

Motorcycle Engine Build From Scratch In 3-1/2 Minutes

Motorcycle Engine Build From Scratch In 3-1/2 Minutes

A very old electric motor

A very old electric motor

Let's Build a Model Engine - 30cc Wallaby Twin Cylinder 4 Stroke-build one too!

Let's Build a Model Engine - 30cc Wallaby Twin Cylinder 4 Stroke-build one too!

Four stroke petrol engine designed by scrap

Four stroke petrol engine designed by scrap

Homemade engine Built from 1936 Popular Mechanics Magazine

Homemade engine Built from 1936 Popular Mechanics Magazine "Midget" - Will it really Run?

Unboxing the Rotomotor 170 FS - 170cc 4 Stroke 4 Cylinder Gas RC Engine!

Unboxing the Rotomotor 170 FS - 170cc 4 Stroke 4 Cylinder Gas RC Engine!

Scratchbuild 10cc RC Boat  Water Cooled Petrol Engine

Scratchbuild 10cc RC Boat Water Cooled Petrol Engine

4 - Stroke OHV Engine Model

4 - Stroke OHV Engine Model

#MT35 Часть 20 - Фермерский парень сбил и не справился с заданием. Зажигание. Эндрю Уэйл.

#MT35 Часть 20 - Фермерский парень сбил и не справился с заданием. Зажигание. Эндрю Уэйл.

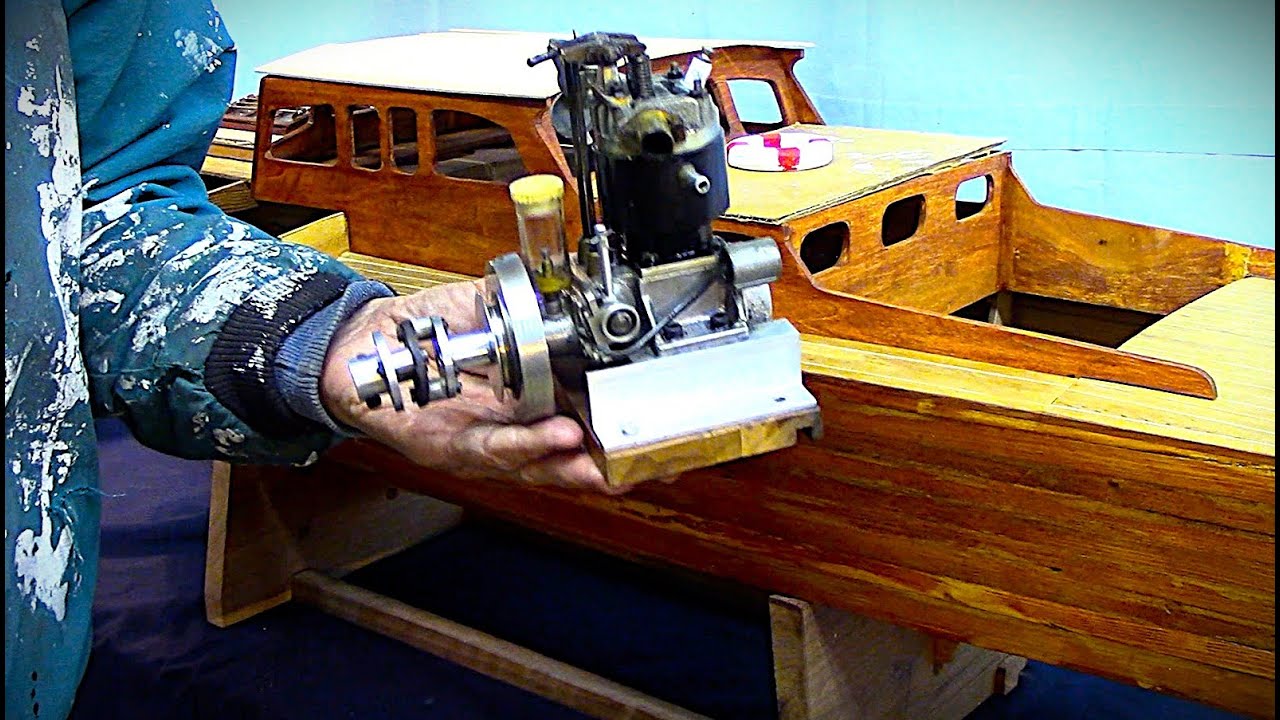

Runing vintage British Ganett 4 stroke model Boat engine

Runing vintage British Ganett 4 stroke model Boat engine

1/4 scale Air Cooled Thompson Engine

1/4 scale Air Cooled Thompson Engine

V6 Engine Miniature (DIY Engine)

V6 Engine Miniature (DIY Engine)

My first

My first "four stroke I.C. engine". Special thanks to Jan Ridders

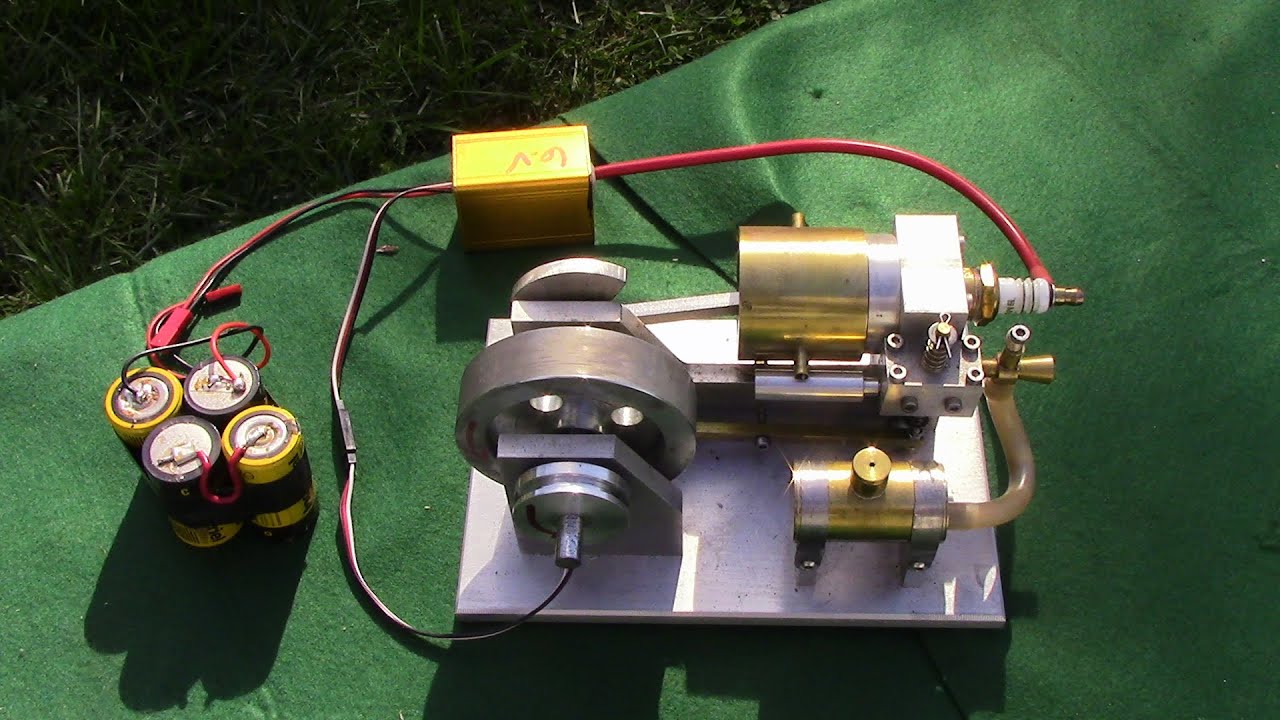

Review and how to Run Spark ignition single cylinder Model Webster Mini Engine form China !
