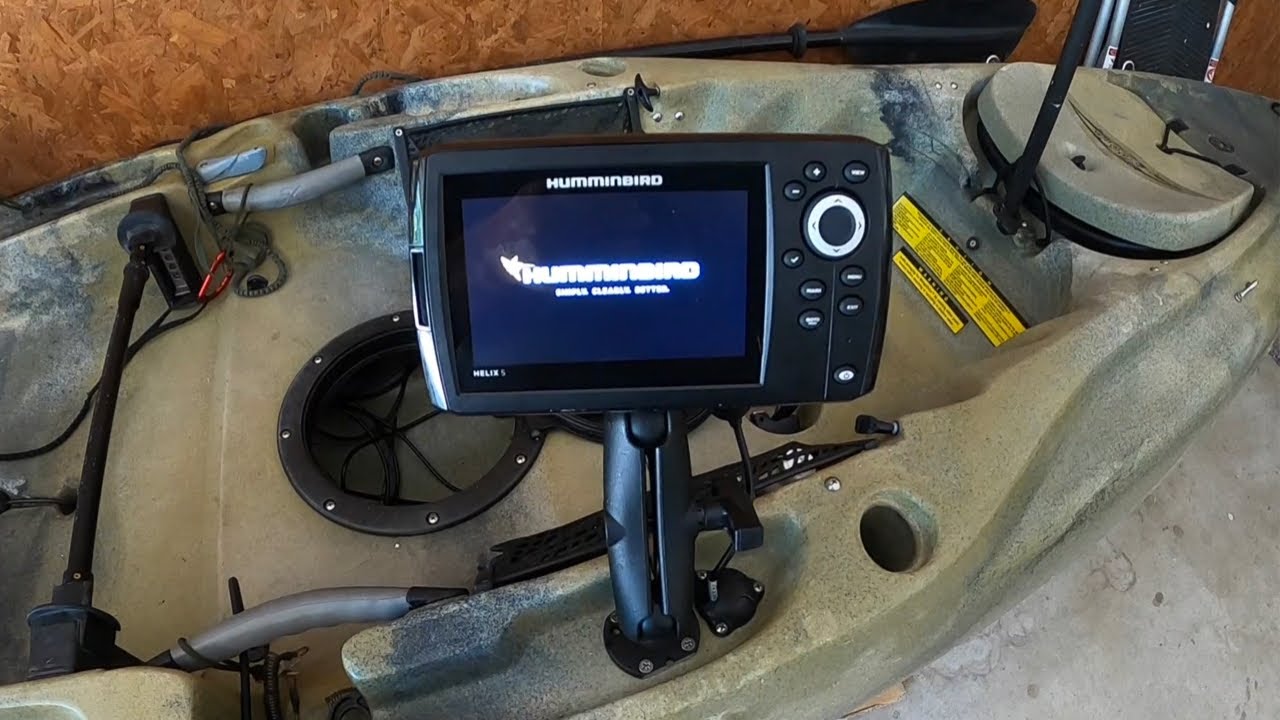

Installing Helix Fish Finder On Kayak Predator PDL 2020 Model

Step by step instructions for installing a fish finder on an Old Town Predator PDL (http://bit.ly/predatorpdl_radreeling) kayak, 2020 model. This installation is of the Helix 5 model using the Wilderness Systems through hull wiring kit and Ram Mount.

IMPORTANT! Please review your Old Town warranty before drilling any holes in your kayak.

The video starts with listing all of the things purchased to install the Helix 5 fish finder. Here are some important time marks to help you reference what you need to review before you begin the install.

A) 3:41 Installing an inline fuse on the battery wire
B) 7:02 Mounting the transducer
C) 11:50 DO NOT use the "no holes drilled in kayak method"
D) 13:49 Attaching the Ram Mount ball to the gear track
E) 14:57 Drilling holes and installing the through hull wiring kit from Wilderness Systems
F) 20:43 Connecting the bracket from the Helix 5 to the Ram Mount that holds the display screen
G) 21:23 Organizing wires under the front hatch and connecting the battery
H) 23:28 Fixing a hole that was drilled the wrong size

Here's a list of the things I purchase separate from the fish finder to complete the installation.
As an Amazon Associate I earn from qualifying purchases.

1) Universal 12V battery 9AH
https://amzn.to/2JuVlDJ (paid link)

2) Ram Mount For The Helix 5
https://amzn.to/2MVbyUW (paid link)

3) 136 Piece Electrical Connector Kit With Heat Shrink and More
https://amzn.to/32TjwmZ (paid link)

4) 3AMP Inline Fuse Adaptor
https://amzn.to/36e1cao (paid link)

5) Liquid Tape
https://amzn.to/369A6Bn (paid link)

6) Wilderness Systems Through Hull Wiring Kit
https://amzn.to/32W8Unk (paid link)

7) 1-3/8" Hole Saw
https://amzn.to/36eREvV

8) Stainless Steel Screws and nuts, all 10/24 thickness, 6-1", 2-3/4", 6 nuts with plastic inserts
Screws- https://amzn.to/2Pp46mz
Nuts- https://amzn.to/2JtMeTX
Washers-https://amzn.to/2JuWb3D

8) Zip Ties
https://amzn.to/2qS6wjy

Preparing and installing the Helix fish finder on the Predator PDL kayak using the through hull wiring kit took about two hours total. I made it very clear in the video about the dangers of running the wires for the transducer and power supply over the lip of the front hatch cover on the kayak. In giving this warning I also included a video clip of water that got into the hull of the Predator PDL due to the seal on the hatch being compromised by the wires.
