Design power converter for an industrial DC conveyor Motor

In this video, I present a complete design and simulation of a single-phase power converter for DC motor speed control using MATLAB Simulink. You can get the Simulink file from thttps://simuscope.gumroad.com/l/ddltav

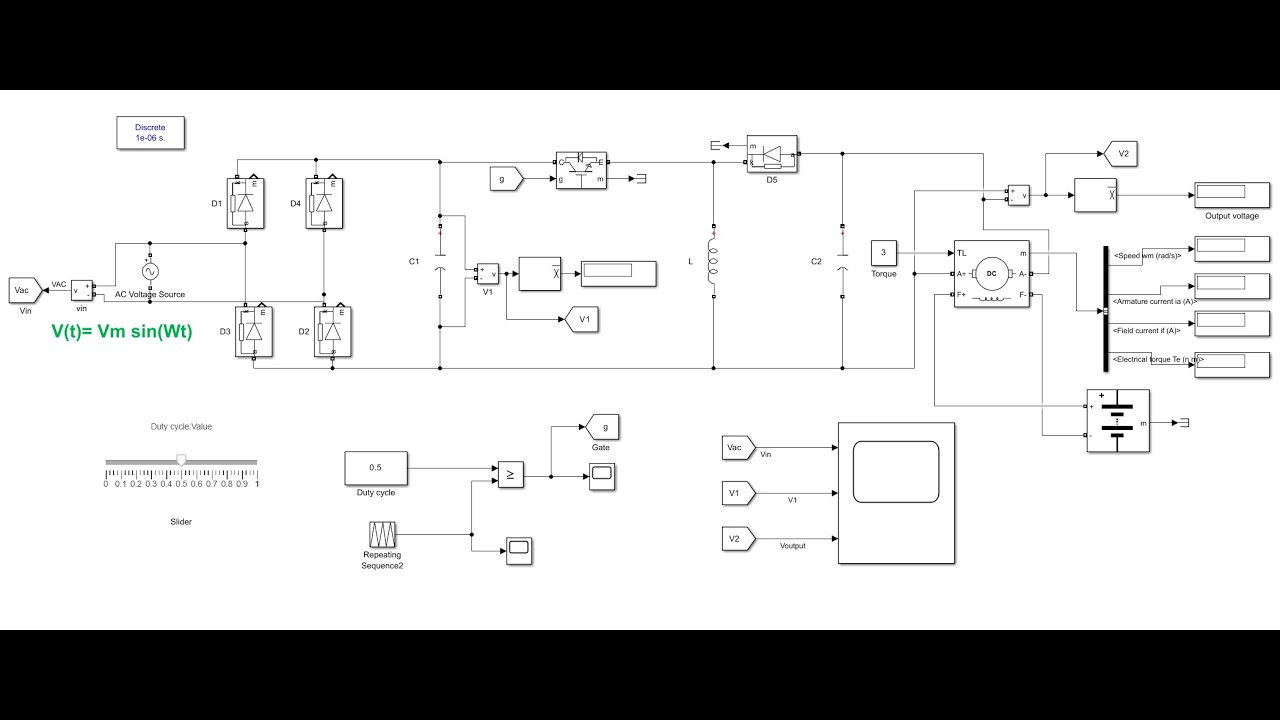

The project is based on a industrial case study where a 230 V, 50 Hz AC supply is used to drive a 48 V separately excited DC conveyor motor. The system converts AC power into a controlled DC output using a diode bridge rectifier, DC-link capacitor, and a PWM-controlled buck converter.

🔧 What this video covers:

System architecture of an AC–DC power converter

Rectifier and DC-link voltage design

Buck converter operation (ON/OFF states)

PWM generation and duty cycle control in Simulink

Inductor and capacitor filter design

DC motor armature voltage speed control

Simulation results for different duty cycles

Analysis of voltage ripple, transient response, and steady-state behavior

Industrial applications and future improvements

📊 Key Results:

Stable DC-link voltage after rectification

Controlled output voltage proportional to duty cycle

Smooth DC motor speed control

Output voltage ripple maintained below 5%

This project is ideal for:

Power Electronics students

Electrical Engineering final-year projects

DC motor drive studies

MATLAB / Simulink learners

Industrial motor control applications

📌 Software Used:
MATLAB Simulink (Simscape Electrical – Specialized Power Systems)

If you find this video helpful, don’t forget to like, share, and subscribe for more Simulink, power electronics, and motor drive projects.
