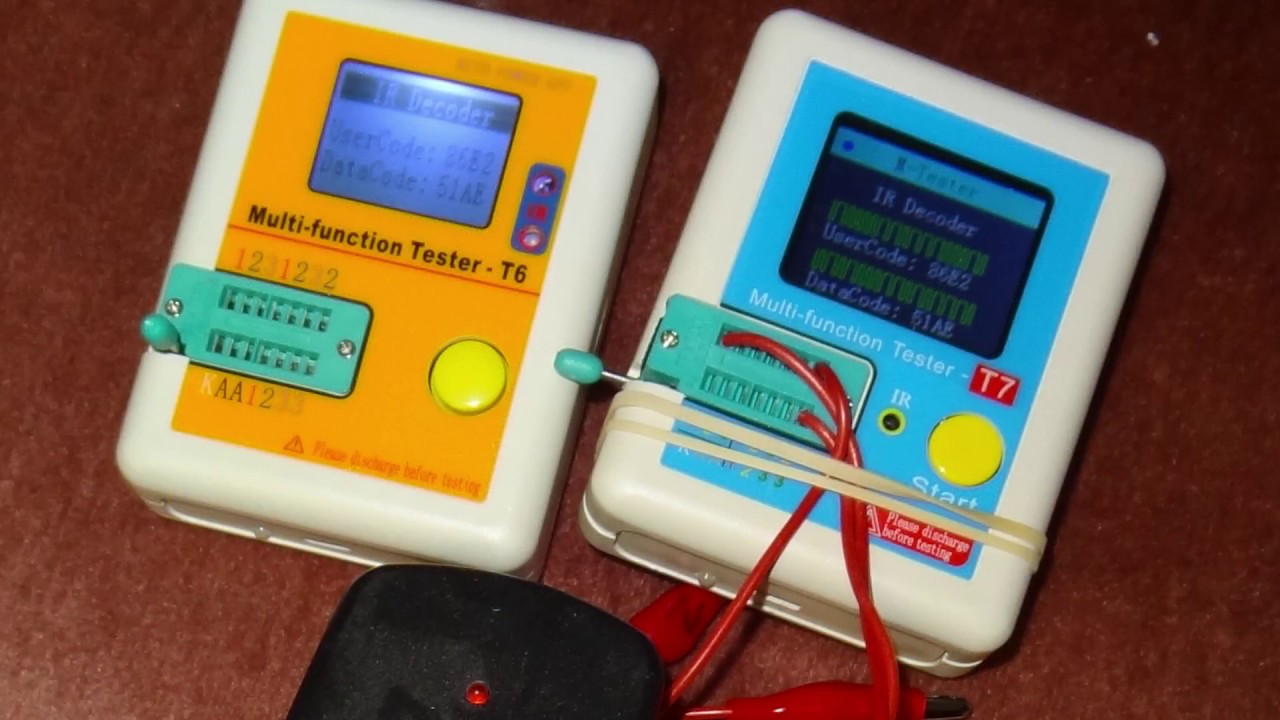

LCR-T7 TFT Transistor Tester Diode Triode Capacitance ESR Meter LCR MOSFET T6 And Peak atlas compare

LCR-T7 TFT Transistor Tester Diode Triode Capacitance ESR Meter LCR MOSFET T6 And Peak atlas compare

0:00:00 Capacitance and ESR compare different holes
0:01:16 Resistor measurement different holes
0:02:27 Remote code reading
0:02:50 TICP106M Thyristor
0:03:16 ZTX316 NPN Transistor
0:04:02 2N3819A N-JFET
0:04:21 BT137 600D Triac
0:04:42 Zener 10 Volt
0:04:56 Zener 24 Volt
0:05:17 Capacitors different ESRs different holes
0:05:46 Capacitors adding series resistors to simulate ESR
0:05:56 10 Micro fared Electrolytic
0:06:06 2200 Micro fared with parallel loss leakage resistor added
0:06:21 Simulated ESR and Leakage (Loss)
0:06:46 Inductance on open circuit transformer
0:06:56 Inductance on short circuit transformer
0:07:06 BDX54B BJT PNP Transistor
0:08:02 All 3 meters
0:08:06 Green LED
0:08:16 BC138 NPN Transistor
0:08:56 BC547B NPN Transistor
0:09:36 ESR variation between holes 450 Micro fared capacitor
0:10:01 ESR variarion between holes 47 Micro fared capacitor
0:10:31 IR Codes
0:10:55 END

Conclusions
ESR reads fdifferent depending on which holes you use on both meters

The T6 Didnt seem to read the 24 volt Zener

On one occasion the Peak atlus meter recognised a darlington transistor that the others didnt see

The T6 came from BANGGOOD
The T7 came from AMAZON- Link is:-

https://www.amazon.co.uk/gp/product/B...

The Peak Atlas meter used was 15 years old

The T7 wouldn't turn on when the internal battery voltage reached 3.55 Volts
The T6 Lasted longer- though it has a smaller Black and White Display

The T6 has a faster start up time..
