Home made RC airplane_Mini Beeker_미니 비커

Specification _ 부품 상세표
Wingspan : 600mm (Length : 570mm)
(Main Wing - 600mm x 150mm, Tail Wing - 300mm x 110mm,
Vertical Wing - 110mm x 150mm, Body height 130mm, Body width 50mm)
Weight : 103.3g
Battery (2Cell 300mah) : 17.1g
Flying weight : 120.4g (Including 2Cell 300mah battery)


Transmitter : FLYSKY Transmitter FS-i6
Receiver : FLYSKY FS2A 4CH AFHDS 2A Mini Receiver
Motor : 1306-3100kv Brushless motor, Shaft Dia 5.0mm
6A ESC (Electric Speed Controller) for Brushless motor
3.7g Micro servo : 2pcs
Battery : 2Cell 300mah Li-Po
Propeller : 5x4.3x3 (5 inch, 3 blade)
Control Horn & Clevis : 2pcs each
Push rod connector stopper (Pushrod Linkage Stopper, Rods end adjuster) : 2pcs
Steel wire (∅0.8mm~∅1.5mm) : 35mm x 2pcs
Foam board : 3t
Carbon fiber sheet : 0.5t x 3.0mm x 130mm – 2pcs
0.5t x 3.0mm x 320mm – 2pcs
0.5t x 3.0mm x 400mm – 2pcs
0.5t x 3.0mm x 410mm – 2pcs
0.5t x 3.0mm x 150mm – 2pcs
0.5t x 3.0mm x 75mm – 2pcs
0.5t x 3.0mm x 500mm – 1pcs
Carbon fiber rod : ∅1.2 x 250mm – 2pcs
Carbon pipe (Tube) : ∅2.0 x 120mm – 2pcs
∅2.0 x 60mm – 1pcs
∅2.0 x 20mm – 2pcs
∅2.0 x 10mm – 1pcs
Shrink tube (수축튜브) : ∅2.0mm x 10mm – 2pcs



Transmitter : FLYSKY Transmitter FS-i6
https://www.aliexpress.com/item/32702...

Receiver : FLYSKY FS2A 4CH AFHDS 2A Mini Receiver
https://www.aliexpress.com/item/33040...

Motor : 1306-3100kv Brushless motor, Shaft Dia 5.0mm (You can choose similar one)
https://www.aliexpress.com/item/32719...

6A ESC (VGOOD Brushless ESC)
https://www.aliexpress.com/item/40003...

3.7g Micro servo : 2pcs
https://www.aliexpress.com/item/40006...

Battery : 2Cell 300mah
https://hobbyking.com/en_us/turnigy-n...

Battery : 1Cell 300mah Li-Po
https://www.aliexpress.com/item/40011...

Propeller : 5x4.3x3 (5 inch, 3 blade)
https://www.aliexpress.com/item/10050...

Control Horn & Clevis

Carbon fiber sheet : 0.5t x 3.0mm

Carbon pipe (Tube) : ∅2.0 ~ ∅10mm

Carbon rod : ∅0.8 ~ ∅11mm

Push rod connector stopper (Pushrod Linkage Stopper, Rods end adjuster)

Steel wire (∅0.8mm~∅1.5mm)



How to download the above video reference material.
(Web hard _ Please refer as follows) _ 아래 참조
(아래의 URL 로 들어오신후, 해당 폴더를 찾으시면 관련 파일들의 다운로드가 가능합니다.)
URL : http://www.ssamlee.synology.me:5000
Username (계정 아이디) : visitor
Password (비번) : Guest123
You can find folder name as belows,
File Station
homes
visitor (You can find each folder name and enter it. _ 각각의 폴더명을 찾아서 들어오세요.)



Related Videos _ 관련된 영상 (RC)

Home made RC toys_Micro RC Car_63mm 초미니 RC자동차
   • Home made RC toys_Micro RC Car_63mm 초미니 RC...

Home made RC Flying bird_하늘을 날으는 새_Ornithopter
   • Home made RC flying bird_하늘을 날으는 새_Ornitho...

Home made RC Robot_Caterpillar Robot_애벌레 로봇
   • Home made RC Robot_Caterpillar Robot_애벌레 로...

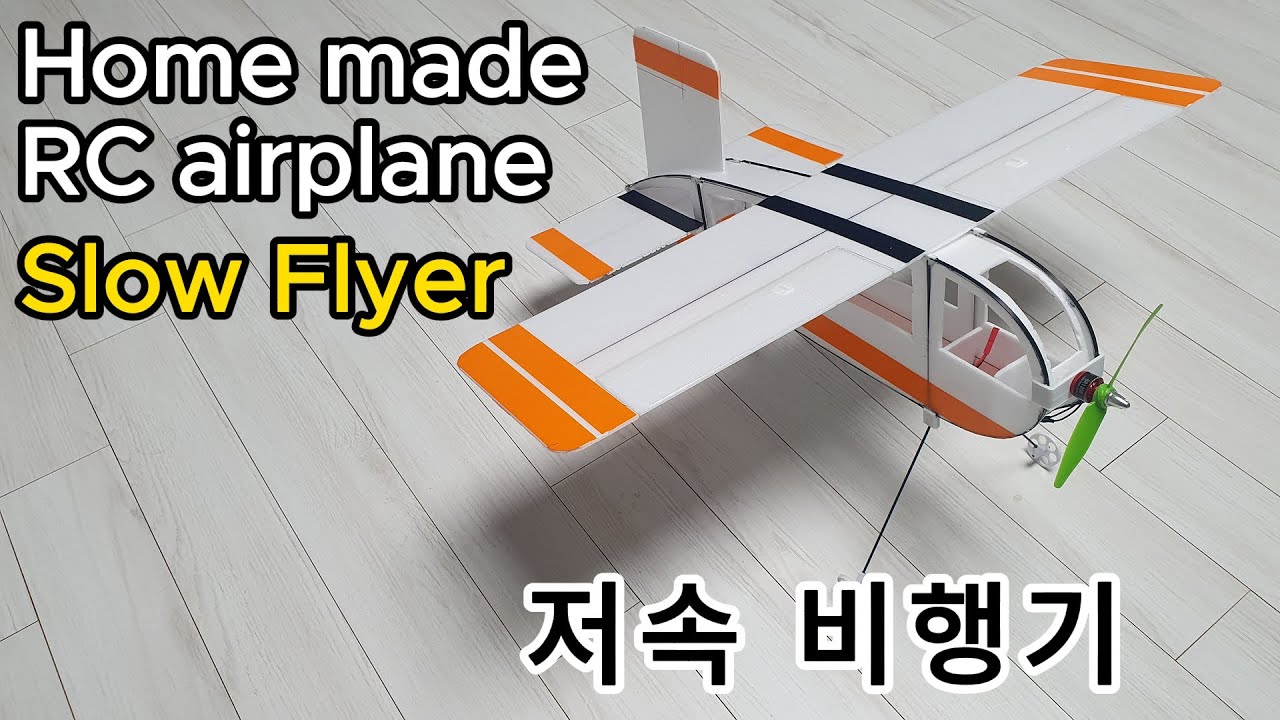

Home made RC airplane_Slow Flyer_저속 비행기
