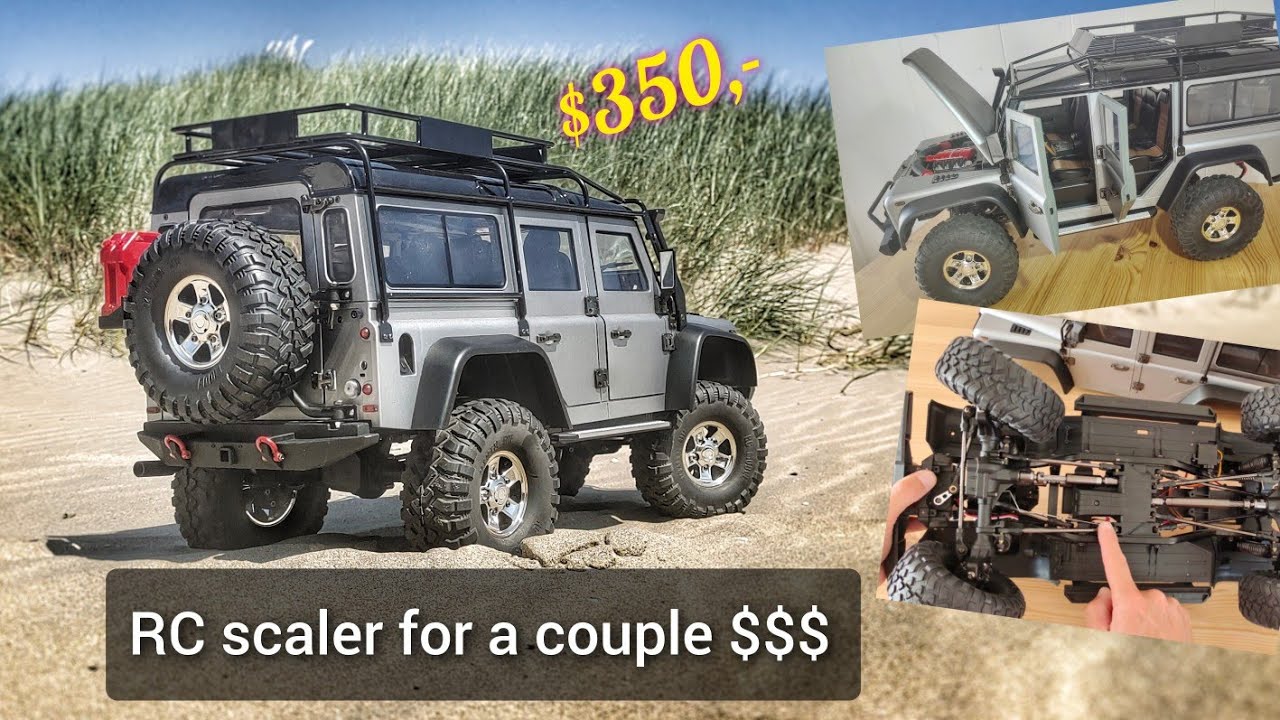

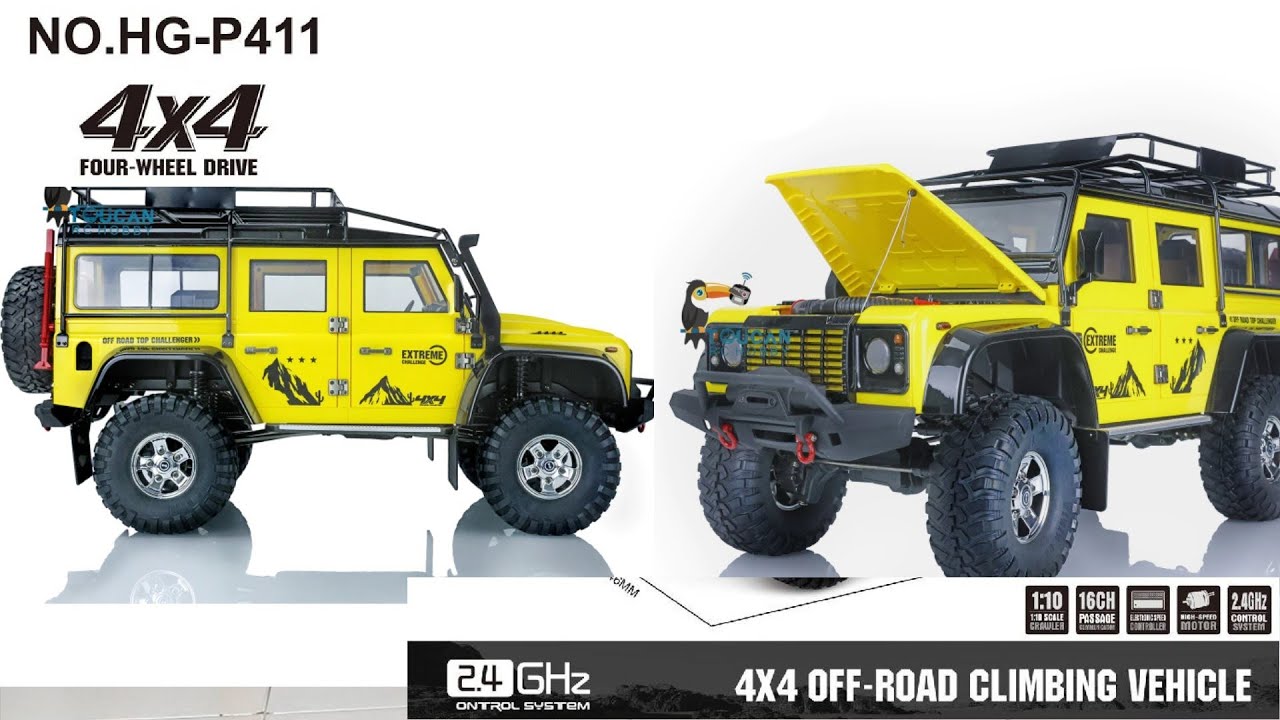

UNBOXING HG P411 TRASPED | 1/10 2.4G 4WD | 16CH TX4 RC | UPGRADED YELLOW

The Difference of Standard Version VS Upgraded Version:

Standard:(including axle electric differential lock, including iron frame)

Upgraded: (added on the basis of standard configuration): lights, sound effects, winches, smoke generators, row lights.

Basic information
Brand:HG TRASPED

Item No:P411
Scale: 1/10
Color:Yellow and blue
Age:14+

Speed: 3.4km/h(low gear)

8.5km/h(high gear)

Power System
ESC:45A independent esc speed controller

Motor:540 brushed motor(strong magnetic 12000rpm)

Servo: 9KG waterproof alloy gear digital servo

Transmitter
Frequency: 2.4G

Channel: 16CH
Remote Distance:≥ 100m

Battery: 6X 1.5V AA batteries(not included)

Battery
Not Included

Battery for the Trailer:7.4V 4500mAh 30C Lipo battery(not included)

Required Charging Time:About 4 hours

Other
Material:Hardware,plastic and electronic components

Low Gear:1:78.26

High Gear:1:31.3

Standard Car Weight:Around 6500g

Upgraded Car Weight:Around 7000g

Support Playing Time:About 30 minutes

Dimension
Car Size:595*246*320mm

Wheelbase: 281mm

Wheels Track: 149.5mm

Wheels Diameter: 118mm

Box Size:750*308*353mm

Features:

1. 45A ESC: can switch between brake and no brake mode, and switch between Li-PO and NI-HM lithium battery protection modes

a. ESC with low-voltage protection: When the battery voltage is too low, the ESC will start power-off protection

b. High temperature protection: When the working temperature of the ESC is higher than the set value, the ESC will start power-off protection; when the temperature drops to the normal value, it will return to normal

2. The portal axle structure also adopts the wheel side reducer structure. Such an axle structure can greatly improve the ground clearance of the chassis

3. The remote electric differential lock structure can independently lock or unlock the front and rear axle differentials to meet the needs of more terrain

4. Adjustable shock absorber, the best shock absorption effect can be obtained by adjusting the length of the shock absorber ring to compress or release the spring

5. The remote electric two-speed transmission ratio can be switched arbitrarily (TOP GEAR 1:31.3 LOW GEAR 1:78.26)

6. The throttle drive is adjusted in the middle position, the brake or no brake mode is switched, and the forward and reverse switching

7. Steering percentage amplitude adjustment, angle percentage and gearing percentage amplitude adjustment, forward and reverse switching

8. The simulated lighting system and simulated sound system are suitable for any model car on the market (sold separately)

9. Remote smoke generator control, close-open (sold separately)

10. Universal metal transmission rod with variable stroke

11. 2.4G-16 channel full scale remote control system

Note:

The battery and charger are not included in the package,you need to prepare it by yourself,recommended battery and charger.

Package Included:
1X RC Car(do not include the battery and charger)

1X Operating Instructions

12X Nylon Cable Ties 3*150mm

1X P411 Car Shell Sticker

1X 1.5mm Socket Head screwdriver

1X 2.0mm Socket Head Screwdriver

1X 2.5mm Socket Head Screwdriver

1X Cross Hexagon (Small)

1X Open End Wrench (Small)

2X Sponge Double-sided Stickers

1X Fuel Tank Base

1X Exhaust Vent

1X Wheel Assembly

1X Lifts

1X Fuel Tank

1X Rear Fender Bracket L/R

1X Front Fender Bracket L/R

1X Spare Tire Bracket Assembly

1X Mirror Assembly L/R

2X Fender R

2X Fender L

3X Flanged Nylon Toothed Lock Nut

2X Cutting-Edge Machine Meters

2X Latch Screw (ø2.5x11mm x M3)

2X Latch Screw (ø2.5x12mm x M4)

16X Hexagon Socket TM Wire (ø2x4mm)

1X Hexagon Socket Head HB Screw (ø2x6mm)

2X Hexagon Socket Head KB Screw (ø2.6x8mm)

3X Hexagon Socket Head TB Screw (ø2.6x8mm)

2X Cross PB Screw (ø1.7x8mm)
