P0405 EGR Sensor A Circuit Low (failed DPFE sensor)

2007 Ford Taurus EGR System testing. EGR valve function, flow and pressure sensor (DPFE) testing is shown, focusing on quick tests you can do on these systems to greatly speed up the troubleshooting process. The tests I demonstrate can be applied to any Ford/Lincoln/Mercury vehicle out there that uses this style of EGR/DPFE system. For more info on DPFE sensor testing, I’ve added a link below to the Ford Ranger case study I mentioned in the video.

Engine Performance Diagnostics chapter 24, page 9

Symptoms
check engine light (P0405, P1000)

Fix
replaced the DPFE sensor

Tests shown
understanding the P1000 code
using the Snap-On Troubleshooter to learn more about component testing
using scan data to check for DPFE signal voltage
understanding Ford EGR systems and how the DPFE monitors flow

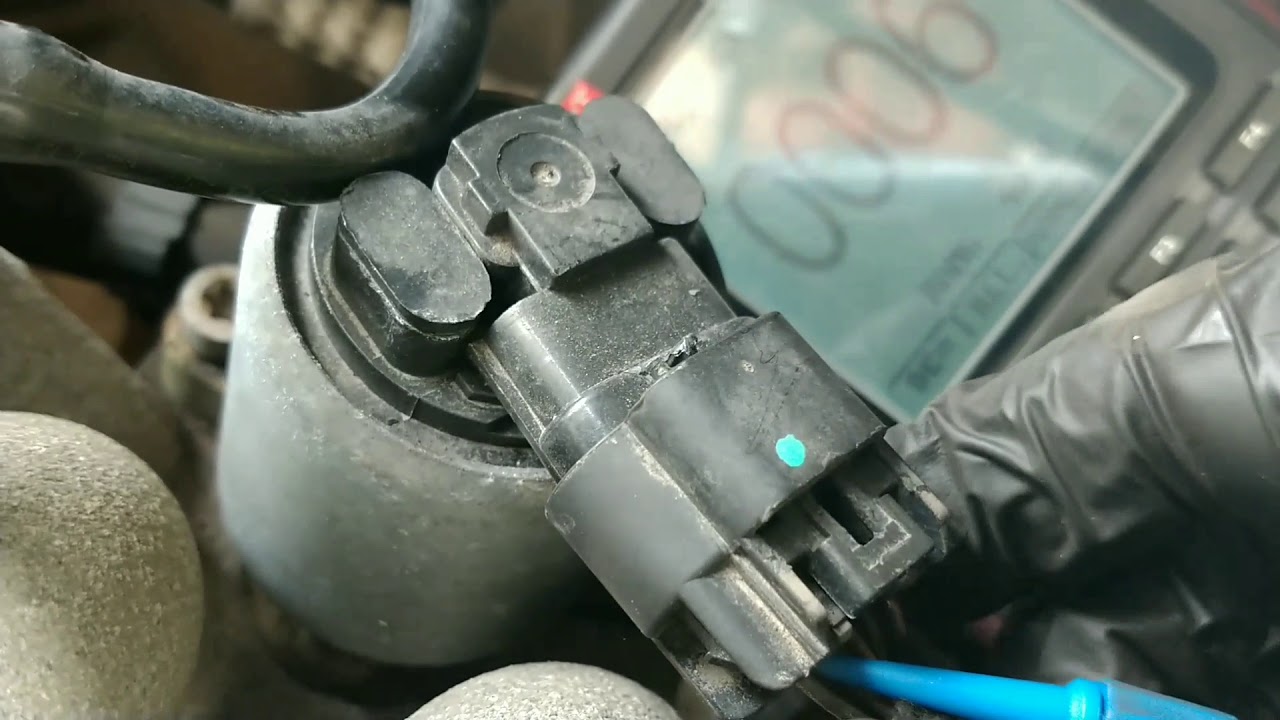

how to test a EVR (EGR vacuum regulator) solenoid with a test light
how to test a DPFE sensor signal circuit by unplugging the sensor

Tools used
Autel MS905 MaxiSys Mini Diagnostic System with Connector Kit - USA Version
https://www.jbtoolsales.com/autel-ms9...
Incandescent Test Light https://www.jbtoolsales.com/otc-3633-...
