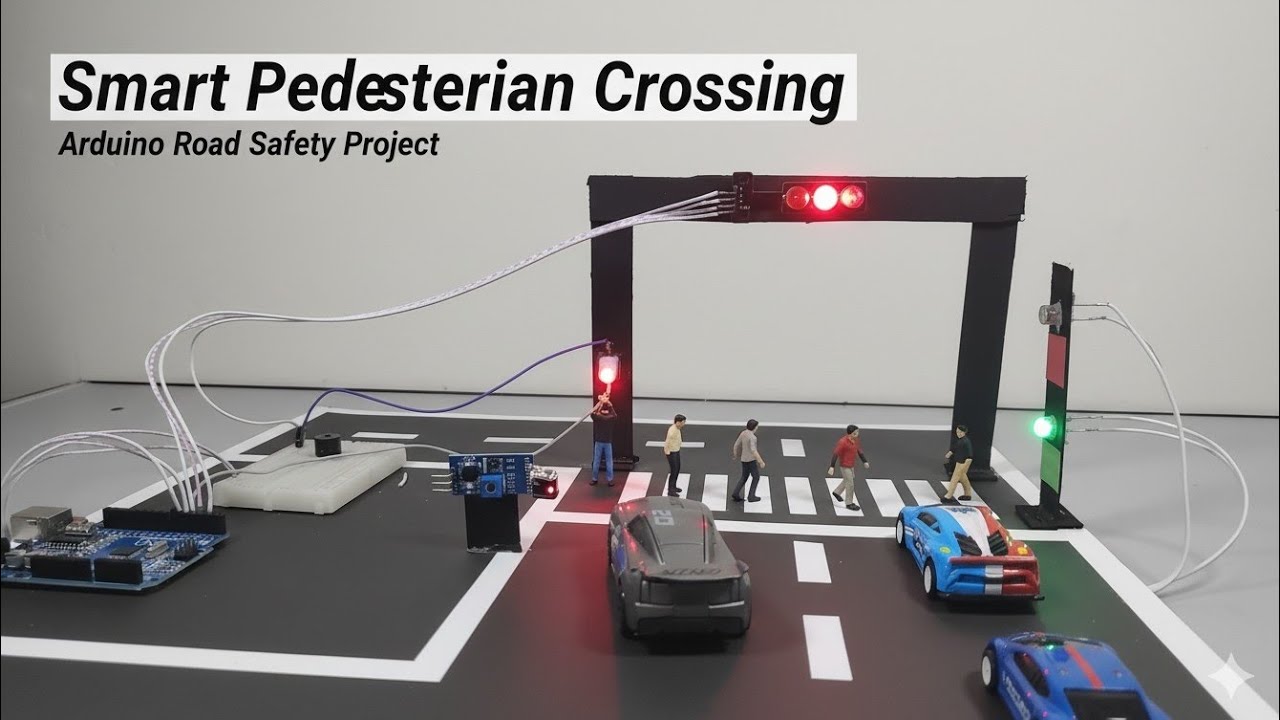

🚦 Smart Pedestrian Crossing using Arduino | Traffic Light & IR Sensor Project | Code and Diagram
Автор: The Wired World Of Qasim
Загружено: 2025-10-17
Просмотров: 1941
🚦 Smart Pedestrian Crossing using Arduino UNO | Automatic Traffic Light System
In this video, I’ve built a Smart Pedestrian Crossing System using Arduino UNO, IR Sensor, Traffic Light Module, Push Button, and Buzzer.
👉 When a pedestrian presses the button, the traffic light turns red for vehicles and green for pedestrians — allowing safe road crossing.
The IR sensor detects cars waiting at the signal, and the Arduino controls the timing for safe and efficient traffic management.
🔧 Components Used:
Arduino UNO
Traffic Light Module (Red, Yellow, Green LEDs)
IR Sensor (for vehicle detection)
Push Button (for pedestrian request)
Buzzer (for crossing alert)
Breadboard & Jumper Wires
(Optional) LDR for night mode demo
💡 Features:
✅ Automatic traffic control
✅ Pedestrian button system
✅ IR sensor detects vehicles
✅ Buzzer alert for crossing
✅ Educational road safety project
⚙️ Working Principle:
Normal mode: Cars move (green light ON).
Button pressed: Pedestrian request activates.
Arduino checks IR sensor → stops traffic safely → gives walk signal.
After countdown, system resets to normal mode.
📚 Perfect for:
School & college science exhibitions
BTech / Diploma / Engineering students
Arduino beginners and hobbyists
💬 Subscribe for more Arduino & IoT project tutorials:
👉 / @thewiredworldofqasim
🔗 Circuit Diagram & Code:
https://drive.google.com/file/d/18pZt...
#Arduino #TrafficLightProject #PedestrianCrossing #RoadSafety #ElectronicsProject #ArduinoUNO #SmartSystem #EngineeringProject
