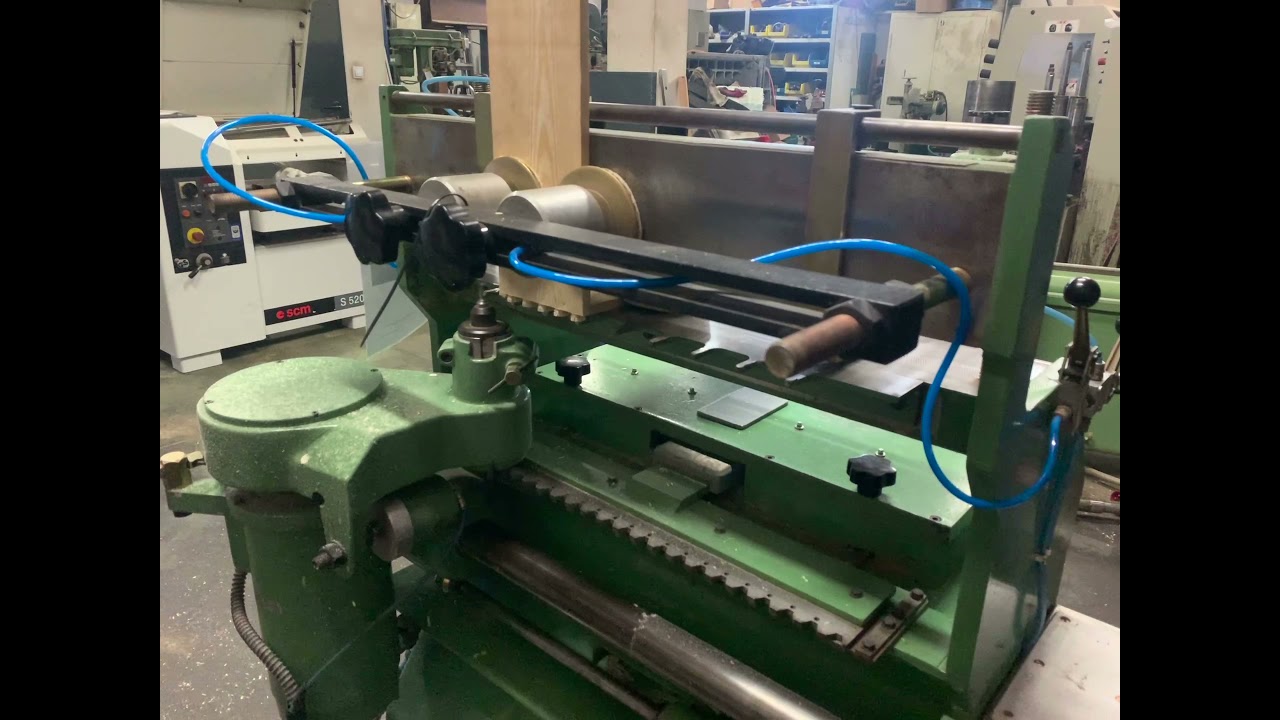

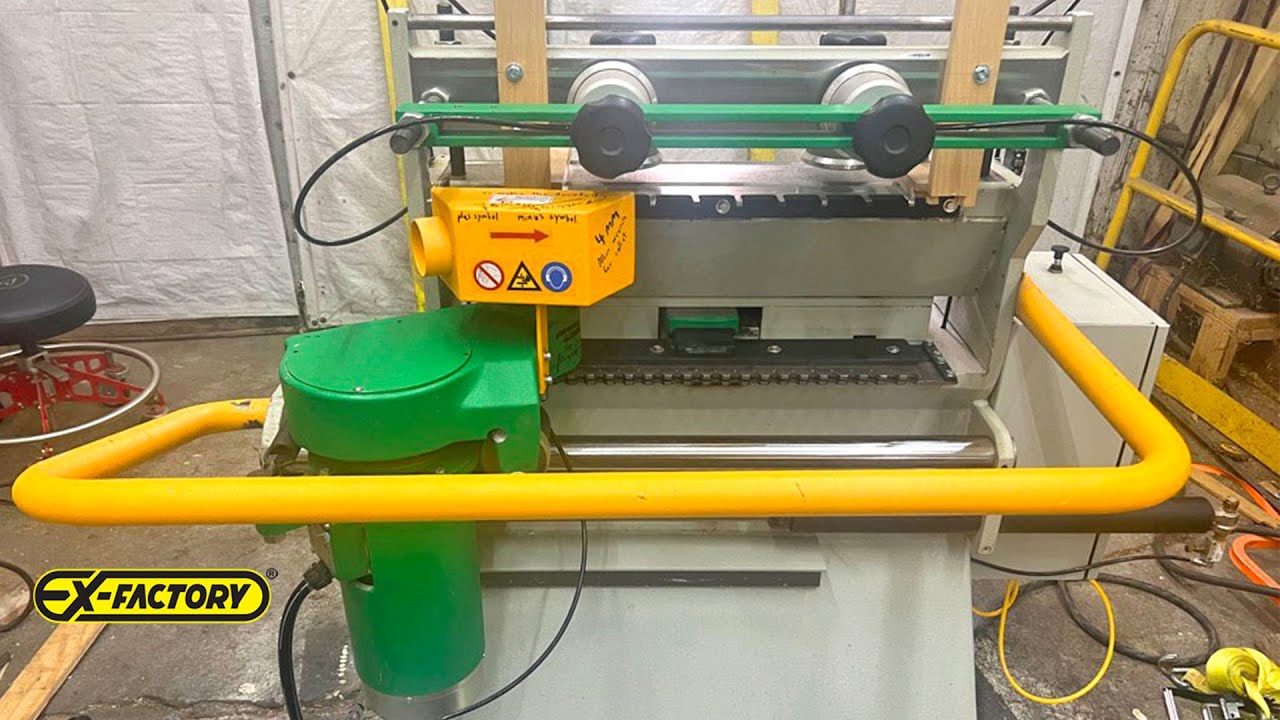

Automatic Dovetail machine Omec 750 CN - imported by Macoser Inc

Automatic Dovetail machine OMEC 750CN utilizes pneumatic clamps for material positioning, has a 20" capacity, 18,000 rpm spindle, and has a production rate up to 60 boxes/hour. The Omec 750CN asks the operator to input the dimensions of the parts to be machined and designs the dovetail pattern to best suit the material dimension and the desired effect of the operator (variable pitch). Working on one inch centers is no longer a requirement but an option as the CNC technology spaces the centers to meet your needs. Blowout is minimized as the speed of cut can be adjusted to both accommodate the material and the size of the joint. Once programs are set they can be saved for later recall. This is an excellent machine for the high-end dovetail drawer maker who wants to offer the best dovetail drawer possible exactly as the end user requests. The 750CN-I version is equipped with tilting arbor for production of "corner" drawer boxes or boxes with angles from 45 to 135 degrees.
