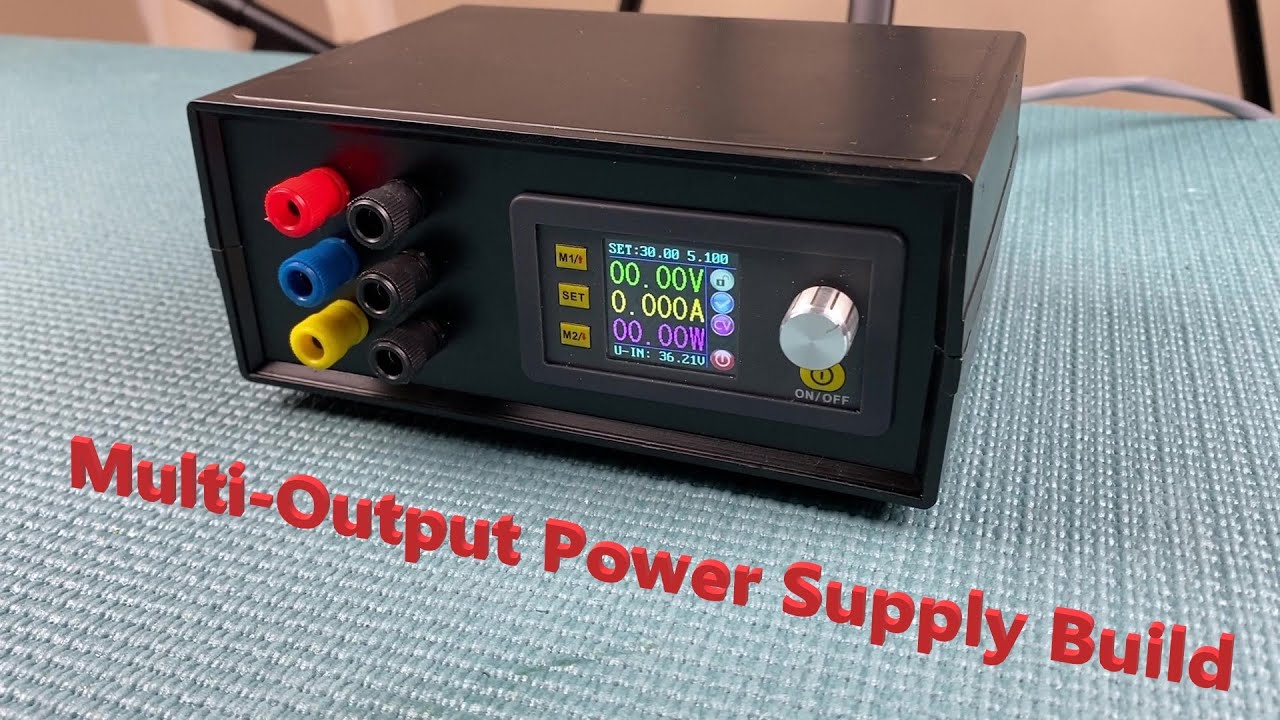

Building a multi-output power supply.
Автор: Crowded Garage
Загружено: 2021-02-20
Просмотров: 853
I'm going to build a power supply that provides 3 adjustable outputs in preparation for projects that require multiple DC voltages.
*** Affiliate Marketing Links: ***
The affiliate links help support Crowded Garage and I thank you for your support. Please be assured that I won't supply any links to products that I wouldn't use again or don't like as I don't want to misguide you.
1. 1.25 - 35VDC Buck Down Converter:
https://www.amazon.ca/Converter-Ajust...
2. 6-55VDC to 0-50V 5A Constant Voltage/Current Down Converter:
https://amzn.to/37JYr39
3. 165mm X 120mm X 68mm plastic project box:
https://amzn.to/3k3rpQd
4. DC 36V 10A Switching Power Supply:
https://amzn.to/3dqM92Z
5. Digital Voltage Meter (DVM):
https://amzn.to/36LIQQ3
Index:
00:46 - Small Buck Down Converter
01:27 - Buck Down Converter module
02:11 - AC/DC Switching Power Supply
04:27 - Banana Terminal Kit
05:44 - Plastic Project Box
06:17 - Component Layout In Project Box
06:51 - Painted Box
06:57 - Electrical Interconnect
08:50 - Power-On and Testing
Thanks for watching.
