Process Flow Diagram (PFD) in AutoCAD 2D | Complete Step-by-Step Chemical Engineering Project .
Автор: Sadiq Chemical
Загружено: 2026-01-14
Просмотров: 2
In this video, I have created a complete Process Flow Diagram (PFD) in AutoCAD 2D from scratch, following industry-style practices used in chemical and specialty chemical plants.

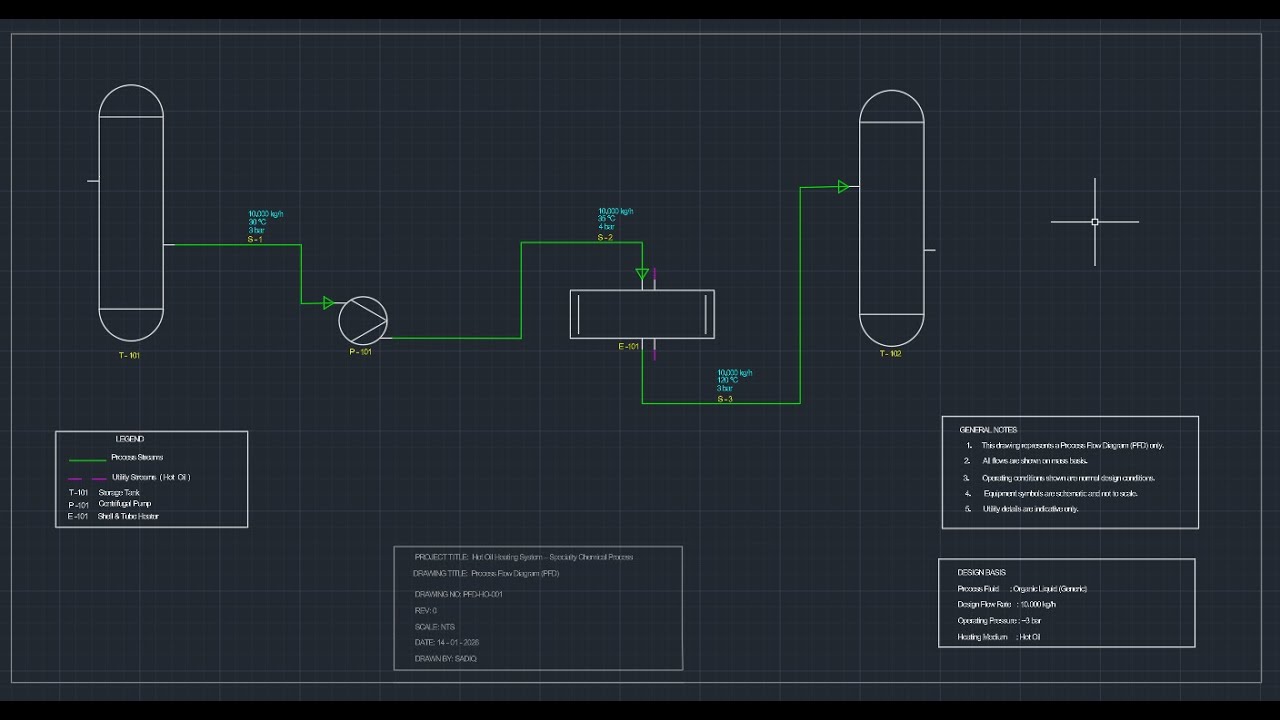

The project is based on a Hot Oil Heating System, where an organic liquid flows from a storage tank through a pump and a shell-and-tube heater before reaching the product tank.
This video covers:
• PFD development from a blank AutoCAD file
• Equipment symbols and tagging (T-101, P-101, E-101)
• Process stream routing and flow direction
• Stream data representation (flow rate, temperature, pressure)
• Utility integration using a hot oil system
• General notes, design basis, legend, border, and title block
• Difference between PFD and P&ID (practical understanding)
Software used: AutoCAD 2D
Application area: Chemical Engineering / Process Design / Specialty Chemicals
This video is intended for chemical engineering students and early-career engineers who want to understand how industry-style PFDs are actually prepared.
Feedback and suggestions are welcome.
