Fz-16 Air filter change
Автор: Ride with Ather
Загружено: 2016-04-28
Просмотров: 165266

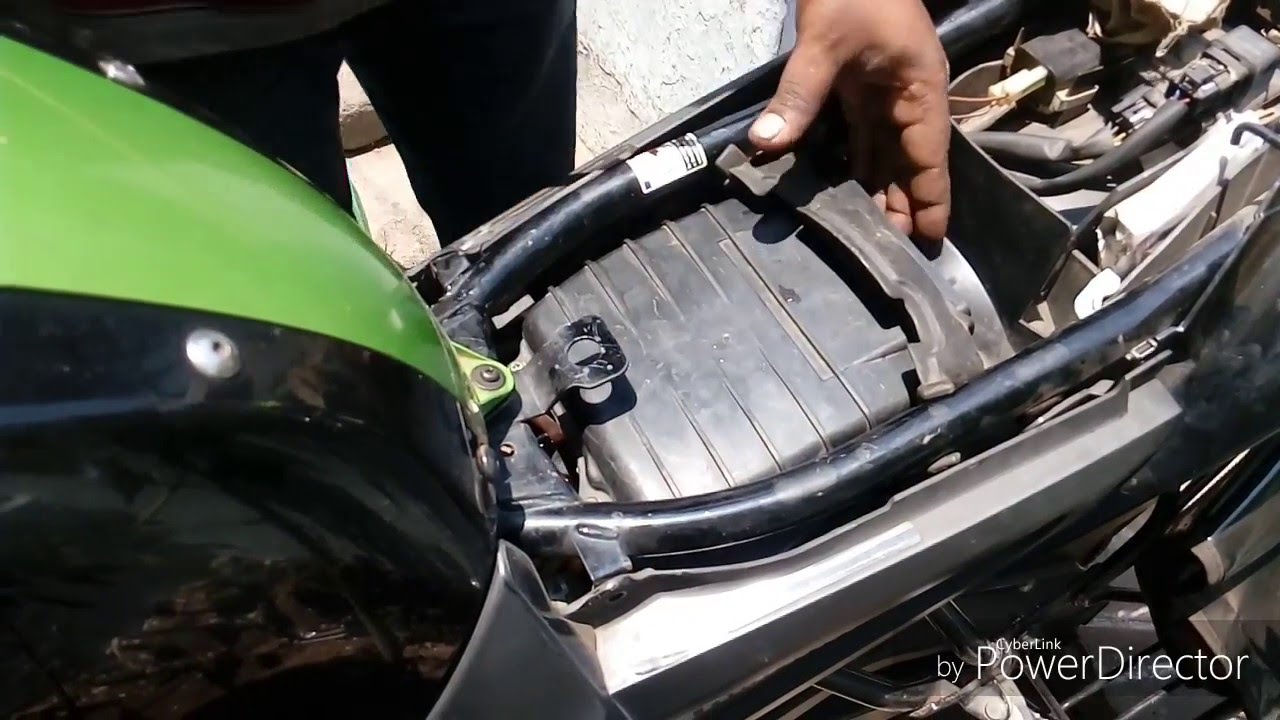

1) Open the back seat
2) Unbolt the side shield, first with hex key
3) And on the other side of the shield with a star screw driver
4) And just pull the shield and it comfortably comes out
5) Repeat the same on the other side
6)It should look somewhat like this once they are removed
7) With a star screw drivers remove the screws from the filter cover
8) Now remove this small pipe on the side of the filter
9) Remove the cover
10) Now the filter
11) Wipe the place where the filter sits with a dry cloth
12) Tap out the extra dust
13) With the help of a blower just clean it up by blowing through the mesh part (Not as shown in the picture)
14) Place it back
15) Put the lit back too
16) Put the screws back in place
17) Put the pipe back in its slot
18) Now put the shields back in place
19) Place them properly in the given slots
20) Now bolt the shields
21) Your throttle should be crisp
22) Its done, the bike is wet because it was just after a rinse that I cleaned the filter, hope its a good tutorial. Suggestions welcomed.
