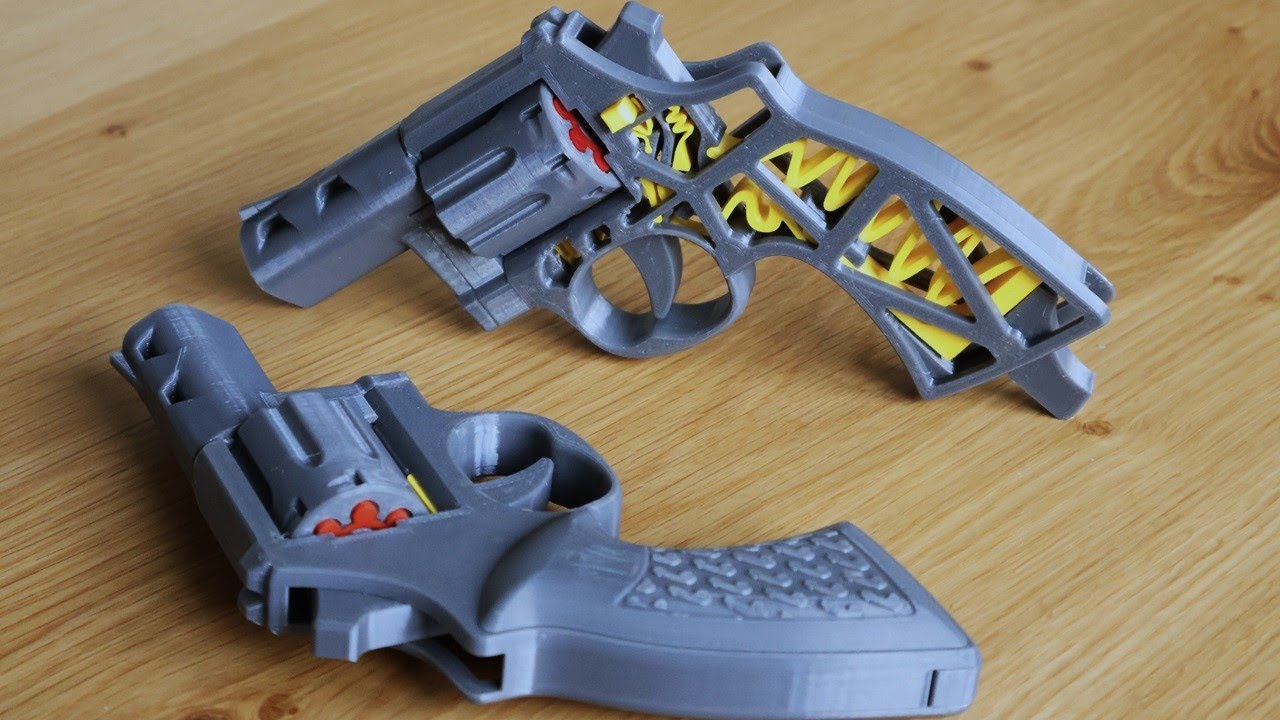

3D Printed Revolver - Single Action Prop Gun

Huge Update:
There is a new version which is double-action and there is no need to buy screws or any other parts, as the model is 100% printable WITHOUT supports and does not need any glue.

Files:
https://www.printables.com/model/552686
Creator:
   / @desteiner1786
Video:
   • DeSteiner Revolver-II | 3D-printed mechani...

Download link (filess are created by Steiner 3D @DeSteiner)
https://www.printables.com/pl/model/2...
Download, print, like the model and enjoy.

BoM:
There is a pdf under the thing files (revolver_exploded_2019-01-28.pdf):
https://cdn.thingiverse.com/assets/5a...
Just in case I reuploaded the pdf to my blog and added the list:
https://medyk3d.com/2020/09/3d-printe...
Google drive link:
https://drive.google.com/file/d/1jgDO...

1x M5x50 03 ISO 4762
1x Spring 4x18 ( 0,4) 27 from pen ****)
1x ST4,2x18 (non standard length) 26 (ISO 7049) *) **)
4x ST4,2x13 (ST4,2x11 to ST4,2x13) 25 ISO 7049 *)
4x ST4,2x10 (ST4,2x9 to ST4,2x14) 24 ISO 7049 *)
1x ST4,2x7 (non standard lenght) 23 (ISO 7049) *) ***)
1x ST4,2x4,5 (standard length) 22 ISO 7049 *) ***)
1x ST2,9x7,5 (non standard length) 21 (ISO 7049) *) ***)
1x M5x30 20 ISO 4762

*) "Sheet Metal" screw (ST)
Standardized available
lengths: 4,5/6,5/9,5/13/16/
19/22/25/32/39mm
**) flat tip recommended
***) flat tip required
For flat tips, get longer
screws and cut them to
the needed length.
****)outer diameter: max 4mm
wire diameter: ~0,4mm
length: min 18mm
compressed: max 6mm

0:00 Intro
1:14 Timelapses
2:28 Assembly
9:12 Bullets
11:03 Outro
