Washing Machine Simulation using PIC16F877A | Emertxe Embedded Systems Internship Project
Автор: deekshitha katta
Загружено: 2025-07-02
Просмотров: 23
This project demonstrates the simulation of a washing machine using the PIC16F877A microcontroller as part of my Embedded Systems Internship at Emertxe Information Technologies.
The washing machine was simulated using PICSIMLAB, with programming done in Embedded C using MPLAB X IDE and XC8 Compiler.

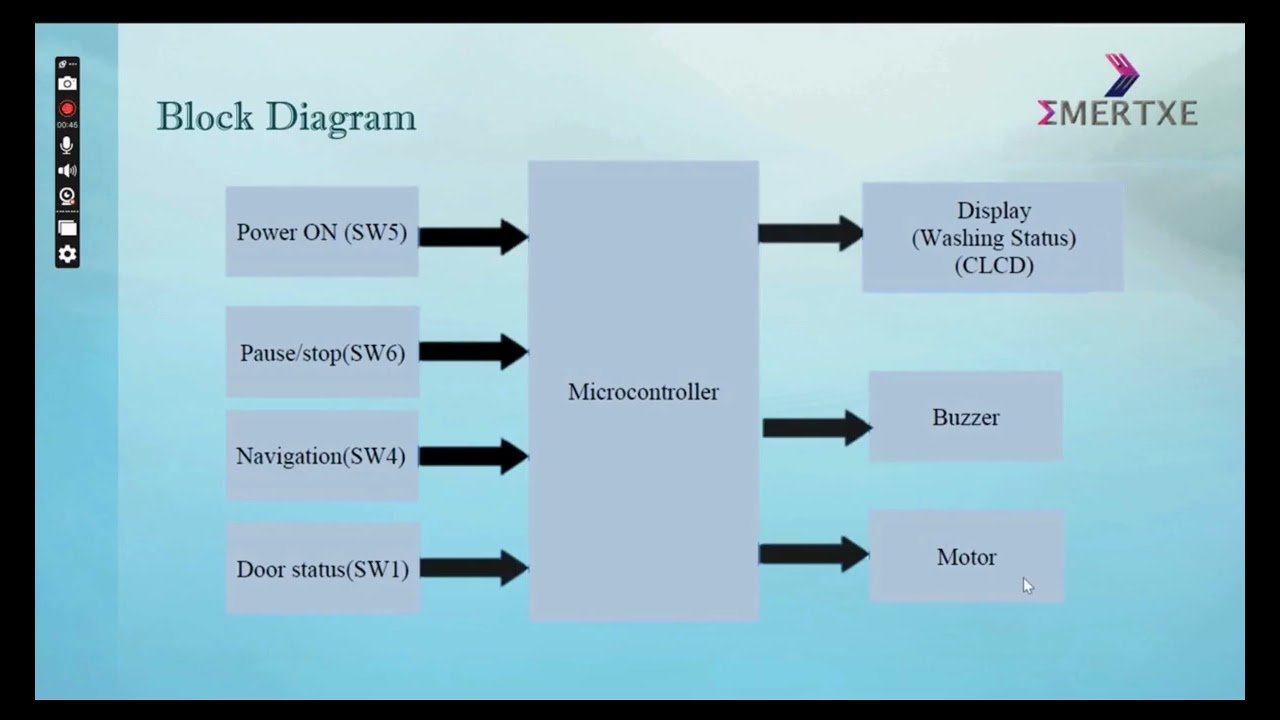

1)Key components used:
Microcontroller: PIC16F877A
CLCD (Character LCD)
Buzzer
Timers
Tactile Switches
Fan (motor simulation)
2)Features implemented:
Wash, Rinse, and Spin cycles.
Door safety alert using buzzer.
Display of wash status and timing on CLCD.
3)Skills Gained:
Embedded C programming.
Real-time system simulation.
Microcontroller interfacing.
Hands-on experience with simulation tools.
📍 Project by: Deekshitha katta.
📚 College: SRM AP university.
🔗 Internship Organization: Emertxe, Bangalore.
