Pinball Repair - Install New Rectifier Board
Автор: Dave's Think Tank
Загружено: 2023-03-20
Просмотров: 1970

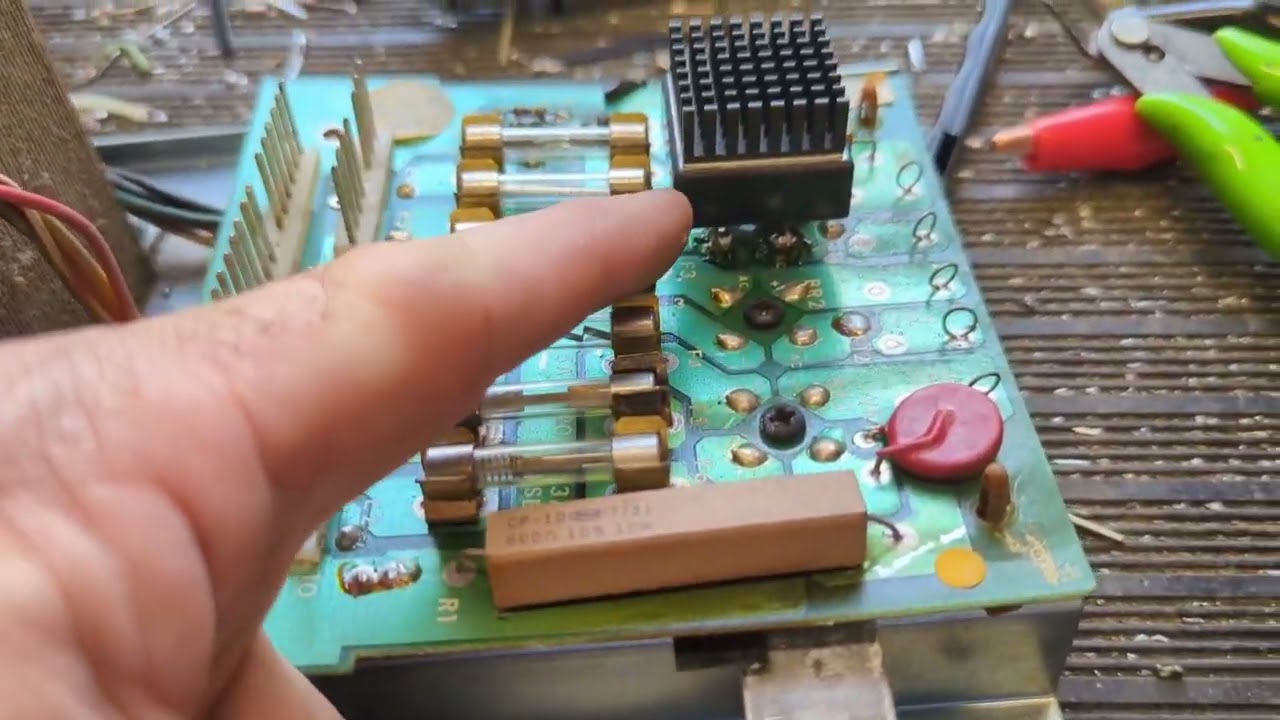

Dave fixes a number of wiring and connection issues in his 1978 Bally Star Trek pinball by installing a new rectifier board.
0:00 Introduction
1:10 The initial problem
1:48 Looking inside the backbox; bad connections, bad wiring
5:10 Closer look at the wiring, resulting burnt connectors
6:07 Original transformer and board, more horrible wiring
7:50 The new board
8:17 Using schematics to decipher issues from previous work
12:00 First good look at the old rectifier board
13:00 Pulling the transformer wires from the old board
14:43 First look at the new board mounted to the transformer
16:40 New board connected to transformer wires
17:46 Installed and reconnected
19:12 Discussion of wiring requirements for new connector
21:35 Crimping connectors onto the wires: Instruction
23:55 Stripping and connecting cut wires with shrink connectors
27:13 Heat shrinking the connectors
28:53 placing wires into connector, plugging it in, testing
30:56 The job is done; summary
32:29 Game play (1,000,000 point game!)
