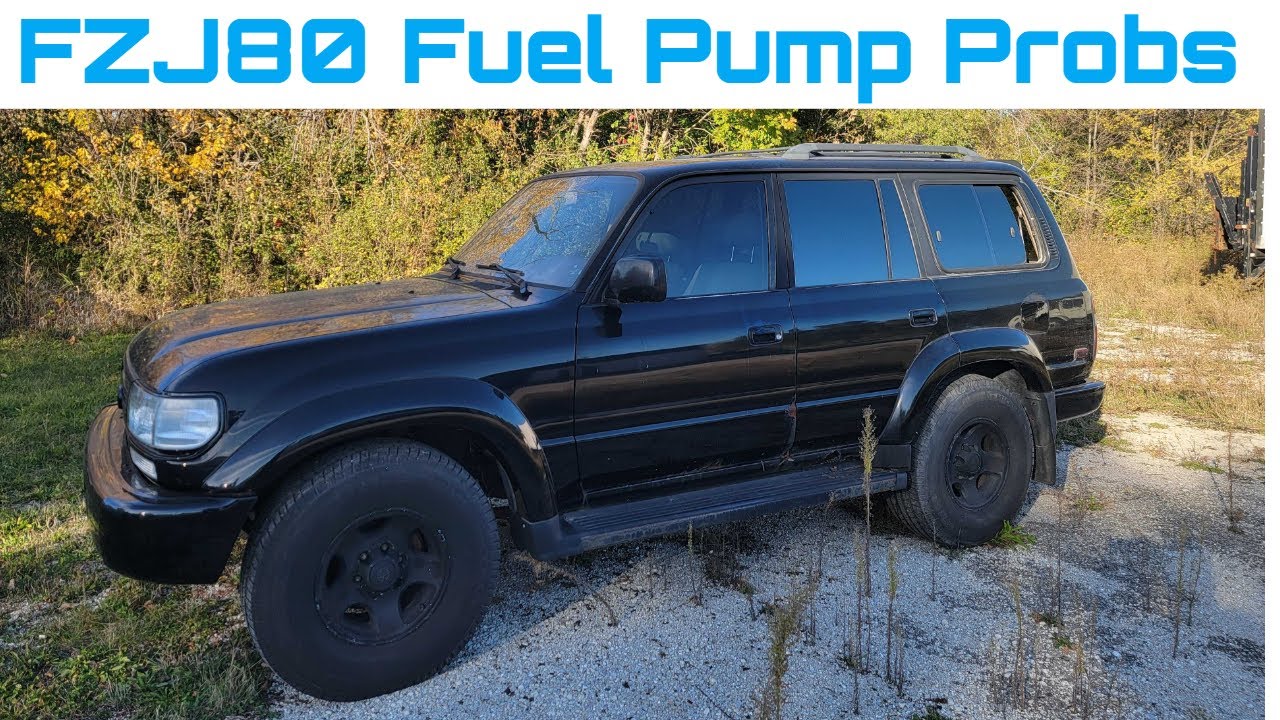

Land Cruiser Fuel Pump Replacement | Rusted Bolts Fix

If your Toyota Land Cruiser fuel pump is failing or you’re dealing with rusted fuel pump bolts, this video shows the full process of repair and replacement. I remove the old unit, drill out broken bolts, re-tap the threads, and install a brand new OEM Denso Supra TT fuel pump along with a fresh fuel level sending unit and gasket for a proper vapor-tight seal.

This is on my 80 Series Toyota Land Cruiser FZJ80 (1FZ-FE) project, but the process applies to many Land Cruiser models with similar fuel tank assemblies. If you’ve struggled with seized or rusted bolts, this video will help you get your truck running reliably again.

📌 Parts Used:

Fuel Pump Bracket: 23206-66900
Fuel Level Sender Gauge: 83320-69055
OEM Denso Supra Twin Turbo Fuel Pump

🔥 Highlights:

Extracting broken & rusted fuel pump bolts
Draining bad gas & prepping the fuel tank
Installing new gasket & pump assembly
Testing the new fuel pump & fuel gauge
Toyota Land Cruiser startup after 10+ years!

🔧 Follow along for more DIY Toyota repair, Land Cruiser builds, and off-road upgrades.

📲 Instagram: @LILEVO90
🛠️ Shop my tools/parts: https://www.amazon.com/shop/lilevo

🚙 More Land Cruiser project videos: https://bit.ly/Turbo-LC

Chapters
0:00 – Introduction & snapped bolts problem
1:00 – Pumping out old fuel
2:07 – Preparing for bolt extraction
4:20 – Drilling and extractor attempts
7:11 – Extractor fails, drilling larger & re-tapping threads
10:00 – Cleaning threads & helicoil backup kit
11:52 – Gasket prep & surface cleanup
13:15 – Comparing old vs. new sending units
15:42 – Installing the Supra twin-turbo fuel pump
18:12 – Crimping & heat-shrinking electrical connectors
20:25 – Extending wiring & clamp setup
22:00 – Wiring the sending unit (black/white/red)
25:00 – Securing level sensor & low fuel switch
26:00 – Starting the FZJ80
