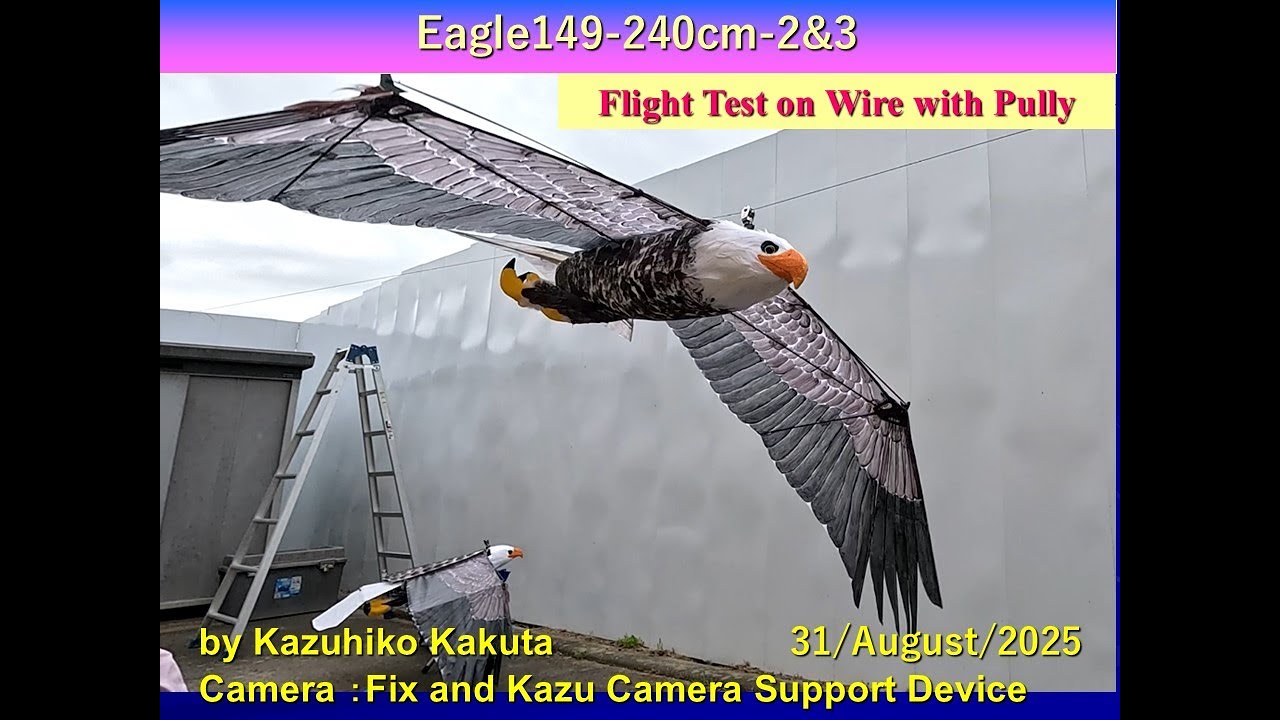

Ornithopter ハクトウワシ型羽ばたき機　Eagle149-2&3 Wingspan 240cm：Flight Test on Wire with Pully

Ornithopter ハクトウワシ型羽ばたき機　 Eagle149-2&3 Wingspan240cm ：Flight Test on Wire with Pully

世界最大の鳥型羽ばたき機Eagle147が故障し音楽イベントで飛べなくなった時の代替として、Eagle149-2とEagle149-3を製作。
製作過程はEagel149-1と同じ。

Pully（ケーブルの太さ6ｍｍまで-15ｍｍ径Pully）を設置して、今まで使っていたPElineで試験飛行。
PElineが細いため、Pullyが回転せず、Pullyの表面を滑っている。
　それでも、飛行はスムーズで、傾斜がすくなくても弱い羽ばたきで滑るように飛行。

Eagle149-240cm-2とEagle149-240cm-3を同じPELine上で同時飛行。

Eagle149-2 and Eagle149-3 were built as replacements for Eagle147, the world's largest bird-shaped ornithopter, when it broke down and was unable to fly at a music event.
The building process was the same as Eagle149-1.

A pully (cable thickness up to 6mm - 15mm diameter pully) was installed and a test flight was conducted using the same PE line as before.
Because the PE line was thin, the pully did not rotate and instead glided along its surface.
Even so, the flight was smooth, and even with only a slight incline, it glided with weak flapping.

Eagle149-240cm-2 and Eagle149-240cm-3 were flown simultaneously on the same PE line.


Width 240cm
Length 105cm
Wight 924ｇ+132ｇ (Lpo1500mAh3S）＝1056ｇ


MainGear 32P60T*2
FirstGea　48P80T*2
PinionWire　32T6T
PinionGear　48P12T
ESC　HTIRC Hornet Fixed Wing40A(2-4S)
Motor DYS D2822　2600Kv
Servo　Corona S-236MG*2


Eagle, Ornithopter, robot,羽ばたき機,鳥,ロボット 、Bald Eagle
