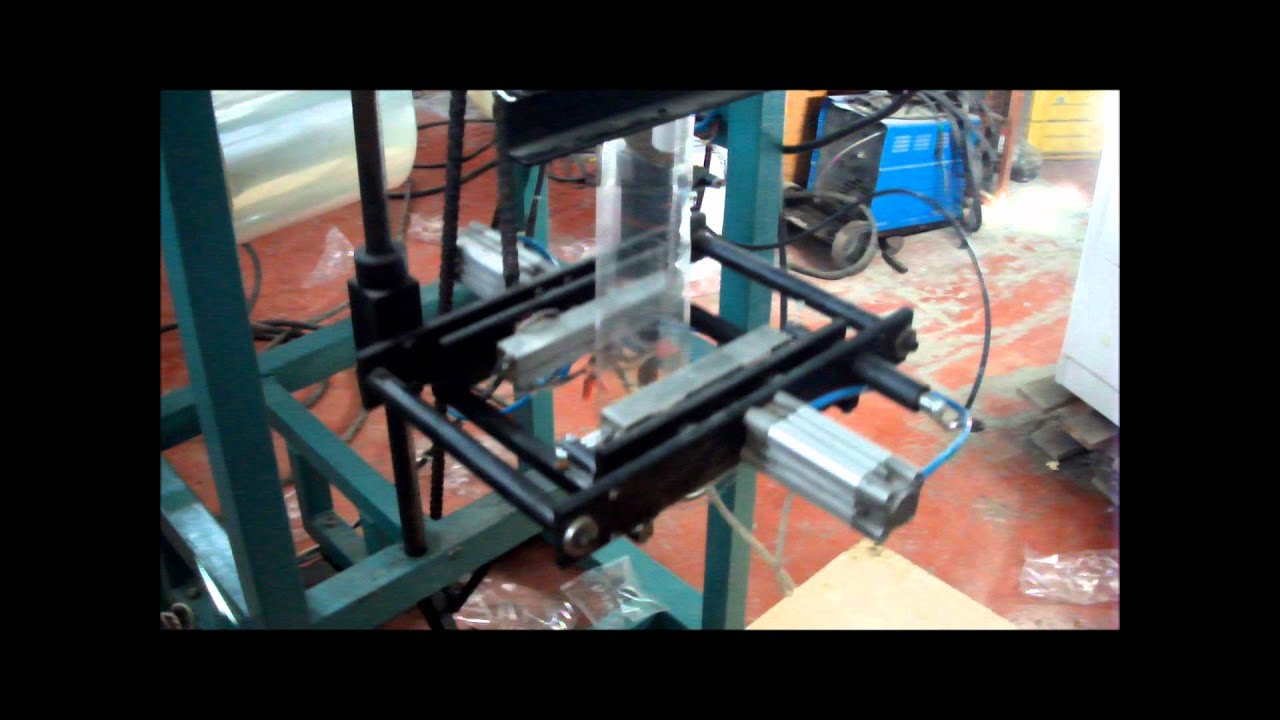

Easy adjustment of volumetric cup packaging machine video how to adjust grain vffs packer device

Easy adjustment of volumetric cup packaging machine video how to adjust grain vffs packer device
Any questions,feel free to contact me.
Email:sales@chinesepacker.com Skype:zhang.tracy6 Tel:0086-13262514660
http://www.chinesepacker.com
Chick here to subscribe us
   / @tracychinesepacker
Introduction:
The machine is suitable for packing non sticky, bulk or granular material, such as medical pills, food Stuffs, plant seeds, washing powder, coffee, sugar, desiccant etc The integrated processes of bag making, measuring filling, sealing cutting, counting and hot pressing codes can be done automatically. Packing material include several kinds of heat seal lamination, such as PET/plated AL/PE, PET/PE, NYLON etc.

Specifications:
1. All stainless steel cover meets to GMP standard.
2. Equipped with antipollution and dustproof device.
3. Automatic adjustment of pouch size and filling range.
4. Photocell controller is easy to manipulate.
5. The horizonal sealing uses high temperature resistant bearing which will ensure the continuous operation of the machine without filling the oil regularly.
6. The operation facility is controlled by American intel computer, all function is displayed with digital screen.
7. Minimum sealing temperature variation employs PID temperature, the tolerance is controlled by ± 2%.
8. Sealing part: roller spend process is special designed and the effect of sealing is very well.
9. Equipped with easy open system.
10. have gained the European CE certification

1. Sealing ways: 3 sides or 4 sides
2. Bag size: Length: 55-110mm
Width: 30-80mm
3. Filling range: 5-40 ml
4. Capacity: 40-85 bags/min
5. Power: 1.5KW,220V,50HZ
6. Dimension(L*W*H): 600X 790X1780 mm3 (L*W*H)
7. Weight:350 KGS

Our services:
A-The whole packing system
The Seller ensure the whole packing system can get to the requested capacity, accept and cooperate with the Buyer
to pass the final testing of the whole system.
B-On-site installation:
The Seller supply the on site installation for the whole packing system, but the fees including air tickets, foods,
hotel and translator in this period should be paid by User,the subsidy is 50USD/day.
B-Technical support
The Seller supplies the technical support of the whole use life of the system,including the vertical packing machine,
and theprocedures.
C-Spare parts supply
The Seller should supply the quick-wear parts with the machine, to help the Buyerin further using. In the quality
guarantee period, the Seller will supply the broken parts for free, except the easy worn parts or the damage is
caused by misoperation.After the guarantee period, the Seller will supply all the parts that the User need for the
whole use life of the machine in cost price.
