Transferring an antenna design file from antenna Magus to CST Studio

Transferring an antenna design file from Antenna Magus to CST Studio may necessitate human intervention due to the disparate file formats and structures of the two software applications.

This is a comprehensive instruction on how to approach this process.


Exporting from Antenna Magus: Save the Antenna Magus file:

Store your antenna design file in Antenna Magus using a distinctive name.
Exportation:

Export the antenna geometry from Antenna Magus in a universally compatible format for importation into CST Studio.
Configuration of Export Simulation:

If feasible, export the simulation configuration, encompassing boundary conditions, excitation sources, and material properties.
Store this information in a text file in a retrievable format for future reference.
Importation into CST:

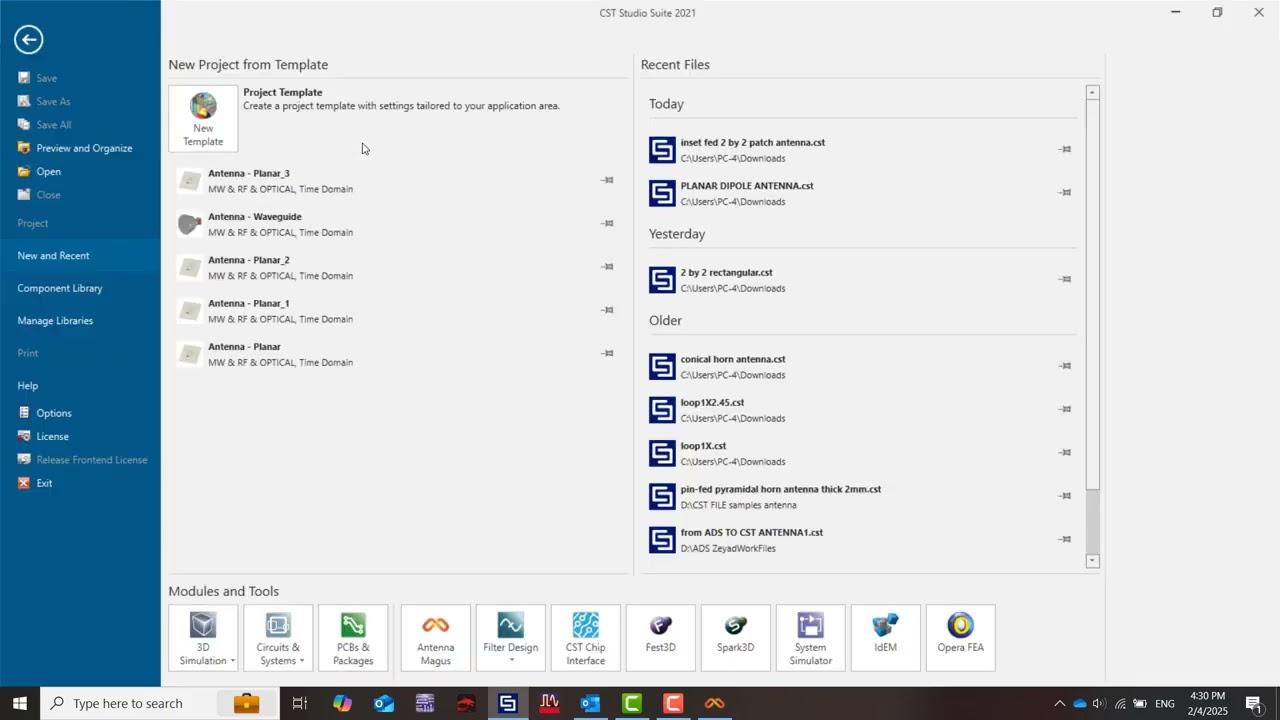

Initiate a New Project in CST:

Launch CST and initiate a new project.
Import Geometric Data:

Import the exported antenna geometry into CST software. This is often accomplished via the 'File' - 'Import' menu.
Modify Units and Scale:

Verify and modify the units and scale in HFSS to correspond with those utilized in CST Studio. Uniform units are essential for precise simulations.
Reproduce Excitations and Boundary Conditions:

Manually replicate the excitation sources and boundary conditions in Antenna Magus utilizing the data exported from CST Studio.
Characteristics of Materials:

Specify the material attributes in CST utilizing the data exported from Antenna Magus. Meshing:

Generate the mesh for the geometry in CST. Modifying the mesh settings according to the simulation's requirements may be necessary.
Configuration of Simulation:

Configure the simulation in CST by establishing the solver settings, frequency range, and additional parameters.
Validate and Execute the Simulation:

Examine the configuration meticulously to confirm that all elements are correctly set up. Then, execute the simulation and validate the outcomes.
