How to Set Up Cables on a Celestron CGX L Mount for Astrophotography using a C11 Telescope

This video describe the cable set up needed to capture images of celestial objects using a Celestron CGX-L Equatorial Mount with a C11 Optical Tube Assembly (CGE Dovetail) model A-XLT.

Below are 14 cables needed for astrophotography using a Celestron CGX-L Mount and a C11 Telescope:

1- AC Adapter – 5 Amp Item #: 18780 (Celestron AC Adapter)
Connect from the CGX-L Mount 12V 4A to 12V-2 on the 4x Smart Dew Heater Controller using the 3 foot accessory cable that comes with the Celestron AC Adapter

2- Apertura DC Power Cable for Celestron and ZWO - 5.5x2.1 mm, 0.5 Meter
This Apertura DC Power Cable connect to the 3 foot accessory cable that comes with the Celestron AC Adapter and then
connect from the CGX-L Mount 12V 4A to the 12V-2 input on the 4x Smart Dew Heater Controller

3- Pegasus Astro 12V/10A AC/DC Power Supply for Ultimate Powerbox (Smart DewHeater and Power Controller 4X AC Adapter)
Connect from the 4x Smart Dew Heater Controller to the Wall AC Outlet

4-XT60 to DC Adapter Cable XT60 Male/Female to DC 5.5mm X 2.5mm Male/Female Power Cable XT-60 Charging Cable for Fats-Hark Sky-Zone FPV Monitor Power,Drone Power Cord[1ft/2Pack/m-f]
Connect from the Pegasus Astro 12V/10A AC/DC Power Supply to the Smart DewHeater and Power Controller 4X

5- Thermistor for Smart DewHeater Controllers Item #:94037 (x2) (One thermistor connect to the Dew Heater Ring 11" an the other thermistor connect to the StarSense Autoguider)

6- 12V 5A/10A AC to DC Adapter (Camera AC Adapter)
Connect to the Wall AC Outlet.

7- Dew Heater Ring 11" (Comes with Power Cable)
Connect from the Dew Heater Ring 11" to the 4x Smart Dew Heater Controller

8- Orion Heating Band for 50 mm Finder Scopes and 2" Eyepieces (StarSense Autoguider Heater Strip)
Connect from StarSense Autoguider to the 4x Smart Dew Heater Controller

9- USB 3.1 USB-C to USB-A Female Adapter Cable Converter for Laptops (4 inch or 10.16 centimeter)
Connect from laptop USB C input to the Camera USB 3 Cable

10- USB 2.0 Hi-Speed Cable A to USB Type C M/Right-Angle, 10ft (3 meters)
or
USB A to USB C Cable 10ft (3 meters), 60W USB A to USB C Fast Charging Cable, Right Angle USB C
Connect from StarSense Autoguider to the PC Laptop

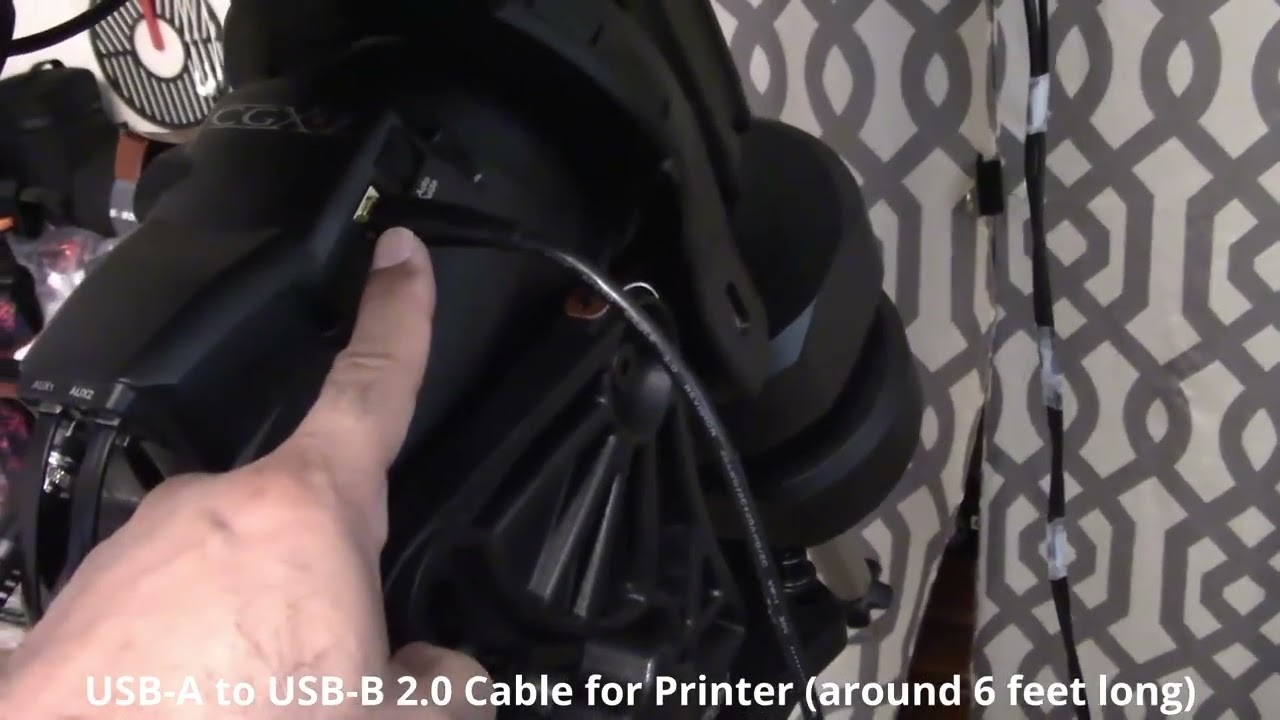

11- USB-A to USB-B 2.0 Cable for Printer, Gold-Plated Connectors, 10 Foot
Connect from CGX-L Mount PC input to the PC Laptop

12- ST4 Cable uses an RJ12 (6P6C) connector
Connect from StarSense Autoguider to AUX2 in the CGX-L Mount (about 6 feet or 2 meters)

13- ST4 Cable uses an RJ12 (6P6C) connector
Connect from to AUX1 in the Smart DewHeater and Power Controller 4X to the AUX 1 in the CGX-L Mount (about 6 feet or 2 meters)

14- ST4 Cable uses an RJ12 (6P6C) connector
Connect from the Focus Motor to AUX3 in the CGX-L Mount (About 1 feet or 30.5 centimeters)

Rig components:

Telescope: Celestron C11-A-XLT Optical Tube Assembly (CGE Dovetail)
Heater Ring: Celestron Dew Heater Ring - 11" with thermistor
Dew Shield: Celestron Aluminum Dew Shield with Cover Cap - 11"

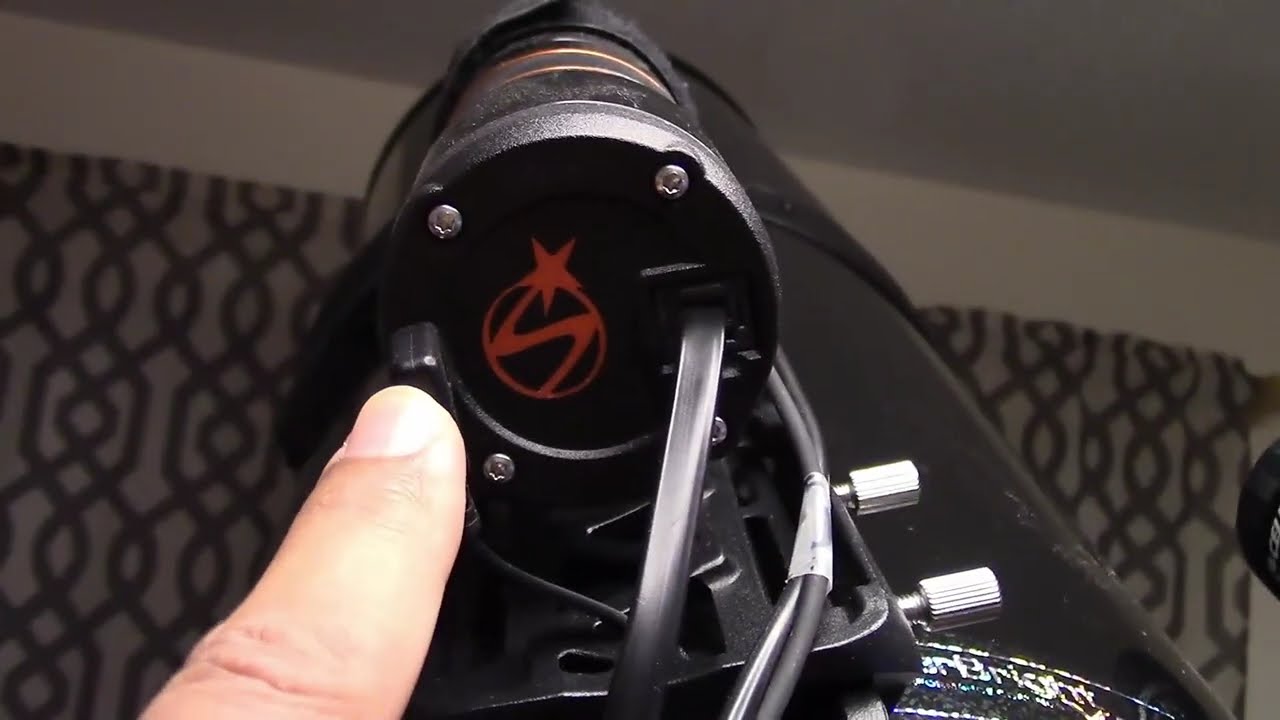

Autoguider: Celestron Starsense Autoguider with heating strip and thermistor
Finderscope: 9X50
Electronic Focuser: Celestron Focus Motor

Mount: CGX-L Equatorial Mount and Tripod
Polar Alignment Tool- PoleMaster with heating strip and thermistor
Power Controller: Celestron Smart Dewheater And Power Controller 4X
Computer: HP Laptop, Model 15-fc0093dx with Windows 11 Operating System

Image Train:
Lens: Celestron Reducer - Corrector Item #:94175
Adapter: SCT to 2" Adapter Item #:93661
Filter Drawer: SV226 M42 Telescope Filter Drawer - Effortlessly Switch Between 1.25" & 2" Filters for Perfect Astrophotography
Camera: SVBONY SV605MC (Binning 3)

Filters:
Astromania Luminance 2"
SvBONY SV227 Narrowband 2" Filter H-Alpha 5nm
SvBONY SV227 Narrowband 2" Filter SII 5nm
SvBONY SV227 Narrowband 2" Filter OIII 5nm
