6 Bit Random Number Generator Using Flip-Flops in Proteus || Proteus
Автор: Zain Ul Abideen
Загружено: 2020-12-18
Просмотров: 2425
In this project, the aim is to generate random numbers along with their
binary. This can be helpful in different games such as gambling, or games
which involves rolling of dice and producing new numbers every time.

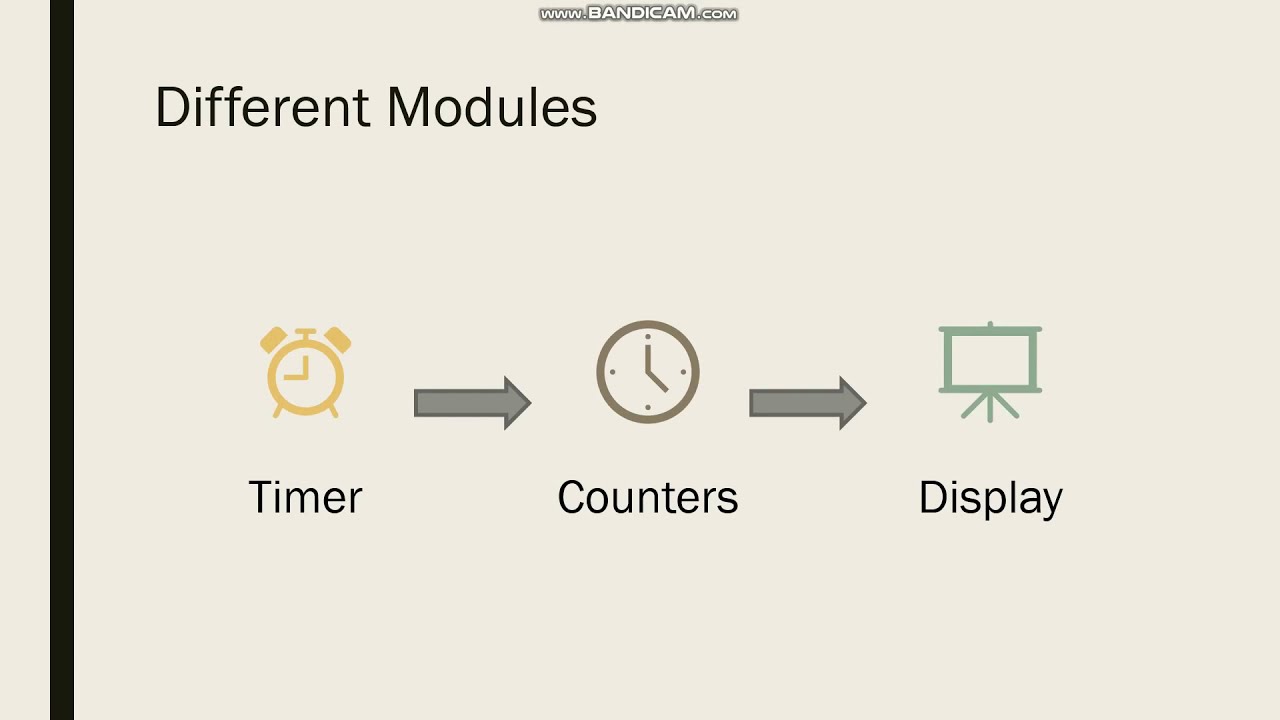

Whenever the simulation is started, the random numbers are generated and
to see the random number and binary there are two ways i.e. either we can
pause the simulation or the switch which is connected between the timer
and pulse is stopped or turned off. The number is then displayed on
segment display and binary is shown.
Components Used:
1. 555 Timer (1 in number)
2. Resistors (2 in number)
3. Capacitors (2 in number)
4. AND gate
5. OR gate
6. JK Flip Flops (6 in number)
7. Switch (1 in number)
8. Logic Probe (6 in Number)
9. 7-SEG Display (2 in number)
If You Are Intrested In Proteus File kindly email us at :
eshadowers@gmail.com
