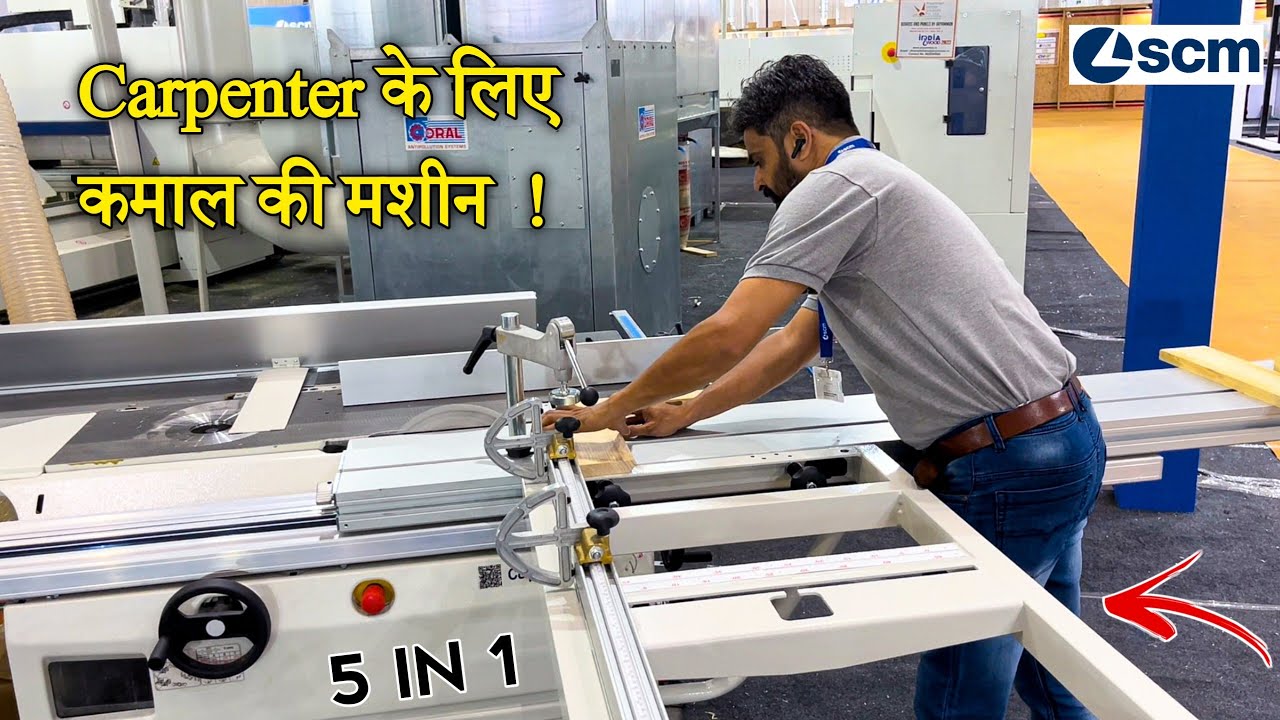

Minimax CU300c - SCM 5 In 1 Universal Combined Machine | कारपेंटर भाई जरुर देखें ये मशीन In Hindi

Minimax CU300c - SCM 5 In 1 Universal Combined Machine | कारपेंटर भाई जरुर देखें ये मशीन In Hindi


FEATURES:
INCREDIBLE CUTTING WITH THE NEW SAW UNIT AND SLIDING TABLE
SQUARING FRAME AND FENCE: MAXIMUM PERFORMANCE AS STANDARD
90˚. SIMULTANEOUS TABLES OPENING TOWARDS THE INSIDE OF THE MACHINE: EXCEPTIONAL ACCESS
Extruded anodized aluminium sliding table (dimensions 270 x 124 x 1600 mm) sliding on high precision hardened steel guideways
Squaring frame (dimensions 1200 x 650 mm) complete with:
telescopic fence with 2 crosscut flip-over stops
eccentric clamp
swinging arm support
Saw unit with 315 mm maximum blade diameter with scoring blade (option) installed (blade not included)
Simultaneous surfacing tables opening, at 90˚ , towards the inside of the machine
Adjustable spindle moulder fence with micrometric adjustment complete with vertical and horizontal pressers
Integrated fence, for parallel cuts and surface planing
Pre-setting for mortiser
New design of the dust-conveyor, to protect the cutter block, for further system safety increase
Belt driven scoring unit complete with blade
2 extra handwheels for the operating units movement
Professional fences
Xylent spiralknife cutterblock with 3 series of knives
Anodized aluminium tables for spindle moulder fence
Cast iron mortiser
Spindle moulder shaft of 30 mm diam




TECHNICAL DATA:

PLANER:
useful working width [mm] : 300
cutter block diameter (mm)/n. standard knives : 72/3
standard knives dimensions [mm] : 300 x 30 x 3
max. stock removal [mm] : 4
surfacing tables total length [mm] : 1510
thicknessing table dimensions [mm] : 585 x 300
feed speed on thicknesser [m/min] : 7
min. max. working height on thicknesser [mm] : 3 - 230
CIRCULAR SAW :
cast iron saw-spindle moulder worktable dimensions [mm] : 1115 x 335
blades tilting : 90˚- 45˚
max. saw blade diam. with scoring blade installed [mm] : 315
max. saw blade projection from table at 90˚ /45˚ [mm] : 100/78
max. squaring stroke (standard) [mm] : 1600
cutting width on parallel fence [mm] : 820
SPINDLE MOULDER :
max. useful spindle length [mm] : 100*
spindle moulder speeds (at 50 Hz) [rpm] : 3500/7000/10.000
max. tool diameter when profiling [mm] : 210
max. diam. of tool lowered under the table at 90 [mm] : 180
three-phase motors S6 : 5kW (6,6hp) 50Hz
exhaust outlets diameter [mm] : 120
