Husband Wife | Skyline Rebuild - Ep. 6 - PISTON RINGS & BORE HONE

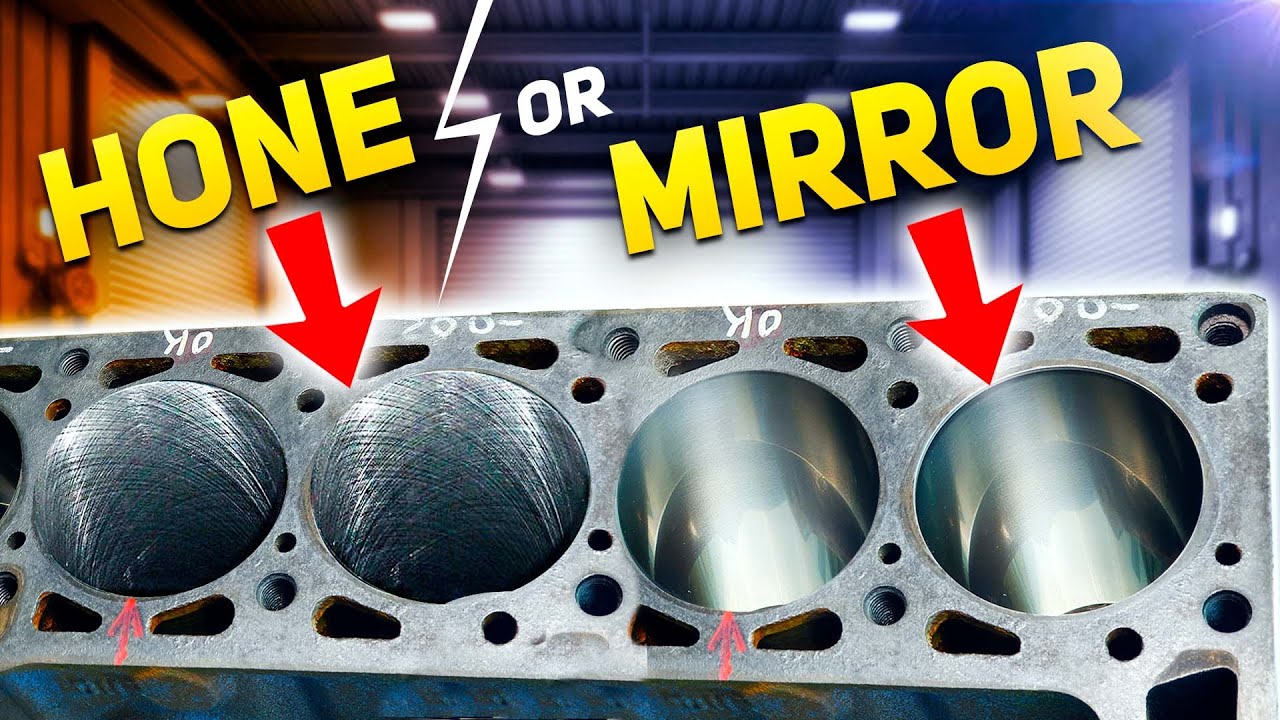

Now that the entire engine is disassembled, we can hone the cylinders and get the new piston rings gapped! Using the Flex Hone, we were able to achieve the desired cross hatch pattern compared to the near mirror finish that was on the cylinder walls before honing. Also, there were a few vertical scratches that i was able to hone away as well. Removing the old piston rings from the pistons was a fight. There was so much carbon build up on the rings that it seemed like they were welded on. Perhaps soaking the pistons in oil next time would do the trick (hopefully there isn't a next time though). As for the new piston rings, they didn't need to be gapped at all. They were within spec for tolerances so I'm skeptically surprised at how perfect they all seem to fit. Next episode, we'll start putting it all back together!

Follow the build!
https://www.instagram.com/datsubierum...

The build so far :

1991 Nissan R32 Skyline GTST Type M

ENGINE :
RB20DET Stock long block
Haltech Elite 2000 ECU Plug n' Play Kit + Wideband Controller
E Tuned by Jeff Evans @ https://www.evans-tuning.com/
Holset HX35W Turbo - T3 Twin Scroll Flange - 10cm Turbine Housing
1320 Performance Exhaust Manifold - Twin Scroll - Twin 44mm EWG - T4 Flange - SS
TiAL 44mm External Wastegate Dump to Atmosphere - 14.5psi springs
GrimmSpeed Manual Boost Controller
CX Racing Front Mount Intercooler Kit - 2.5” piping - 3” Core
ISR Modified 3” Downpipe - Catless - Stainless Steel
Autobahn 88 Test Pipe - 3” Stainless Steel - Catalytic Converter Delete
Top Speed Pro 1 Performance 3” Titanium Catback Exhaust
G Plus Oil Cooler / Oil Filter Relocation Kit - 10AN - 19 Row - Universal
ISR Performance Front Facing Intake Manifold - 90mm Throttle Body
ISR Performance Fuel Rail - 6AN Fuel Lines
ISR 1000cc Injectors
Aeromotive Adjustable Fuel Pressure Regulator
FMZ R35 GTR Coilpack Conversion Kit - Billet Bracket - Shortened Stalks
Wiring Specialties VR38 R35 GTR Smart Coil Conversion Harness for RB20
Mishimoto Aluminum Radiator
Nismo Radiator Cap
R33 GTST Clutch Master Cylinder
NPBoosted Longer Throttle Cable for Forward Facing Intake Manifolds
Chase Bays Universal Windshield Washer Reservoir
Evil Energy Universal Oil Catch Can
Evil Energy Universal Coolant Reservoir
HKS Billet Oil Fill Cap
Mamba T4 to T3 Divided CNC Exhaust Manifold Flange Adapter Kit
Conceptua Performance Tuning Braided Turbo Oil Feed Holset to RB20 Kit
Compressor V Band To Coupler Adapter For Holset
Turbo Heat Blanket
Turbo Guard - Black Mesh
Hood Lifter Damper Kit
Magnetic Oil Drain Plug
Optima Lithium ion Red Top Battery
Summit Racing Universal Battery Relocation (Trunk) Kit

BRAKES / SUSPENSION / WHEELS + TIRES:

Rays Nismo LMGT4 Wheels - 18 x 8.5 + 25
Kenda Kaiser KR20A 235/40R18 Tires
Yonaka Damper / Ride Height Adjustable Coilovers
R32 GTR Nismo Titanium Strut Tower Brace
GKTech R32 Caliper Bracket for 324mm Rotors
GKTech Stainless Steel Braided Brake Line Kit
Radium Master Cylinder Brace
DBA slotted 324mm rotors


EXTERIOR :

AH3 Cherry Red Pearl - Original Paint
Type M Side Skirts
Type M Rear Valance
R34 GTR Nismo Rear Wheel Flares
R32 GTR Carbon Fiber Lip

INTERIOR :

AEM Digital Boost psi Gauge
AEM Digital Volt Gauge
AEM Digital Air Fuel Ratio Gauge
AEM Digital Oil Pressure psi Gauge
AEM Digital Oil Temperature Gauge
AEM Digital Water Temperature Gauge
Nismo " old logo " Leather Shift Knob
R32 GTR OEM Aluminum Pedals
