3D Printable Camera Pan head & Digital turntable

This is the new Digital Bird Camera Turntable & Pan Head part of the Digital Bird camera motion control system which incorporates: Dual action slider, Pan Tilt head, Video turntable focus motor and Motorized mini jib all working together using a WIFI controller.
Any part of the system can also work independently through the WIFI controller.

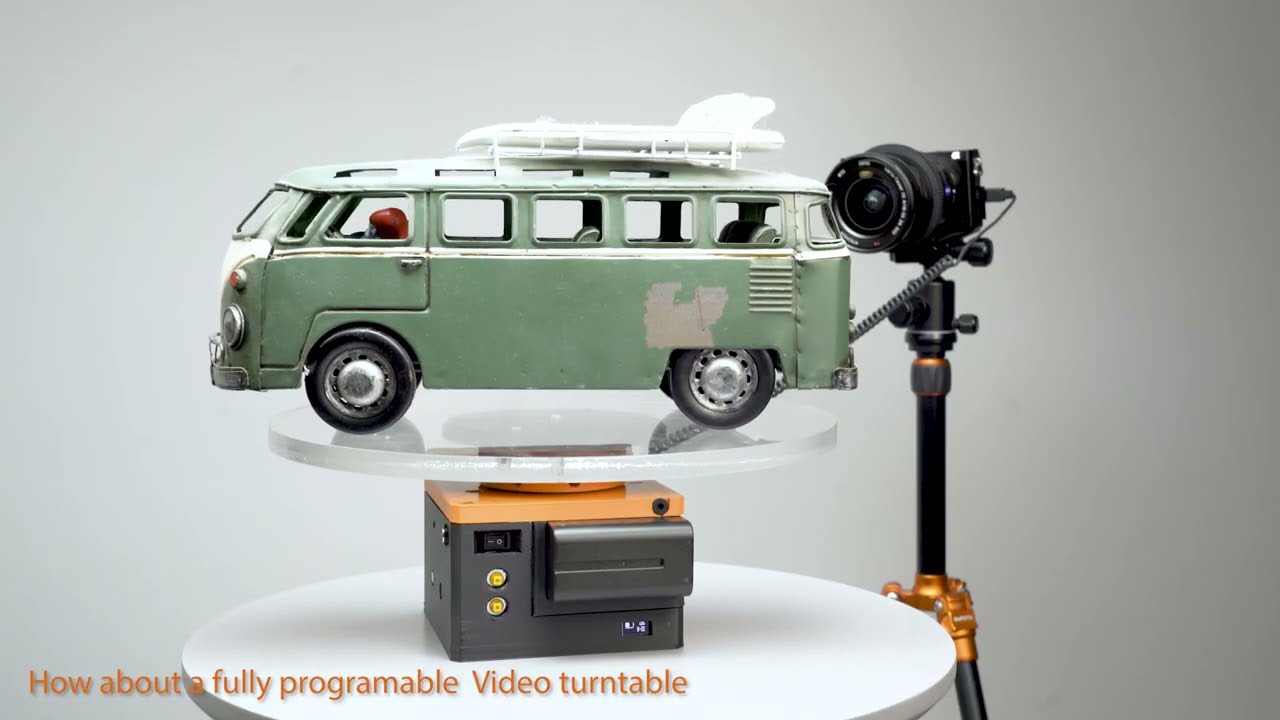

The Turntable is capable of moving up to about 10KG in weight and is perfect for product videos especially when working in harmony with the Camera slider and Pan Tilt head or mini jib.

As with the slider the Turntable uses a magnetic encoder behind the stepper allowing you to manually position where you want it to start and finish without the need for joystick or app control. In turntable mode having camera shutter control makes it perfect for photogrammetry (3D scanning) since it offers programable shutter control. The head will also be a part of the up coming Digital Bird mini Jib.

Turn the box on its head and you have a very functional Pan Head with auto Mount and dismount buttons capable of moving heavy camera setups.
The Turntable uses the same NP style batteries as the rest of the system.

Operating modes:
• A-B straight run
• A-B with acceleration controls (ramp/Ease)
• A-B-A Bounce mode
• Time-lapse mode with built in intervalometer and camera shutter control
• Six Key move sequencer for more complex moves
• Stop Motion Functions
• PTZplus real-time functions

Links:
3D printing files : https://www.thingiverse.com/thing:485...

Parts kits: https://digital-bird-motion-control.m...

Software: https://github.com/digitalbird01/Digi...

Music provided by: https://www.bensound.com

Credits:
This project makes particular use of two main open source arduino libraries for which I am very grateful.
gin66/FastAccelStepper A great resource for controlling multiple stepper motors with acceleration control on all steppers
Seithan/EasyNextion Library An easy to use method of setting up and actioning commands from the Nextion displays.
