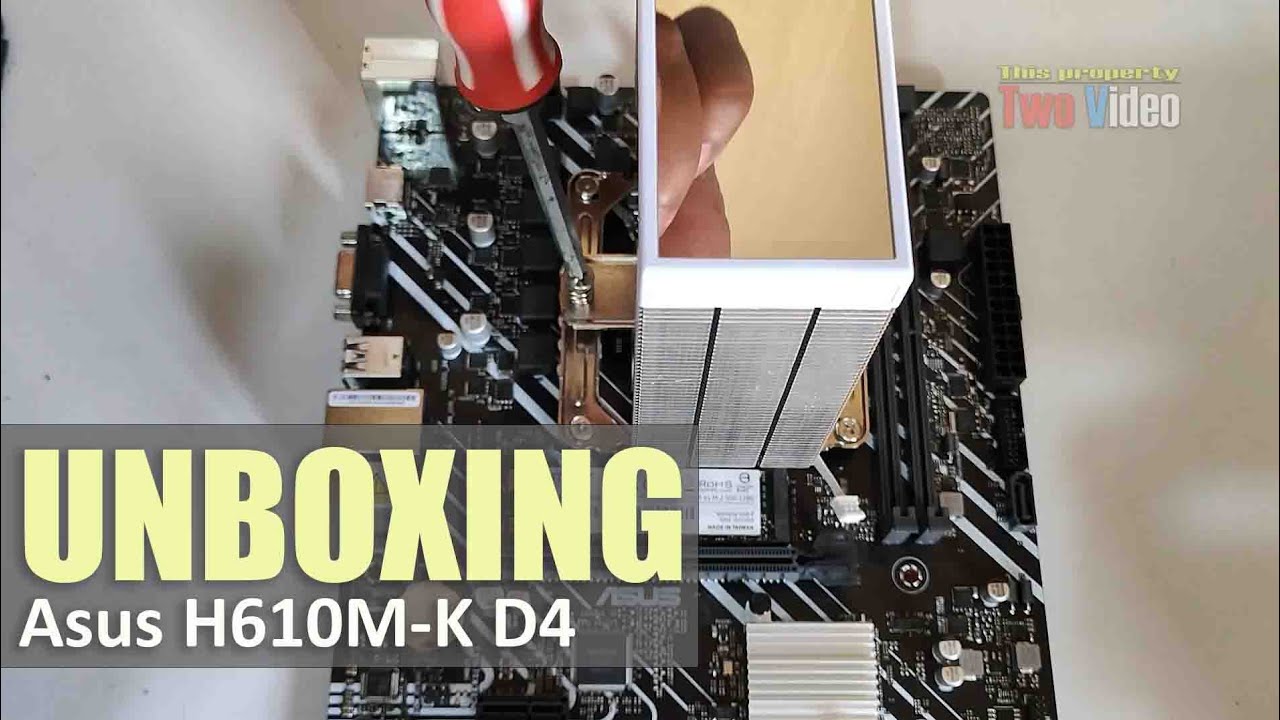

Intel Core i5 13400F Asus H610M-K D4

#TwoVideo #asus #i513400f #unboxing #motherboard

CPU
Supports 12th Gen , 13th Gen & (14th Gen i5,i7,i9) Intel Core Processors (LGA1700) , Pentium Gold and Celeron Processors*
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0

Chipset : Intel H610 Chipset

Memory
2 x DIMM, Max. 64GB, DDR4 3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports Intel Extreme Memory Profile (XMP)

Graphics
1 x D-Sub port
1 x HDMI port**
*Graphics specifications may vary between CPU types
*Supports 4K@60Hz as specified in HDMI 2.1

Expansion Slots
Intel 12th Gen Processors
1 x PCIe 4.0 x16 slot
Intel H610 Chipset
1 x PCIe 3.0 x1 slot

Storage
Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports
Intel H610 Chipset
M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)
4 x SATA 6Gb/s ports
The M.2 slot shares bandwidth with the SATA6G_4 port. When a device in SATA mode is installed on the M.2 slot, the SATA6G_4 port cannot be used.

Ethernet :1 x Realtek 1Gb Ethernet
BIOS :128 Mb Flash ROM, UEFI AMI BIOS
Operating System : Windows 11 64-bit, Windows 10 64-bit
Form Factor :mATX Form Factor
9.2 inch x 8.0 inch ( 23.4 cm x 20.3 cm )

Internal I/O Connectors
Fan and Cooling related
1 x 4-pin CPU Fan header
1 x4-pin Chassis Fan header
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
Storage related
1 x M.2 slot (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
1 x USB 2.0 header supports additional 2 USB 2.0 ports
Miscellaneous
1 x RGB header
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x S/PDIF Out header
1 x Speaker header
1 x SPI TPM header (14-1pin)
1 x 10-1 pin System Panel header
