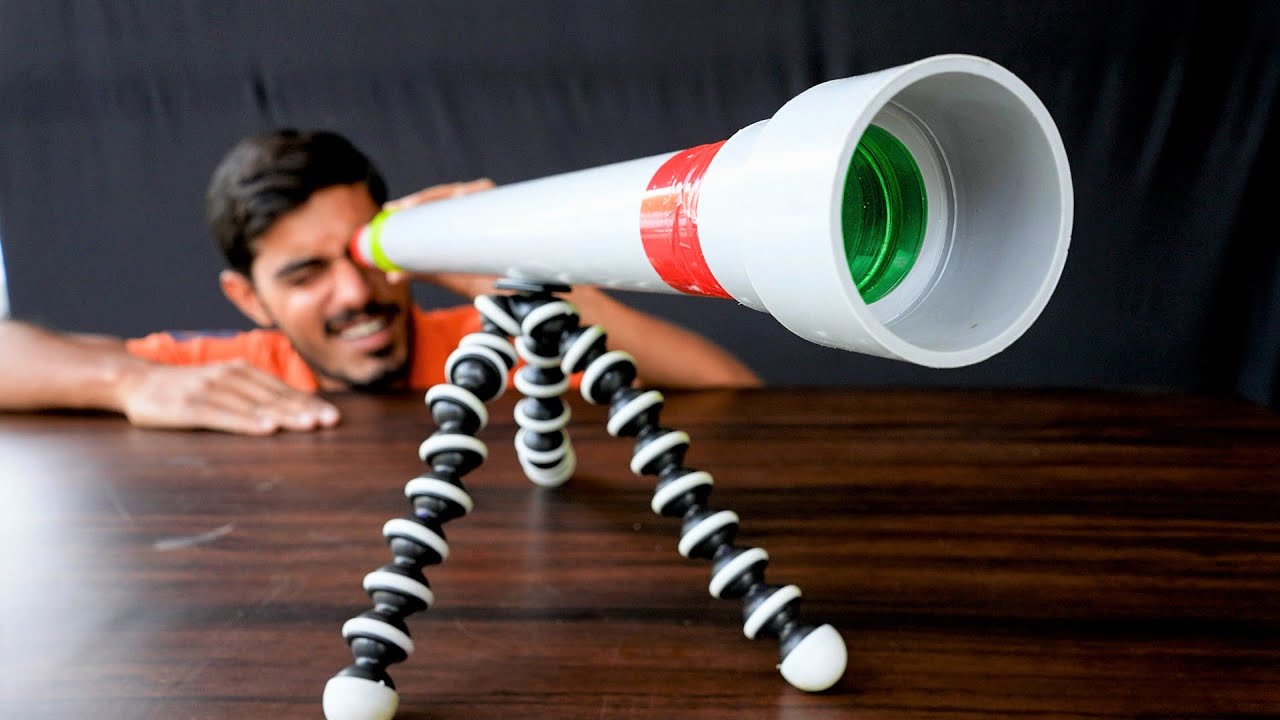

In this video, I will show you how to make a simple Refracting Telescope at home using PVC pipes. The purchase link for the lenses used is given below. No glue is used for making the telescope. Only masking tape is used for easy assembly and disassembly. Please pause the video screen whenever required as some frames of the video have so many details. Hope you will enjoy this video. Thank you for watching.
Please watch other videos too in this channel. Please like and share videos and subscribe to the channel for more interesting videos.

Purchase link for lenses: https://amzn.to/3xWDzpA

Parts used:

Lenses:
Achromatic objective lens - Dia 50mm & Focal length 700mm - 1No.
Eyepiece - Focal length 25mm - 1 set
https://amzn.to/3xWDzpA

Segment-1:
Dia 50mm (ID) PVC joint - 1No.
Dia 50mm (OD) x 500mm long PVC pipe - 1No.

(For every joint, the size given indicate Inner Diameter (ID), and for pipes, the sizes given indicate Outer Diameter (OD) and Length)

Note: If Dia 50mm pipe doesn't enter the Dia 50mm joint easily, then try heating the pipe end for 2-3 seconds and then push inside the joint. Heating shall be done without the lens in position as it may get damaged.

Segment-2:
Dia 40mm joint - 2Nos.
Dia 40mm x 220mm pipe - 1No.
Dia 40mm x 25mm pipe - 1No.
Dia 40mm to Dia 25mm reducer - 1No.
Dia 25mm x 160mm pipe - 1No.
Dia 25mm joint - 1No.

Others:
Dia 50mm joint & Screw (for mounting on tripod)
Tripod
Masking tape

Cost of making:
Lens set - INR Rs.1200/-
PVC pipes - INR ~Rs.100/-
Total cost - INR ~Rs.1300/-
Prices may vary.

-------------------------------------------------------------------------
