Buck Converter Circuit Simulation:
This video will show you how to simulate a buck converter in Altium Designer. Buck converters are commonly used for DC-DC conversion and can be found in many different types of power electronics. In this tutorial we will get an overview of the components that make up a buck converter, then set up our circuit as an Altium schematic from scratch!

Discussed Topics:
1. Buck Converter Circuit Simulation
2. Buck Converter Stimulation
3. Altium Designs

Altium Free Trial: https://www.altium.com/yt/kirschmackey
Design Doc: https://drive.google.com/file/d/1mA1i...


00:00 Intro

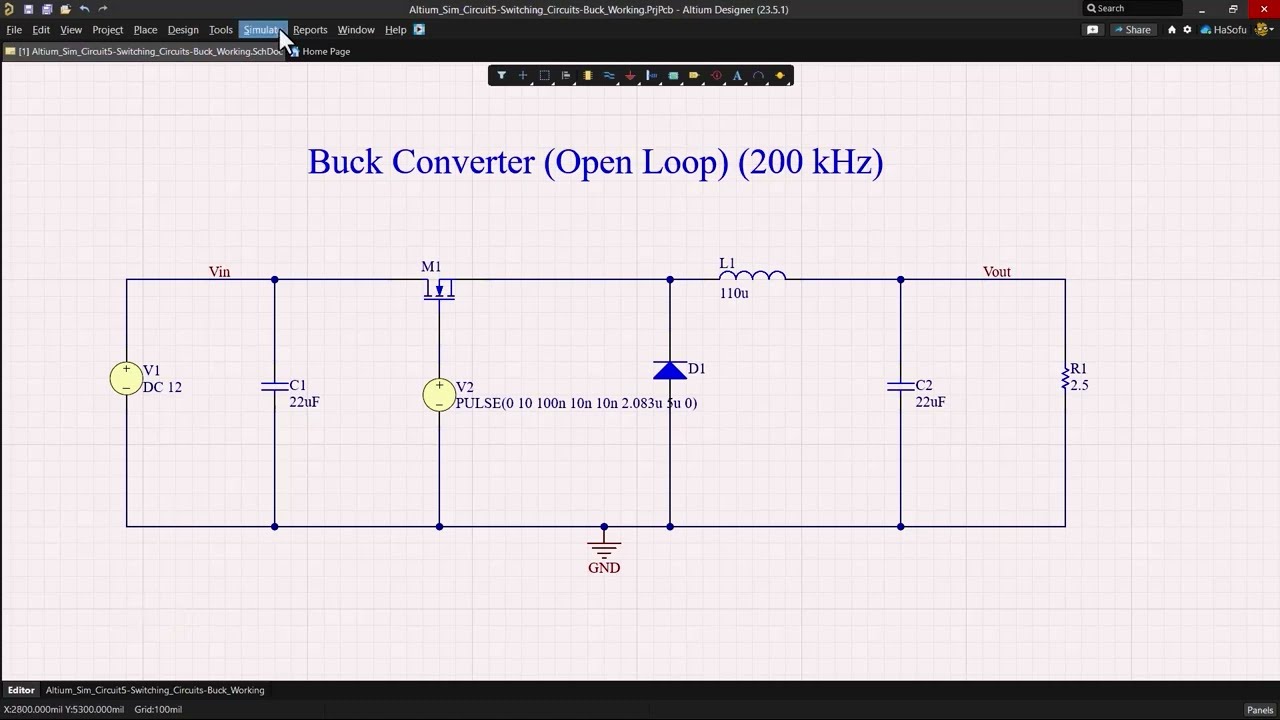

01:00 How to create a buck converter schematic
03:39 Setting parameters
06:51 How to annotate a schematic
07:18 How to simulate a circuit in Altium Designer circuit simulator
07:38 How to change simulation wave color in Altium Designer
07:49 How to place differential voltage probes in Altium Designer
08:22 How to do a transient simulation in Altium Designer
08:39 Troubleshooting simulation results
11:25 Ripple current and ripple voltage explained in simulation result
12:16 My personal buck converter projects
13:05 Closing statements
