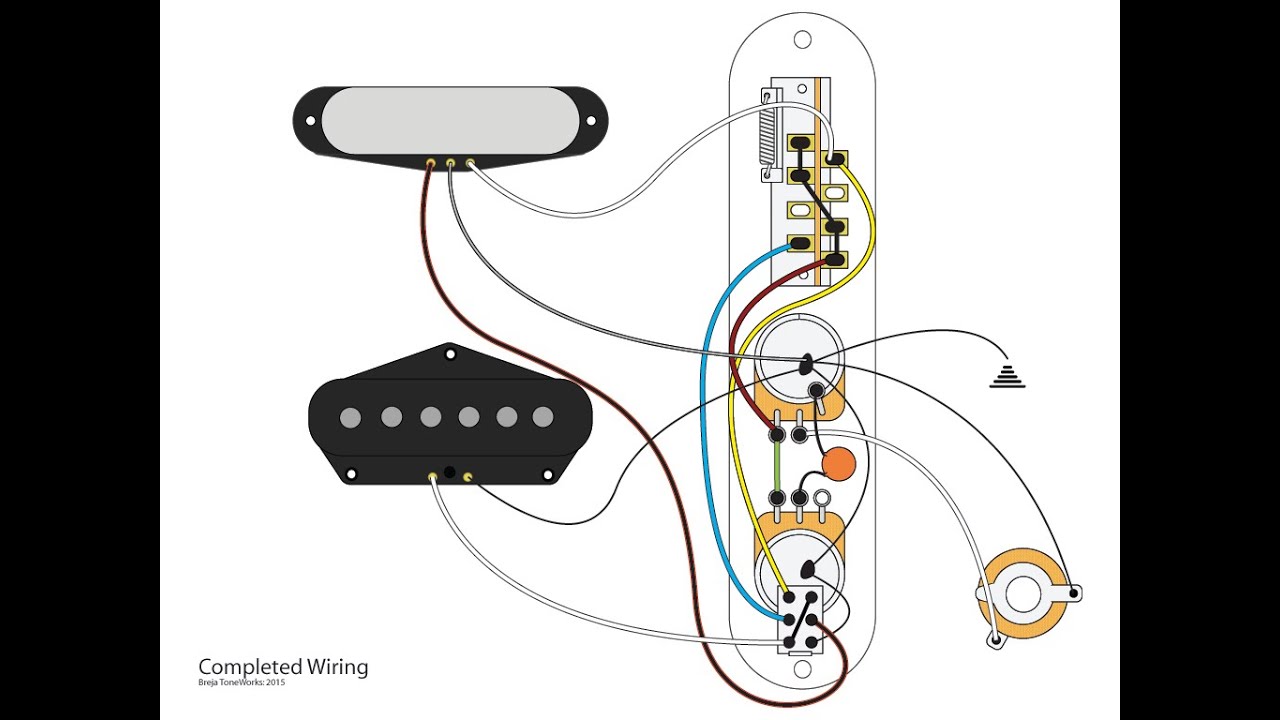

How to Wire a Telecaster 4 Way Switch

The Telecaster 4 Way Switch offer a powerful tone upgrade to a regular Telecaster, adding an extra position to your tone arsenal. With the switch in position 4 the pickups are wired in series, resulting in a full and fat tone. A series circuit feeds the signal of one pickup into the other, doubling up the signal which results in a boost-like quality to your Tele's guitar sound. The rest of the positions work the same as a regular Telecaster.

In this video Kev shows you how to wire a Telecaster 4 Way Switch from start to finish, explaining all the components you'll need and techniques required to undertake this task.
