Kingsbury | Hermle C 60 U MT | Heidenhain TNC 640 Control Unit

Improved metal cutting with up to 17% greater productivity, plus increased speed and accuracy.

Features and inclusions:
Traverse X-Y-Z: 1200 x 1300 x 900mm
Spindle speed: 9000/10000/12000/15000/18000rpm
Rapid traverse: 50m/min
Control unit: iTNC 530 / S 840 D sl

NC swivelling rotary tables:
Tables with torque: 900mm diam. / 1350mm diam. x 1100mm
Swivelling range: +/- 130 degrees
A/C axis speed: 15/30rpm
Max. table load: 2500kg

C60 U MT dynamic NC swivelling rotary table:
Control unit: TNC 640 / S 840 D sl
Table with torque: 1200mm diam.
Swivelling range: +/- 130 degrees
A/C axis speed: 15/400rpm
Max. turning table load: 1500kg
Max. milling table load: 2500kg

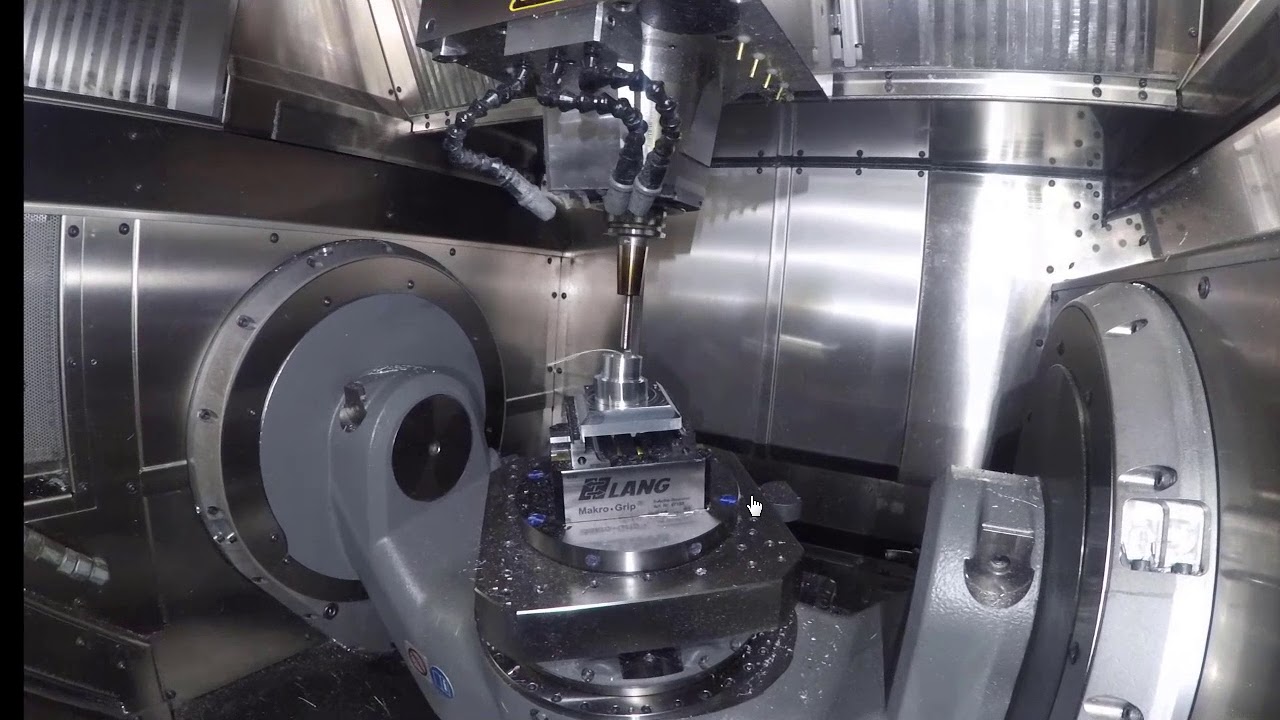

This mega machining centre is capable of machining up to 2500kg in 5 axes with a collision circle of up to 1400mm diameter. It also uses high-tech spindles with high torque or high speed values. The C60 requires no foundation and does not have to be disassembled before transportation.

________________________________

“Engineering Excellence" is at the heart of everything we do, from the people we employ and train, to the partners we work with, through to the service we deliver to our valued customers.

Complex manufacturing requirements demand an understanding of not just the production processes themselves but material flow, WIP, stock control, cash conservancy and ultimately ROI.

We fully understand these factors because we have been there ourselves. From our directors to our sales managers and beyond, our team were engineers first.
This wealth of expertise means we do not just sell machines, we are able to collaborate with our customers to create solutions tailored to their unique needs.
