Cross RC UC6 - Ural 4320 & off-road expedition

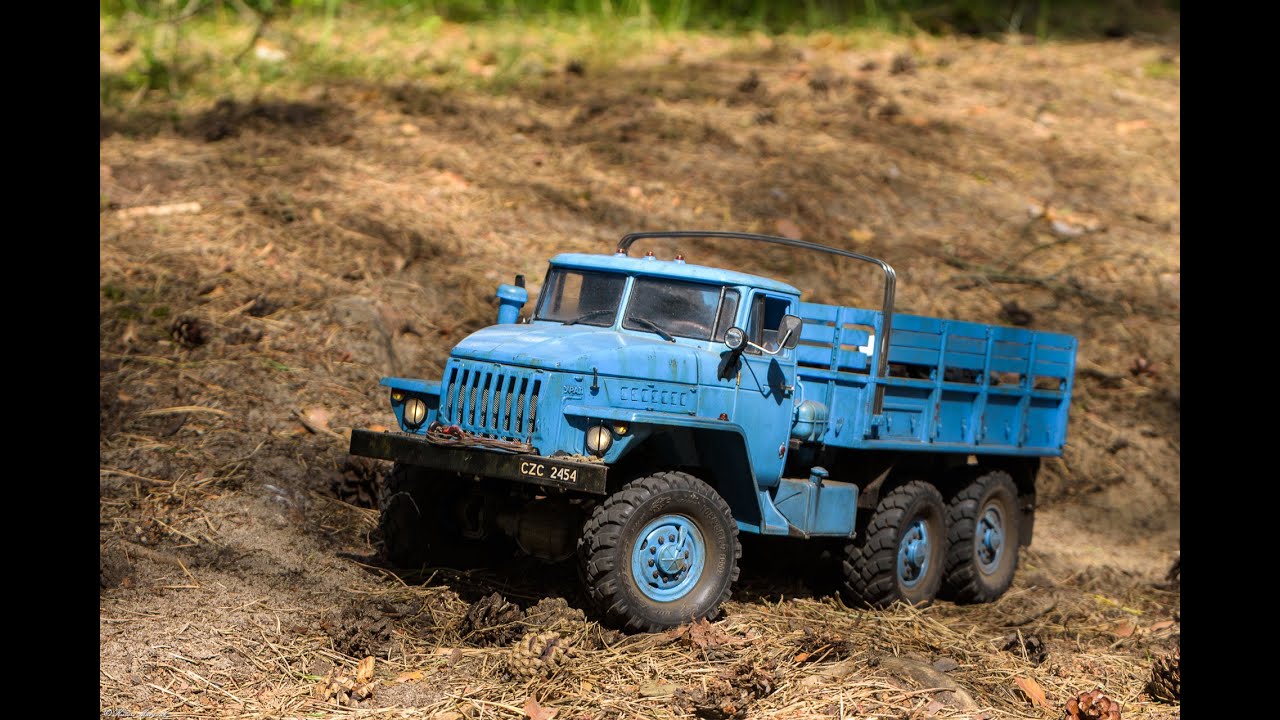

The truck is a Ural 4320 (Урал-4320) in 1:11 scale. The model was built from the Cross RC UC6 kit. More details in the description.

---------------------------------------------------------------------------------------------------------------------------

Technical data and used parts:
Length: 670 mm,
Width: 245 mm (with mirrors),
Height: 245 mm (270 mm with tarpaulin),
Weight: 7,2 kg/15,65 LB. (with Lipo 2S)
Engine: Surpass Hobby 5-Slot 550 20T (brushed),
Two-speed gearbox Cross RC, 11T rack on the motor shaft,
Battery: Lipo 3S 11,1 V,
ESC: HobbyWing Quic Run 1080 80A,
Transmitter: Radiolink RC6GS V2,
Receiver: Radiolink R7FG v1.3,
Steering servo: DS3235SG 180 ° 35 kg (Coreless Digital Servo),
Servo gears: DS3225SG 180 ° 25 kg (Coreless Digital Servo),
Light module: Cross Rc + Das Mikro TBS Mini,
Sound module: Das Mikro TBS Mini, two 4Ohm 3W speakers (from the Cross RC kit) and 4Ohm 3W connected in series, which gave a total of 8Ohm.
Varnish: Granit Quality Parts RAL 5012 + Boll clear varnish VHS (both two-component)
The cables at the lamps and the rear lamps have been taped with black silicone.

My other projects can also be viewed on Flickr:
https://www.flickr.com/photos/kolekcj...
________________________________________________________________________
Camera: Go Pro Hero 8 black,
Video processing program: OpenShot Video Editor
