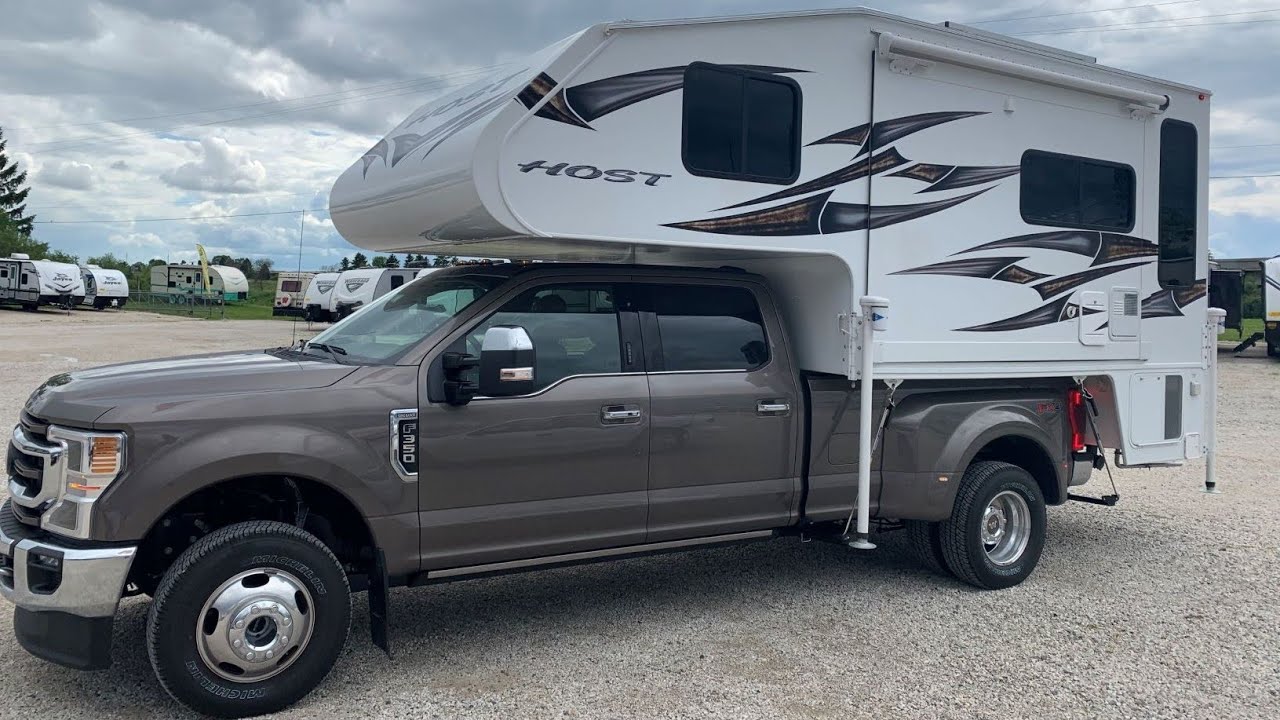

Technician Tour - HOST Mammoth

TYPE Triple Slide-Out, Side Entry
BASE WEIGHT 3955 lbs.
WIDTH 96″
EXTERIOR HEIGHT 113″ – 118″ w/air
INTERIOR HEIGHT 78″
FLOOR LENGTH 136″
OVERALL LENGTH 19′ 3″
FRESHWATER 65 Gallons
GREY WATER 51 Gallons
BLACKWATER 32 Gallons
LPG CAPACITY 15 Gallons
FURNACE 25,000 BTU
WATER HEATER 6 Gallon Gas DSI
SEASON 4 Season

CONSTRUCTION
Ultralite 100% Aluminum Structure
Complete Fiberglass Exterior w/Exterior Graphics
Vacuum Bonded Foam Insulated walls, Floor & Ceiling
One-Piece TPO Roof
Large Radius Cornered Windows w/Int. Fasteners

INTERIOR FEATURES
Cabinets w/ Raised Panel Doors
Large 3 Burner Range
Double Door 2-Way 8 CU FT Refrigerator
Extended Cab w/60 x 80 Queen Bed & Bed Spread
12 Volt LED Interior Lighting System
Adjustable Reading Lights in Bedroom
Grani-Coat Solid Surface Countertops
Folding Stove Top Cover
Fantastic Fan
Pleated Shades

CONVENIENCE FEATURES
Slide-out Awning Toppers
Radius Entry Door w/Window & Flush Mount Lock w/DeadBolt
Screen Door w/Kick Panel
24″ Exterior Grab Rail
12 Volt LED Patio Light w/Interior Switch
Skylight Roof Vents w/Screens
Large J-Rail Rain Gutters
Enclosed Service Center
Clearance Lights
Access Panels for Slide-Out Motors, Water Tank & Holding Tanks
30,000 BTU Forced Air Furnace
Water Heater – 6 Gallon DSI Gas
Built-in Interior Entry Step
Enclosed, Heated, Holding Tanks
Bathroom Power Vent
Winterization System
Exterior Shower

EXTERIOR FEATURES
Radius Insulated Locking Ext. Storage Compartment Doors
Recessed Automotive Taillights w/Backup Lights
POWER SYSTEMS & SAFETY FEATURES
Electric Jacks w/ Wireless Remote
45 Amp AC/DC Power Converter w/Battery Charger
RV Systems Monitor Panel
GFI Circuit Protection
Smoke, LPG Leak & CO Detectors
Fire Extinguisher
Heavy Duty Camper Tie Down Brackets
Freeze Resistant 1/2″ Color-Coded Water Lines

OPTIONS AND EXTRAS
Smokey River Package
Pecan Package
Rear Slide-Out w/Sofa (Cascade, Everest & Mammoth)
Kitchen Wall Slide-Out (Chinook, Aspen, Aspen SB, Shasta, Everest & Mammoth)
Ultra Leather on Sofa & Dinette
Flip-up footrest (under the couch)
Overhead Bunk
Upgraded Escape Hatch
Insulated Windows (standard in 2015)
Insulated Windows w/ Solar Cool Glass
9,000 BTU Air conditioner (for use with a 2,000-watt portable generator)
11,000 BTU Low Profile Air Conditioner
DSI Gas/Electric Water Heater w/ Remote Switch
150 Watt Solar Panel w/Dig. Monitor System
Dual Batteries
Satellite Dish w/ Digital Elevation Sensor
Automatic Satellite Dish w/ GPS
24″ Flat Screen TV w/Swivel Arm, Antenna, Power Ports (Main TV)
2nd (inside) 24″Flat Screen TV w/ Swivel Arm or Mount, Power Ports
32″ Flat Screen TV w/ Inverter, Antenna, Power Ports, (Main TV Mammoth Only)
Outside Entertainment center w/ 24″ Flat Screen TV
AM/FM/CD/DVD w/ alarm clock, & 4 Speakers
Exterior Speakers
Microwave Oven
Microwave/Convection Oven
3 Burner Range w/Oven (3 burner cooktop w/ no oven standard)
Thetford sealed (3) Burner Euro Series Cook Top with Glass Cover
Rear Wardrobe (Everest Only)
Pillow Shams
Accordion Privacy Bedroom Door
Swing Out Jack Brackets
Power Rear Awning w/ LED Lights (Chinook, Shasta, Aspen)
Power Passenger Side Awning w/ LED Lights (Aspen SB, Cascade, Everest, Mammoth)
Storage Bay Slide-out Tray (Aspen SB, Aspen, Cascade, Everest, Mammoth)
120V Simulated Fireplace w/ 750/1500 Watt Heater ( Mammoth Only)
Rear View Camera
Plumb for BBQ

All weights and measurements are approximate and subject to change
