Vacuum Hose 1973 Mustang 302 Distributor Advance, Auto Trans Modulator, EGR
Автор: Gilbert Hale
Загружено: 2020-09-21
Просмотров: 18947

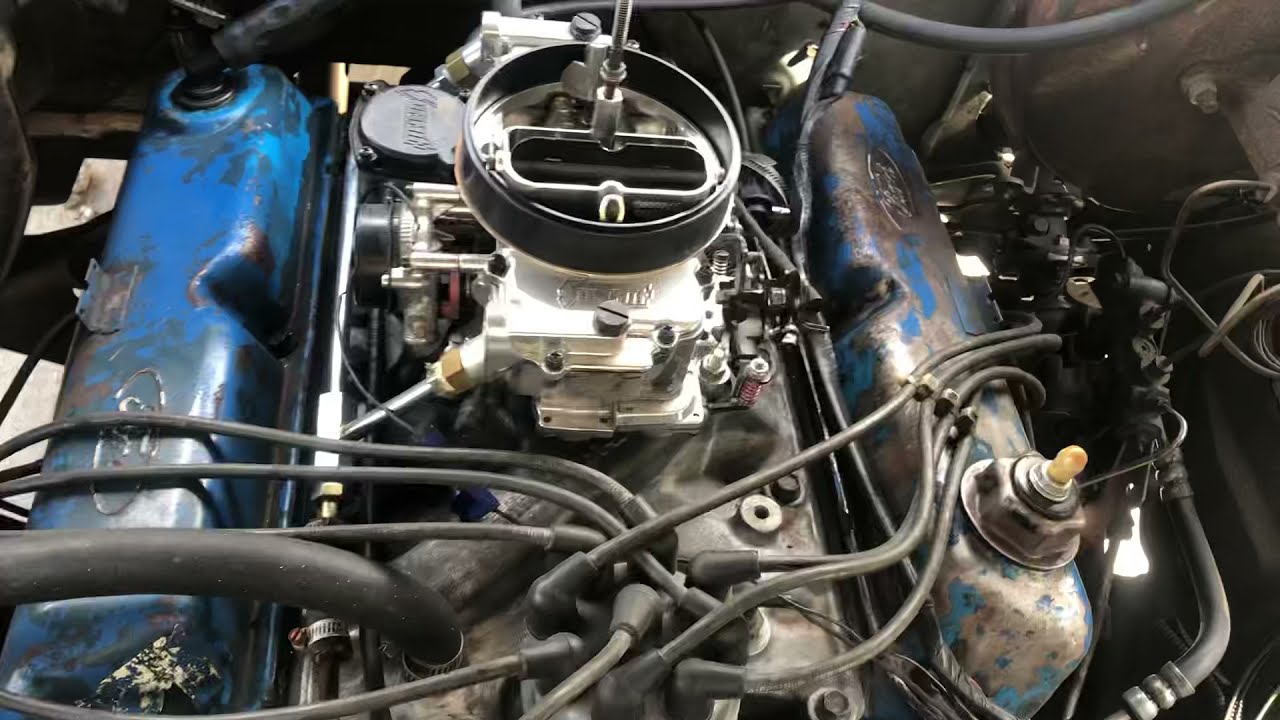

In this video a 1973 Mustang with a 302 V-8 and automatic transmission is used to show how the distributor vacuum advance, EGR, and automatic transmission modulator are routed from within the engine compartment near the carburetor. The same Mustang with a 302 and manual transmission differs in a few ways. First, the vacuum advance diaphragm is a dual diaphragm design. And, it turns out in the auto tranny calibration a single ported outlet from the carburetor is used for the EGR, tranny modulator, and distributor vacuum advance actuating. For the manual tranny the carb has two separate ports, one for the EGR and the "back side" of the vacuum advance canister on the distributor, and one for the distributor vacuum advance diaphragm's main connection.
Following is a link relating to 1973 Mustang 302 engines with automatic transmissions showing vacuum system diagrams, and where the emission control systems can be altered IF anyone were to want to do so (not recommended):
https://drive.google.com/file/d/1MMCK...
Here are some related videos on the topic of transmission vacuum modulators:
• 3-1973 Mustang Ported And Intake Manifold ...
• 1973Mustang Vacuum Test Automatic Transmis...
• 1973 Mustang Auto Tranny Vacuum Modulator ...
