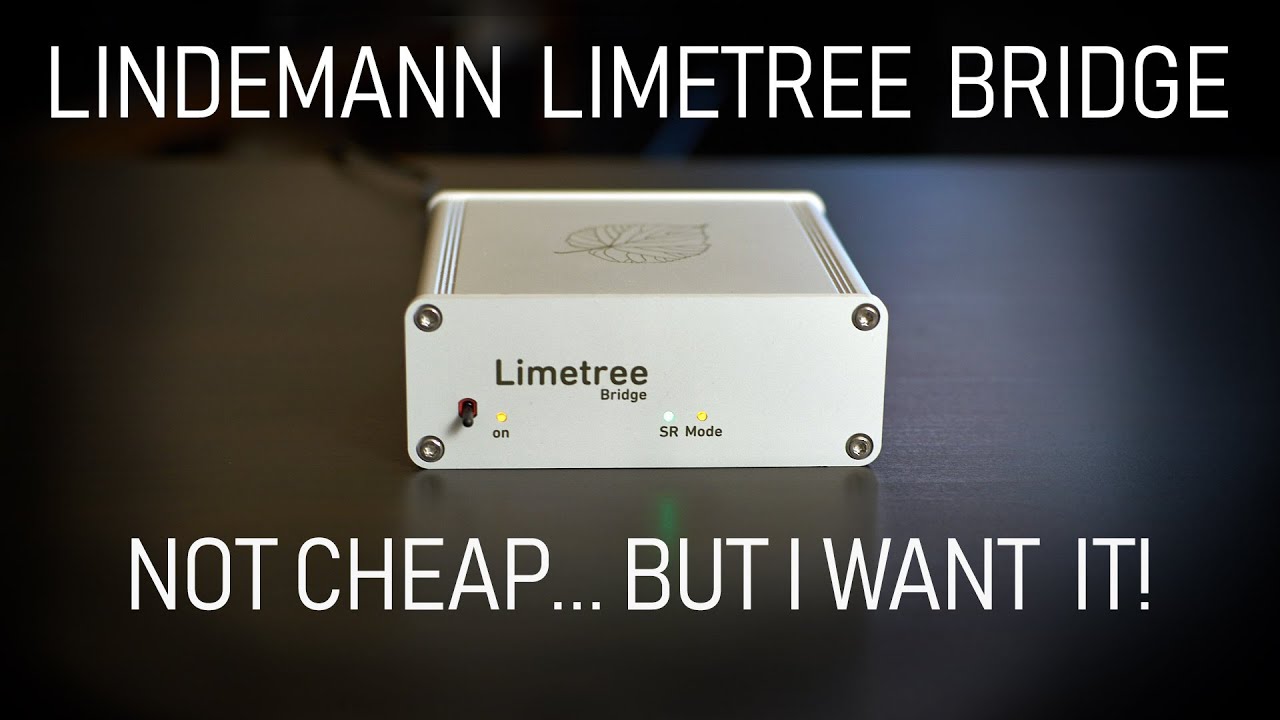

Lindemann Limetree Bridge Streamer Review
Автор: WillBrink
Загружено: 2021-04-03
Просмотров: 3022
The Lindemann Bridge Streamer allows you to use an external DAC to stream music. Here's my review and advice.
Source:
https://lindemann-audio.de/?lang=en
Where to purchase in the US:
https://cruxaudio.com/
Review of the Marantz NA6006
• Marantz NA6006 Review + Should You Stream?
Review of the Anthem STR Integrated Amp:
• Anthem STR Integrated Amp Review
General and Tech Info For Bridge Streamer:
The circuitry of the Limetree BRIDGE – designed around the powerful streaming platform – has been tuned for optimum signal quality. All music files are post-synchronized by an ultra precise FemtoClock. The data processed in this way are free from “jitter“, the most frequent cause of a poor digital playback quality. When output over the digital outs, the DSD data are automatically converted into high-resolution PCM data so that owners of older DACs can also enjoy high-res media of all kinds. With many older DACs the Limetree BRIDGE’s exceptionally low-jitter digital signal produces an audible increase in sound quality. For the power supply we use a high-quality “medical grade“ wall plug transformer which ensures a particularly good isolation from line disturbances. Owing to the elaborated onboard filtering and special voltage regulators, we were able to realize an exceptionally low-noise power supply with a ripple voltage below 10 µV.
Technical specifications
Power consumption: 0.1 W standby, 3.5 W operation, 8 W max.
Dimensions (W x H x D): 107 x 40 x 107 mm (4.2 x 1.6 x 4.2 in)
Weight: 300 g (0.66 lbs)
Power supply: 5V DC
Digital outputs
RCA coaxial 75 ohms: max. resolution 192 kHz, 24 bit
TOS optical: max. resolution 192 kHz, 24 bit
Clock: Ultra low jitter MEMS FemtoClock
Mode 1: PCM is output as 88.2 kHz or 96 kHz, DSD is output as PCM 88.2 kHz
Mode 2: PCM is output as 176.4 kHz or 192 kHz, DSD is output as PCM 176.4 kHz
Network Bridge
Ethernet: 100 Mbit/s
WLAN: dual-band 802.11a/b/g/n/ac
Bluetooth 4.2
USB 2.0 high-speed host interface, max. output current 1.5 A
Supported codecs: WAV, FLAC, AIFF, ALAC, MP3, AAC, Ogg Vorbis, WMA, DSD
UPnP and DLNA support PCM resolution: 44.1 kHz up to 384 kHz, 24 bit (WLAN up to 192 kHz)
DSD resolution: DSD 64 up to DSD 256 (WLAN up to DSD 128)
Gapless playback Streaming services: TIDAL, Qobuz, Deezer, HighResAudio, Spotify
Internet radio and podcast
