Drafting Ellipse in AutoCAD for Engg Graphics | Dubbed in all Languages

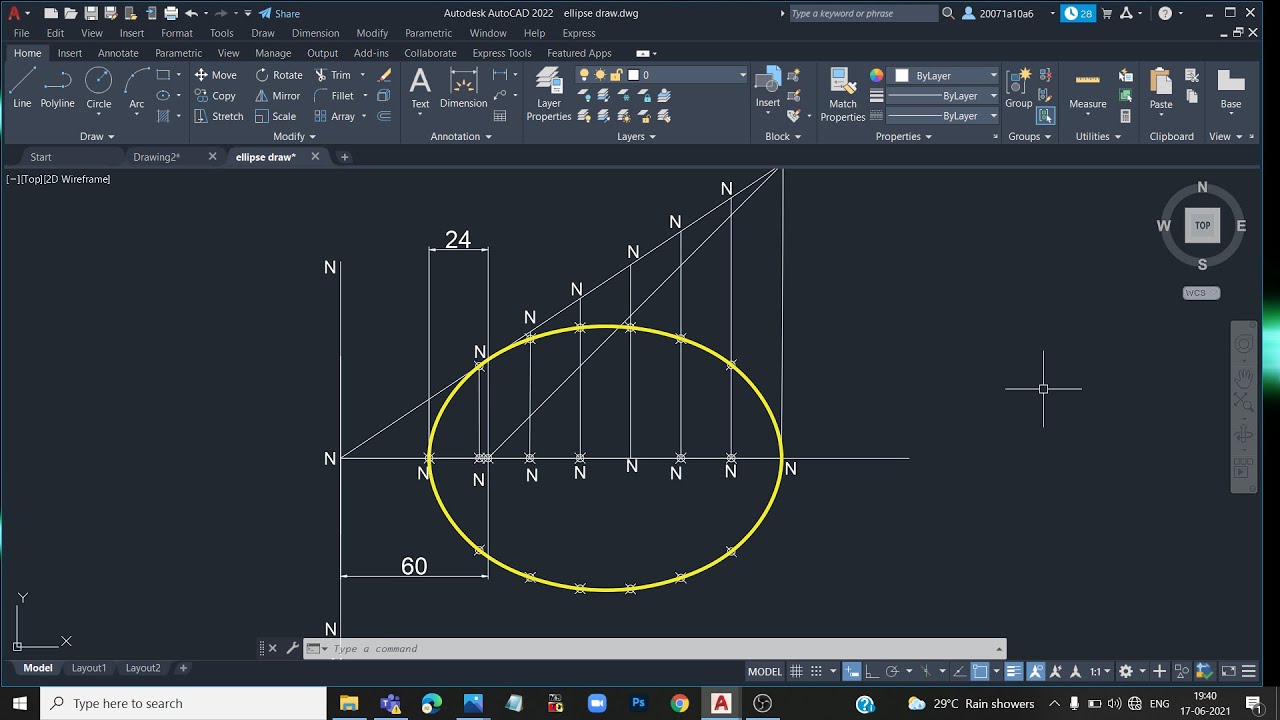

Unlock the power of conic sections with this in-depth tutorial on drawing an ellipse using the General Method (Eccentricity Method)! In this video, we break down how to use eccentricity to construct an ellipse, one of the most fundamental shapes in geometry and engineering. Whether you’re a student, educator, or professional in Mechanical Engineering or Computer-Aided Design (CAD), this method offers clear, step-by-step guidance.

🔹 Download Template for Practice
Practice along with our free template! Get it here:
https://drive.google.com/file/d/1KlPv...

🔹 Explore the Complete Series
Dive into more tutorials in this series! Check out the full playlist:
   • 1 How to Download Educational Version of A...

Chapters Covered
00:00 - Problem definition
01:58 - Draw Directrix, Axis and Focus
02:53 - Draw eccentricity line
05:48 - Draw equidistant vertical lines
06:23 - Mark the points P1, P2, etc...
10:31 - Mirror the points on the other side of axis
11:44 - Draw the ellipse
13:01 - Description of the important points on ellipse
13:30 - Draw tangent & normal

---
